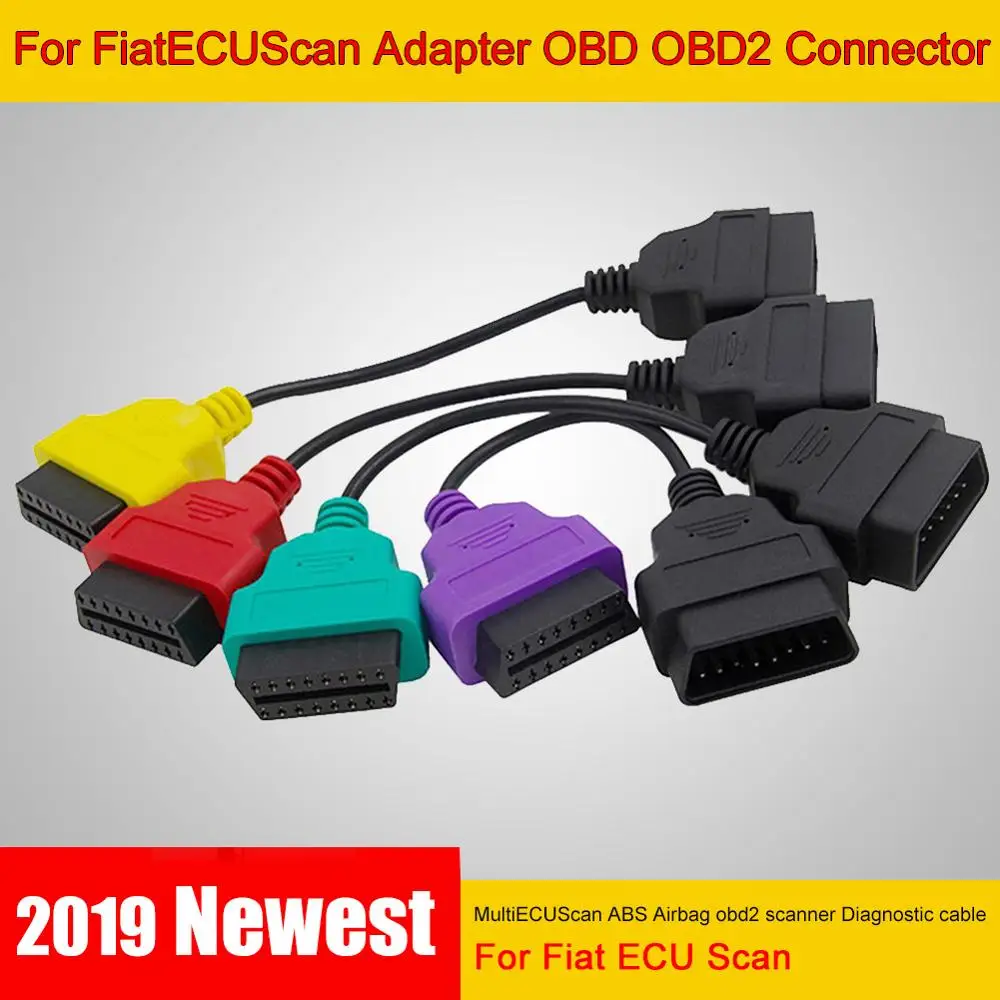

2019 Newest For FiatECUScan Adapter OBD OBD2 Connector MultiECUScan ABS Airbag obd2 scanner Diagnostic cable for Fiat ECU Scan

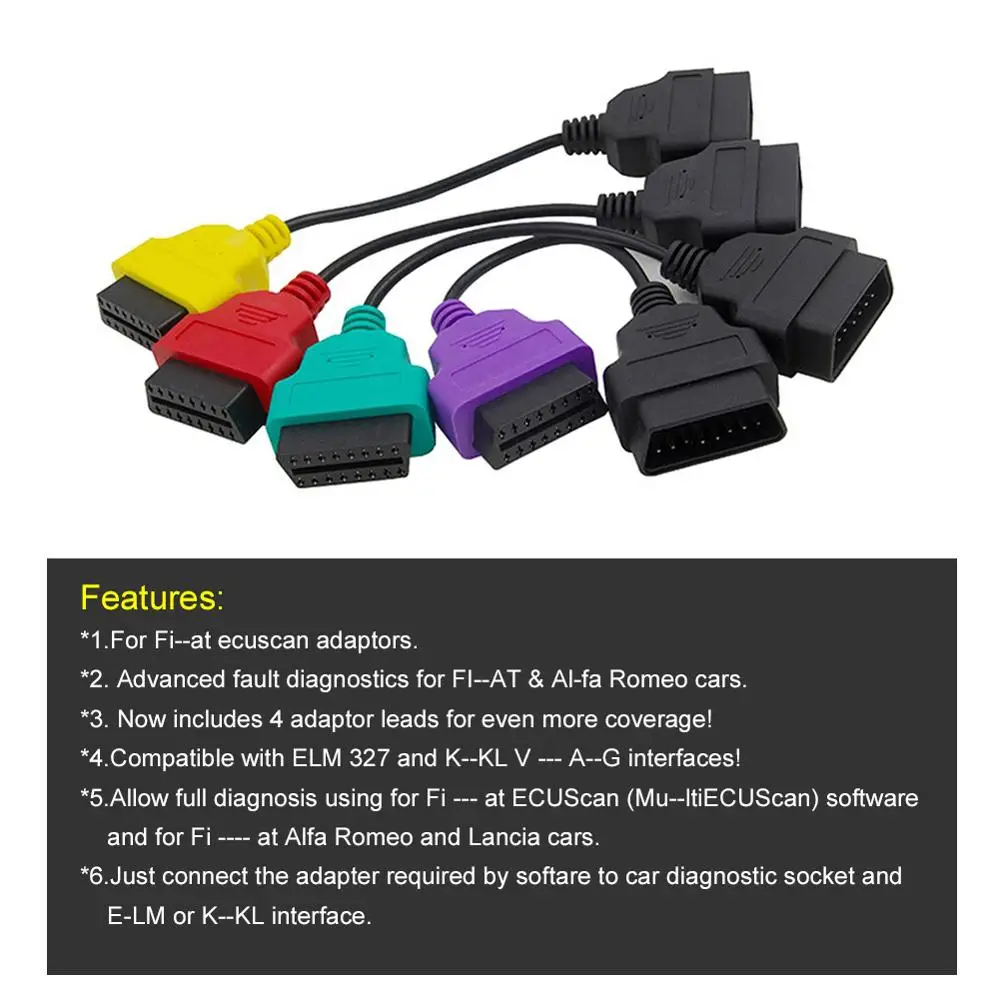

Features:

*1.For Fi--at ecuscan adaptors.

*2. Advanced fault diagnostics for FI--AT & Al-fa Romeo cars.

*3. Now includes 4 adaptor leads for even more coverage!

*4.Compatible with ELM 327 and K--KL V --- A--G interfaces!

*5.Allow full diagnosis using for Fi --- at ECUScan (Mu--ltiECUScan) software and for Fi ---- at Alfa Romeo and Lancia cars.

*6.Just connect the adapter required by softare to car diagnostic socket and E-LM or K--KL interface.


Specification:

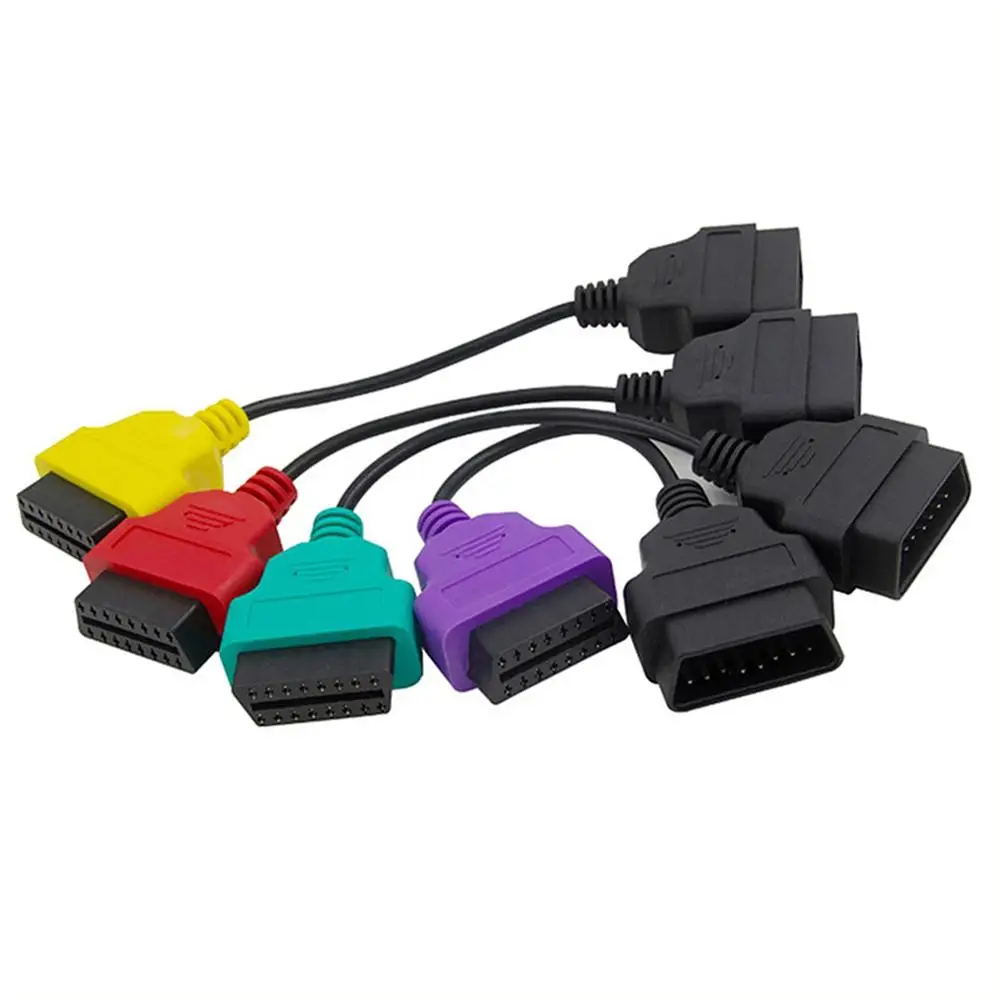

There are 4 adaptor cables included which perform different functions.

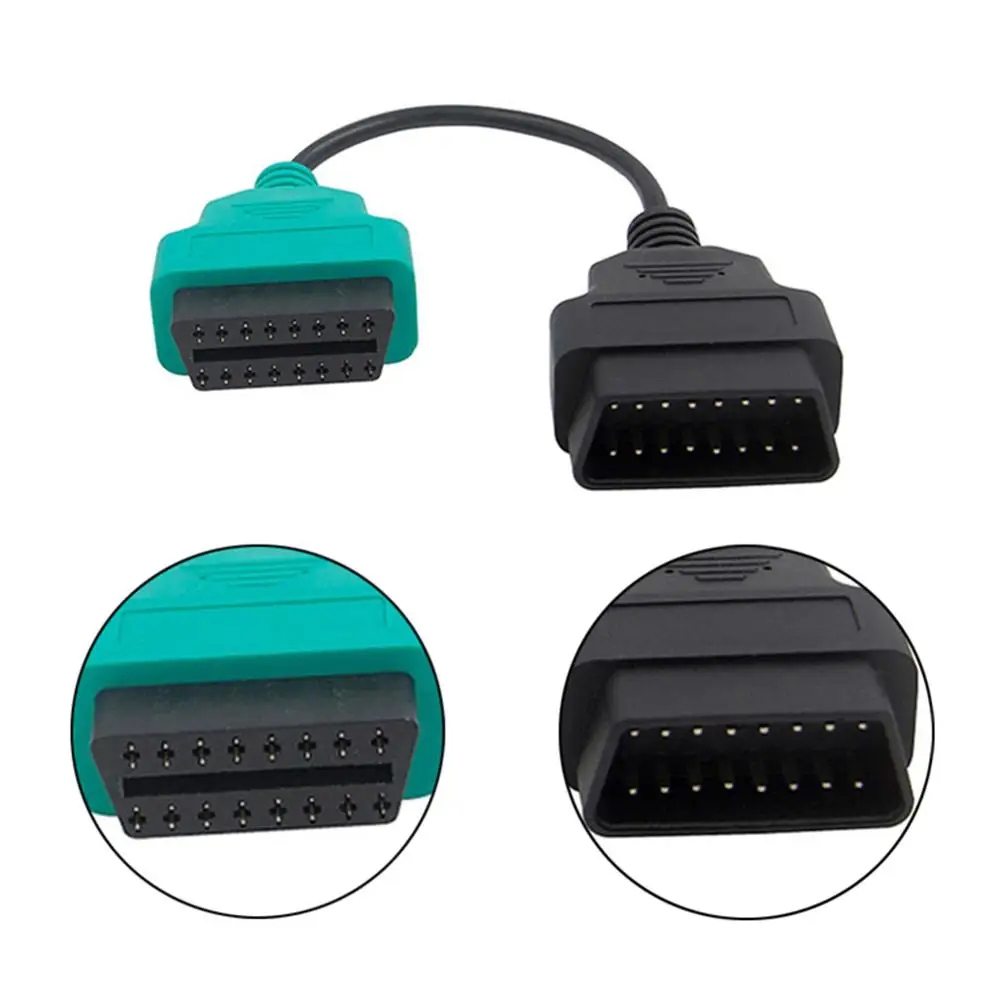

1.Green ABS / Power Sreeing adapter lead ("Adapter 1" on MultiECUScan website)

-Designed to allow access to the ABS and Power Steering systems on supported vehicles. This adapter has a green connector on one end for easy identification.

Using this adapter, Pin 7 on the diagnostic tool is connected to Pins 1,7,9 & 12 on the car.

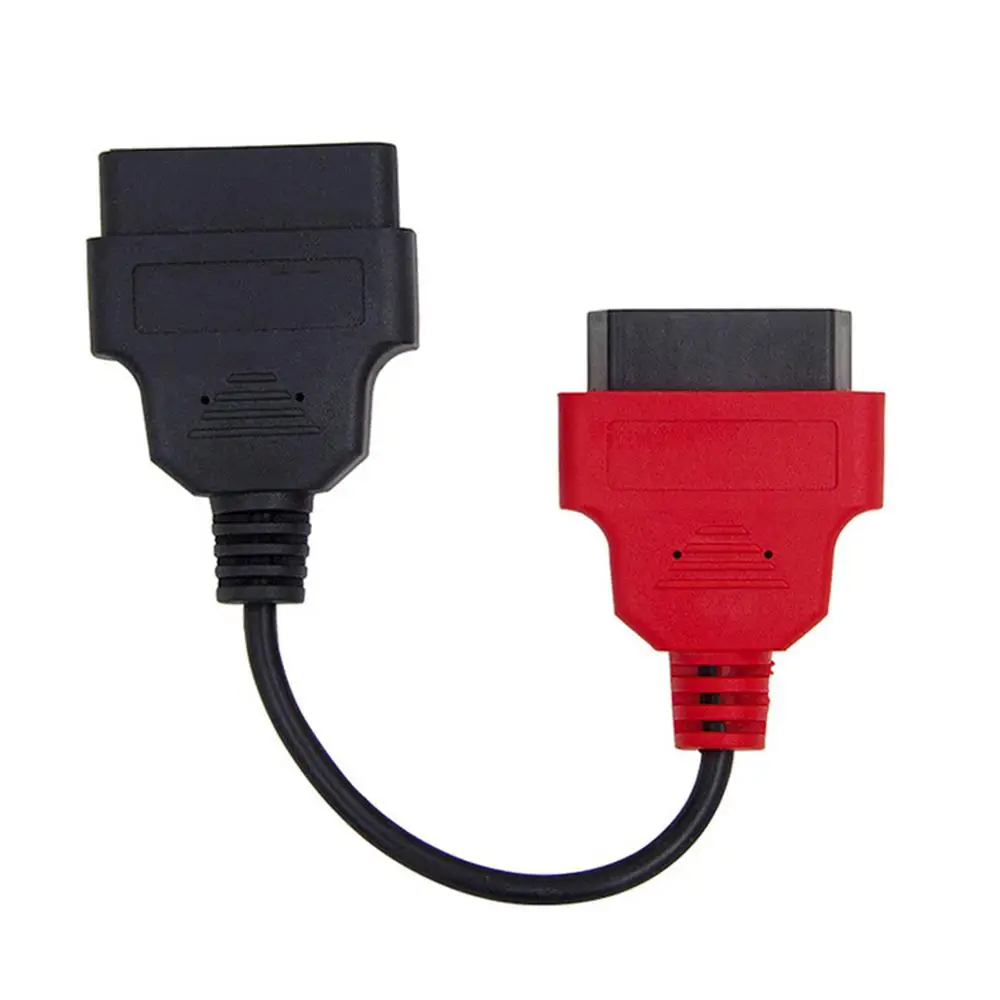

2.Red Airbag adapter lead ("Adapter 2" on MultiECUScan website)

-Designed to allow access to the Airbag system on supported vehicles.

This adapter has a red connector on one end for easy identification.

Using this adapter, Pin 7 on the diagnostic tool is connected to pin 3 only pn the car.

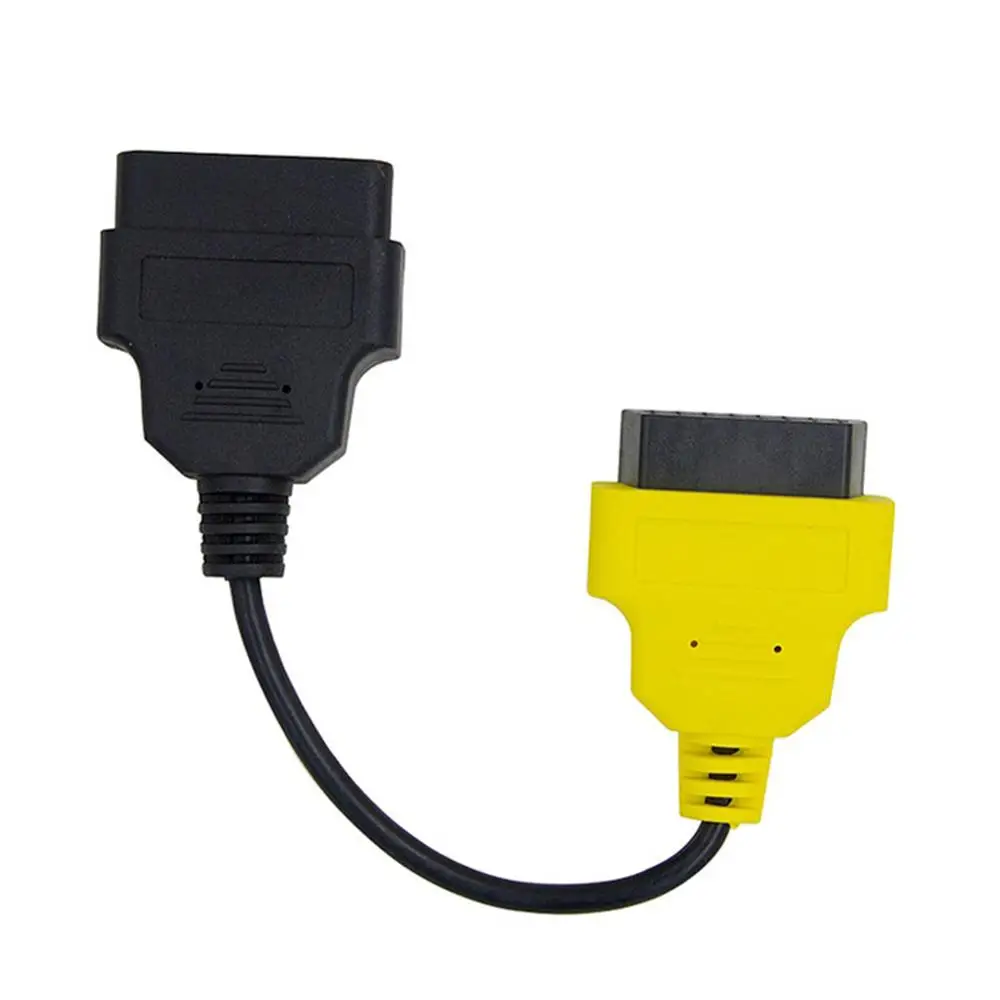

3.Yellow CAN adapter lead ("Adapter 3" on MultiECUScan website)

-Designed to allow access to the low-speed CAN system on supported vehicles.

This adapter has a yellow connector on one end for easy identification.

Using this adapter, Pin 6 & 14 on the diagnostic tool are connected to pins 1 & 9

Respectively on the car, Pin 7 on the diagnostic tool is connected to pin 12 on the car.

4.Purple Electric hood adapter lead ("Adapter 4" on MultiECUScan website)

-Designed to allow access to the electric hood system on supported vehicles.

This adapter has a purple connector on the end for easy identification.

Using this adapter, Pin 7 on the diagnostic tool is connected to pins 7,8,11 & 13 one the car.





Technical Details:

Advised by MultiECUScan / for FiatECUScan diagnostic software

Compatible with ELM327 or / and KKL (for VAG COM)

4 x 16 Pin OBD Cable Adaptors

See MultiECUScan / for FiatEcuScan website for a full list of supported vehicle


Product List:

4 x 16 Pin OBD Cable Adaptors


Precautions:

1. All pictures have been professionally calibrated, but due to the ambient light and different display device settings, the pictures and items you see may have some deviations, please forgive me.

2. The data is manually measured, there may be some deviations, but it does not affect the use.
