DASH Brand New EL Glow Gauge for EURO Spec E90 E92 280km 8000 RPM Black Panel Reverse White Light 325i 328i 330i 335i | Автомобили и

DASH Brand New EL Glow Gauge for EURO Spec E90 E92 280km 8000 RPM Black Panel Reverse White Light 325i 328i 330i 335i | Автомобили и

Things you need to know before buying:

1. Frequency Noise

-The natural color of EL (electro-luminescent ) is between blue and green, we design the inverter with high and low frequencies, the high frequency will emit the EL to glow blue color, and the low frequency will emit EL to glow green color. A switch on the dimmer allows you to change frequency /color. However a disadvantage of the design for blue glowing will cause high frequency noise. There is no solution to remove the noise but can minimize the noise by decreasing the brightness or switching to green light section. If the glow gauge is white light, the high frequency will emit cold white, and low frequency emits warmer white light. Before purchasing this item, please consider this fact.

2. Product condition

Make sure the item is Brand New item or Stock clearance item.

A listing price at US$10 is usually mean it's the clearance item, which is unused, but is stocked more than 3 years. You need to be aware of this kind of product is with surface flaws and may look old, but we assure the glowing is normal. If you expect a brand new product, please do not purchase the stock clearance item.

3. Check the specification carefully (send us a picture of your original gauge, we can help you to check)

The product picture we put on the listing page is exactly the thing we will ship.

Please compare with your original gauge and make sure they are the same.

Check below things match our description and make correct selection.

- Car model and engine type.

- Maximum speed and RPM

- Right steering or Left steering car.

- Automatic or Manual transmission.

for

for 3 series E92 (325i, 328i, 330i, 335i)

Maximum speed: 280km,

Maximum RPM: 8000

Oil temp: 70 ~170 centigrade

Package inlcudes 1 set EL glow gauge  and 1 piece inverter

Product condition: Brand New item.

This gauge is with speedometer in KMH (Km/hr)

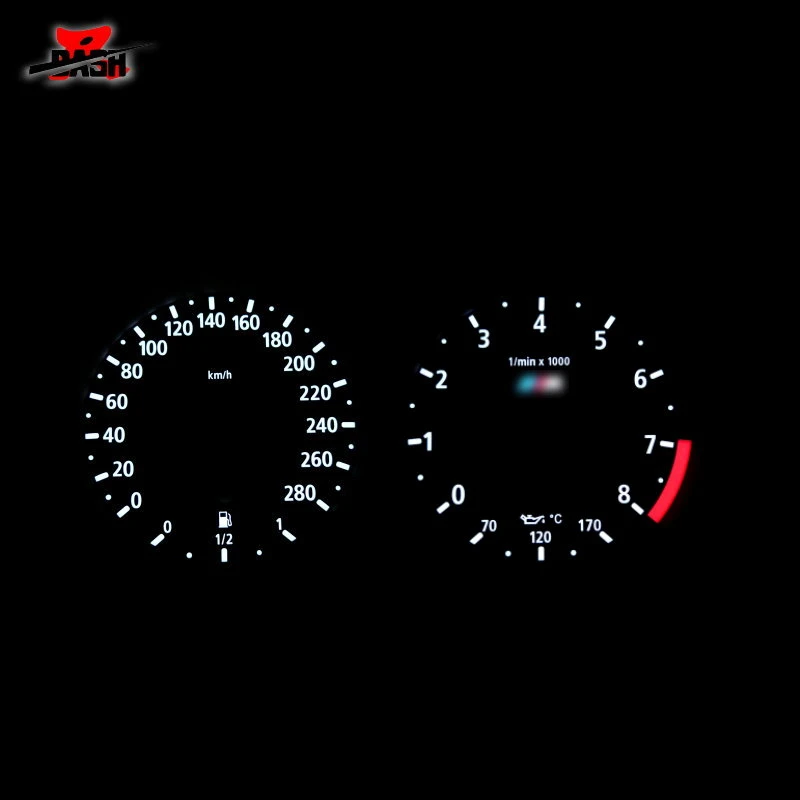

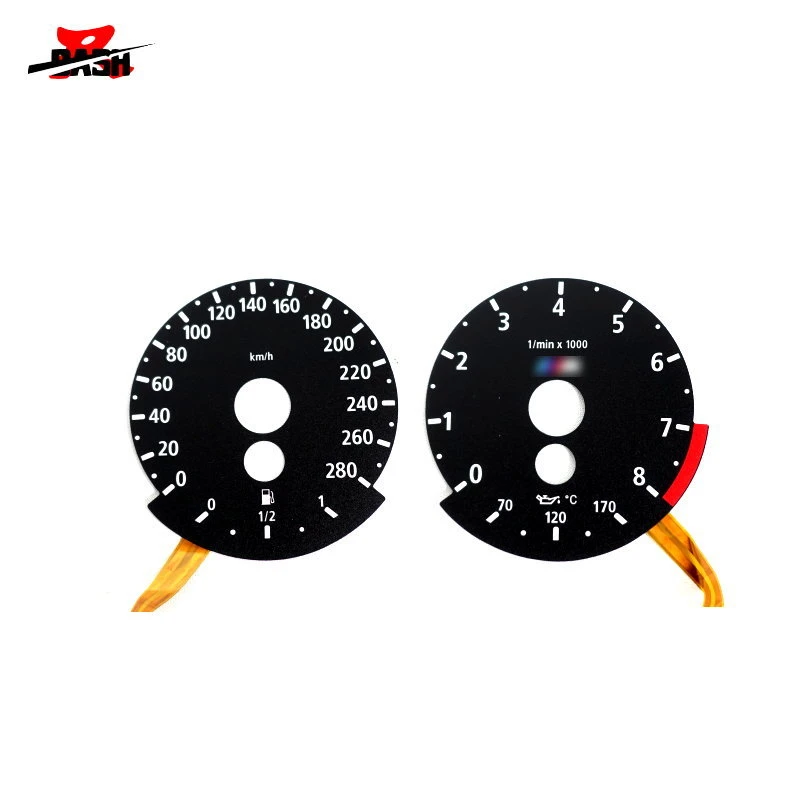

Black face. Reverse glow. White Light.

Color interchangeable: No

Brightness adjustable through the controller on the inverter.

Needle removal for installation: No

Anti-glare and scratch resistance surface.

TEST before installation:

Connect each piece of gauge to adaptor that comes with the kit, then test the kit by connecting to 12VDC battery or power supplier.

The adaptor offers 4 plugs, If the gauge kit needs less than 4 plugs, you can cover the unused plug with electric tape.

Do not connect the gauge panel to 12VDC power without the adaptor.

The EL glow gauge is emitted by AC voltage, the adaptor(inverter) will transform the 12VDC to 50~75 VAC. After connecting to power, don't touch bare terminals or solder points over the output side, will cause uncomfortabel electric shock.

Installation steps:

Turn off the car.

Remove screws that hold the bezel and cluster.

Disconnect the wire plugs to the cluster.

Remove the clear cover that protects the needles and the black housing around the gauge.

If there are screws that hold the faceplate remove them.

Gently slide the gauge face over the needle.

Locate a spot to run wire in the cluster.

Screw in the screws to the faceplate, if removed.

Install back the clear protection cover.

Plug the connectors of faceplates to inverter.

Locate the adaptor and dimmer controller to desired place.

Wiring BLACK wire to ground(-, negative), and parallel connect RED wire(+, positive) to parking light / headlight / cigarette lighter/ original light dimmer switch which supplies 12 VDC power. If you don't know how to figure out the wires, please let the professionalism to help you.

Turn on the car and check if the glow gauge works normally.
