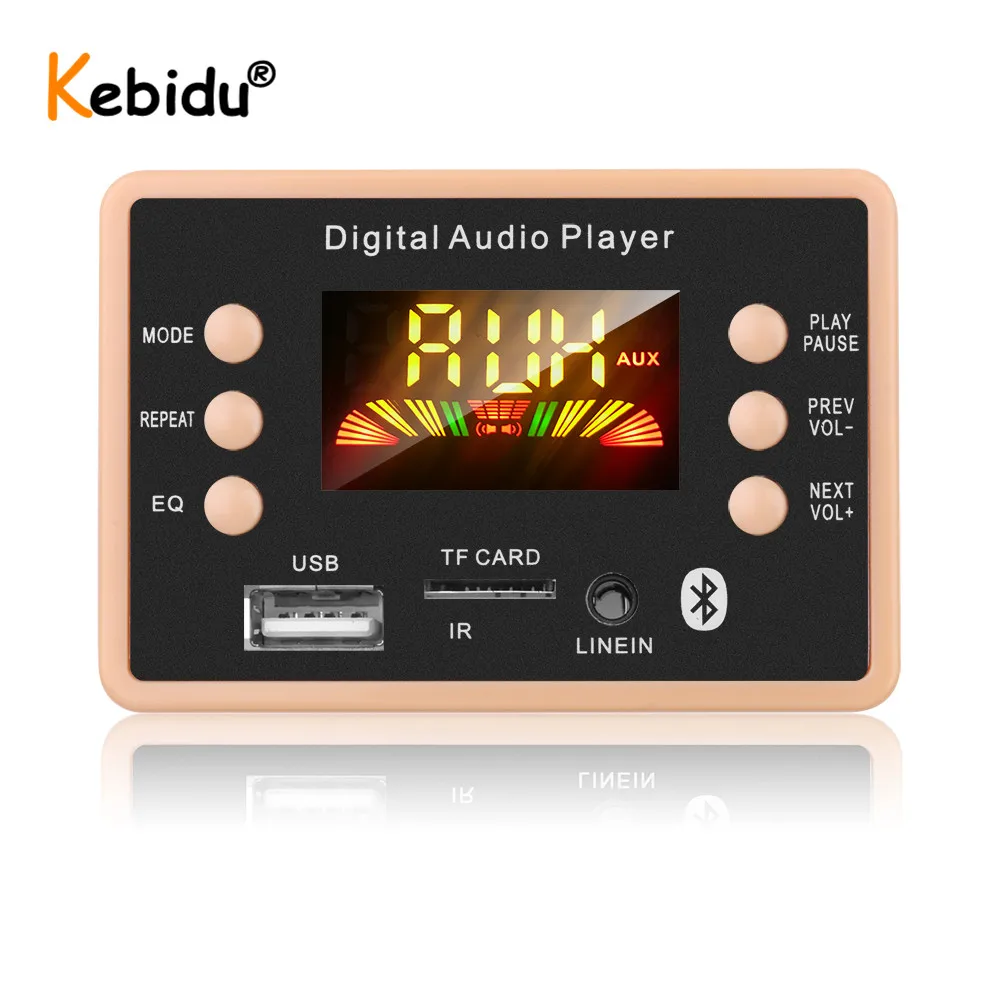

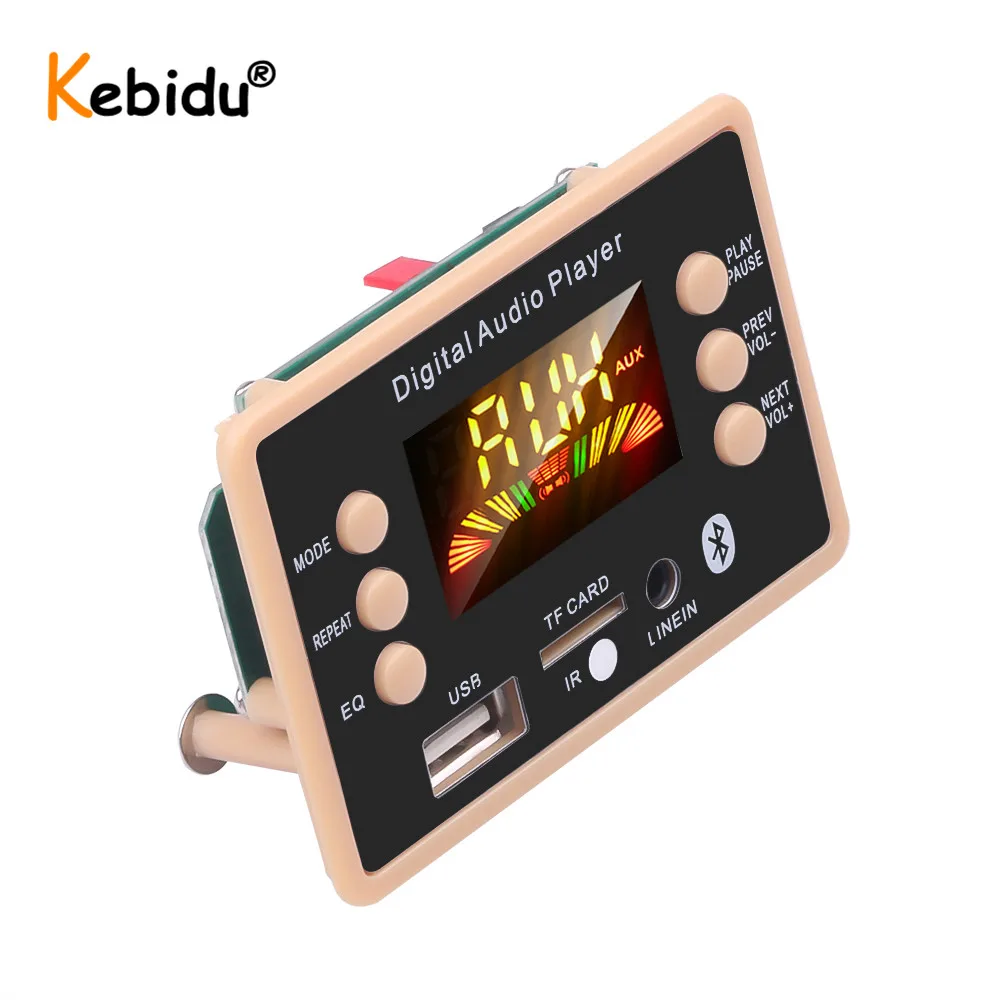

Kebidu New 5V 12V Wireless Bluetooth 5.0 MP3 Decoder Board Module AC6926 Chipset FM Radio Module Car Kit MP3 Music Player

MODE: USB / TF / FM / LINE IN / BLUETOOTH For Switching;
REPEAT: Press once to single cycle, press again to cancel single cycle;
EQ: sound field mode, test 6 kinds of sound quality; (classical) (jazz) (rock) (subwoofer) (pop) (normal);
LED: digital screen display;
PLAY / PAUSE: short press is to switch between pause and play; long press is radio FM automatic station;
PREV / VOL-: short press is to select the previous song; long press is to decrease the volume;
NEXT / VOL +: short press is to select the next song; long press is to increase the volume;
USB: connect U disk (up to 32GB);
TF: Connect TF memory card (up to 32GB)
IR: infrared receiving module;
LINE IN: audio input interface;

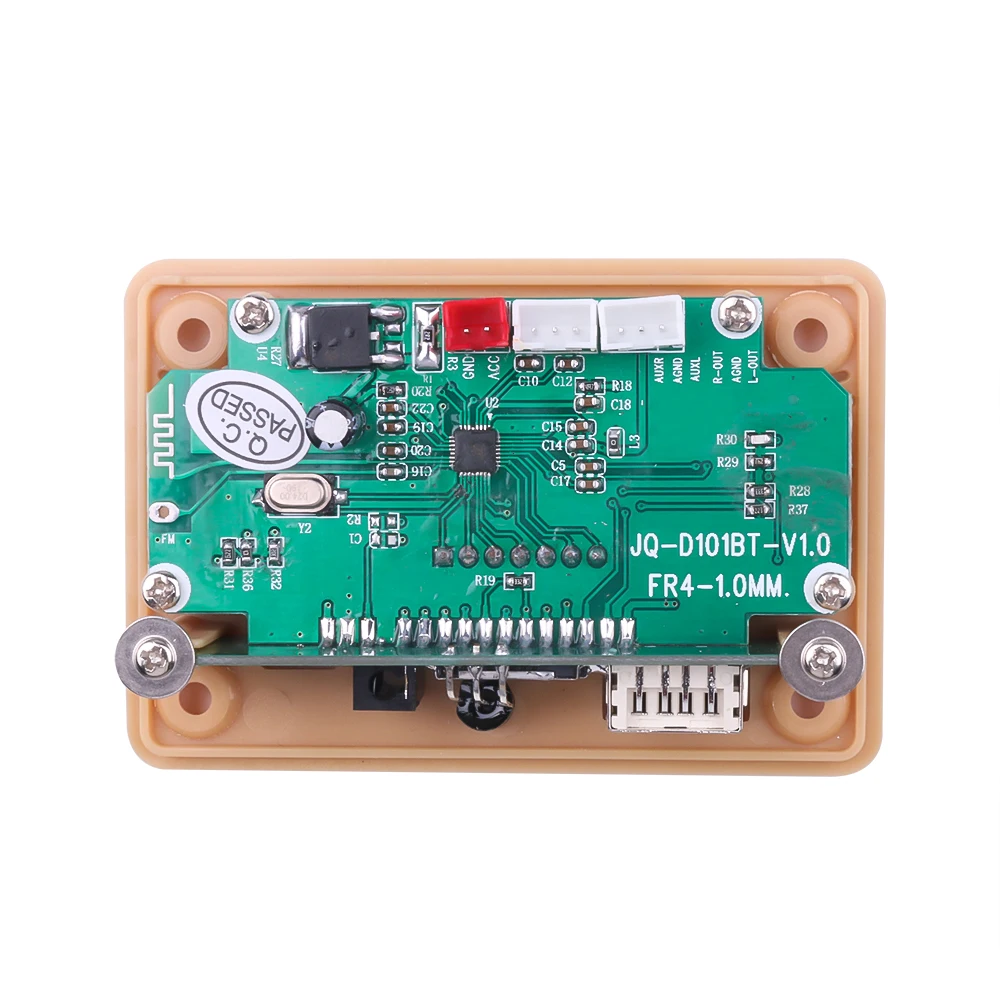

Master IC: AC6926
Bluetooth IC: AC6926 Bluetooth version is 5.0
Music format: MP3 / WMA / WAV / FLAC / APE lossless format
Radio FM frequency: 87.5-107.5 MHZ
Support: support MP3 / USB / TF / LINE IN / FM / BLUETOOTH / remote control / DC 5V or 12V (optional)
Structure: panel size: 78 * 58 MM, the screw holes are located around the panel, and then the surface is covered with PVC lenses, the depth of the board is 23MM

Package Included:
1x MP3 Decoder Board Car Kit
