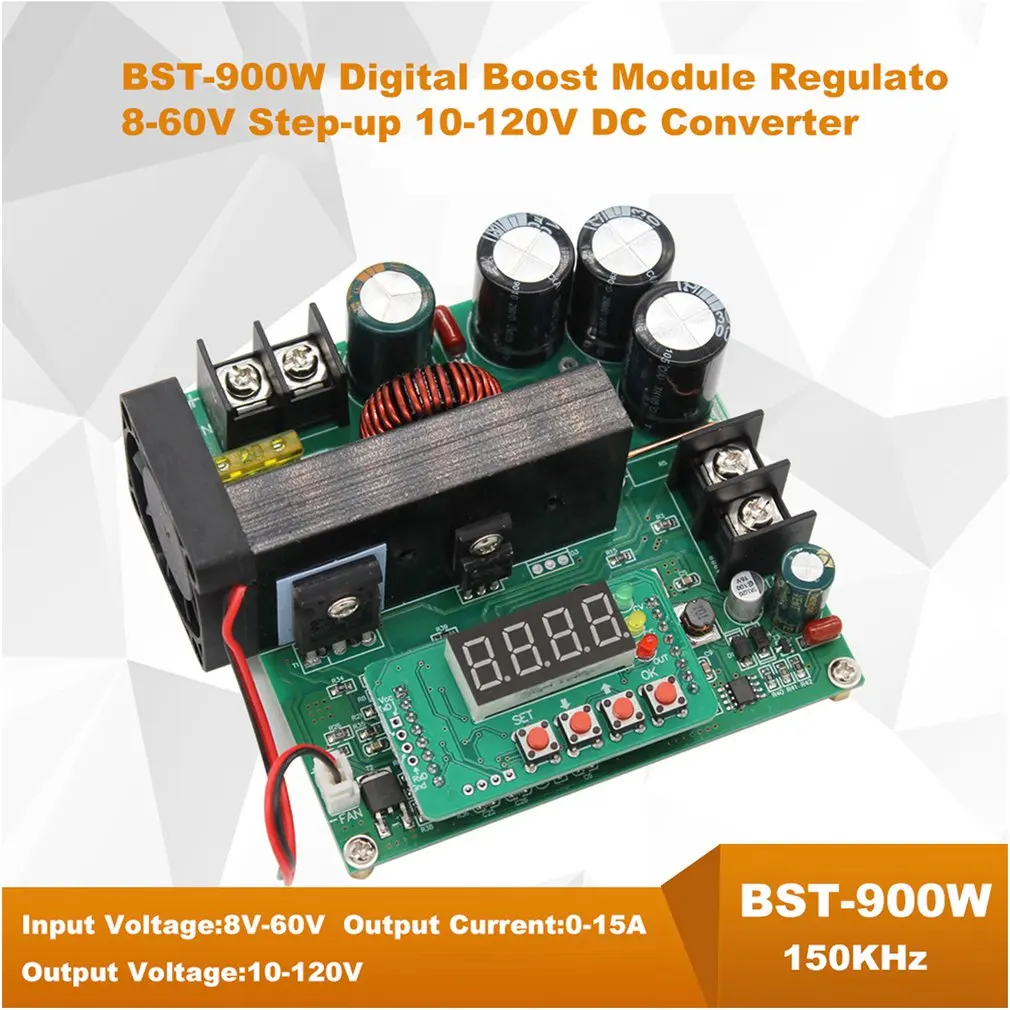

BST-900W 8-60V to 10-120V DC Converter LED Control Digital Boost Converter Voltage Transformer Module Regulator

Features:

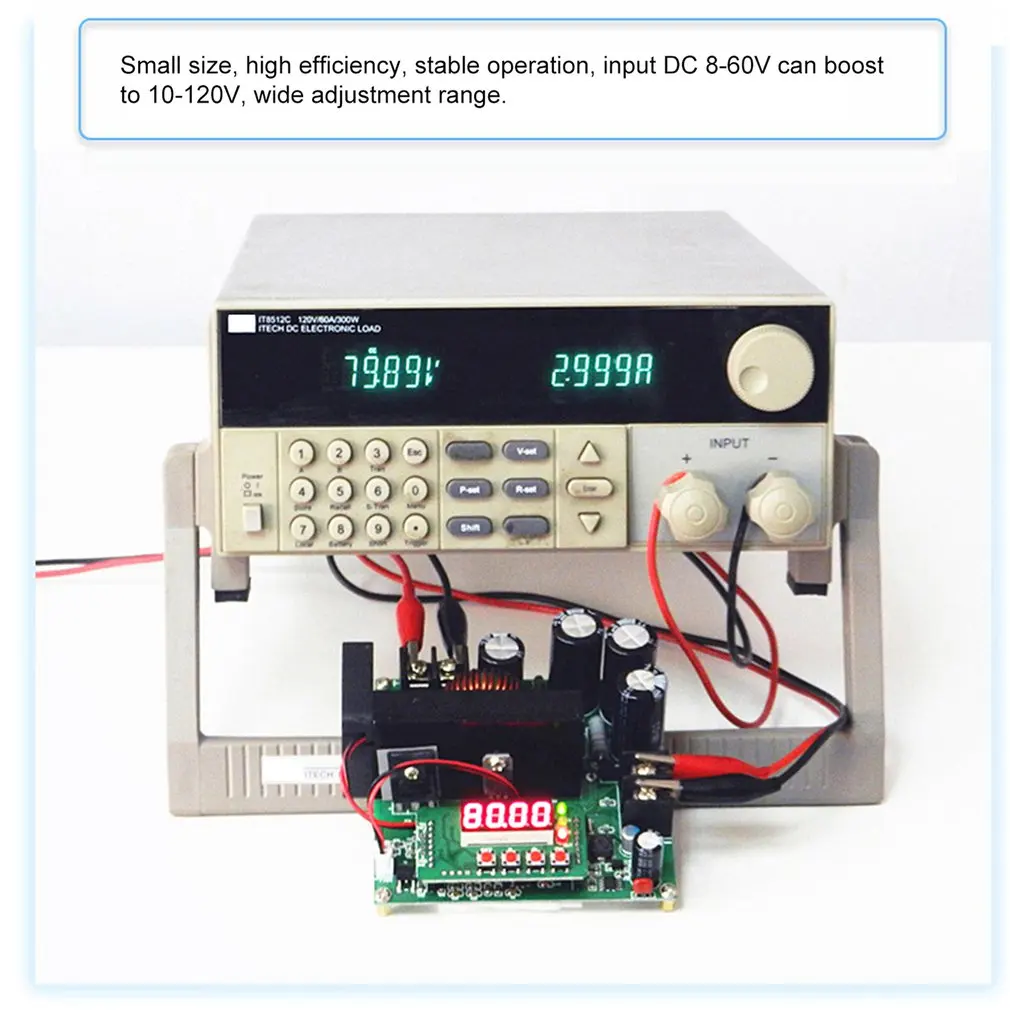

1.Small size, high efficiency, stable operation, input DC 8-60V can boost to 10-120V, wide adjustment range.
2.You can set the power output automatically.
3.There are two working states of constant voltage and constant current, which are indicated by OUT, CV and CC indicators.
4.The default display voltage and current, open full-function and rotation display mode can automatically switch display voltage, current, power, capacity and other parameters.
5.10 sets of storage locations, convenient storage and recall parameters.
6.The module comes with a fan to facilitate cooling.

Description:
1.BST-900W high-power DC boost power module is controlled by a high-speed micro-controller.
2.Can accurately adjust the output voltage and current.
3.It adopts four 8-digit LED digital display and can display voltage, current, power, capacity and other parameters in real time.

Specifications:
Model:BST-900W
Input Voltage:8V-60V
Output Current:0-15A
Output Voltage:10-120V
Conversion Efficiency:85%
Operating Frequency:150KHz
Short Circuit Protection:20A Fuse
Operating Temperature:-40°C to +85°C
Control Method:Digital Control + LED Display
Voltage Regulator/Display Resolution:<100V/0.01V, >100V/0.1V
Power Display Minimum Resolution:0.001W
Current Regulation/Display Resolution:<10A/0.01A, >10A/0.1A
Capacity Display Minimum Resolution:0.001AH
Output Ripple:≤50mV
Weight:243g/8.51oz

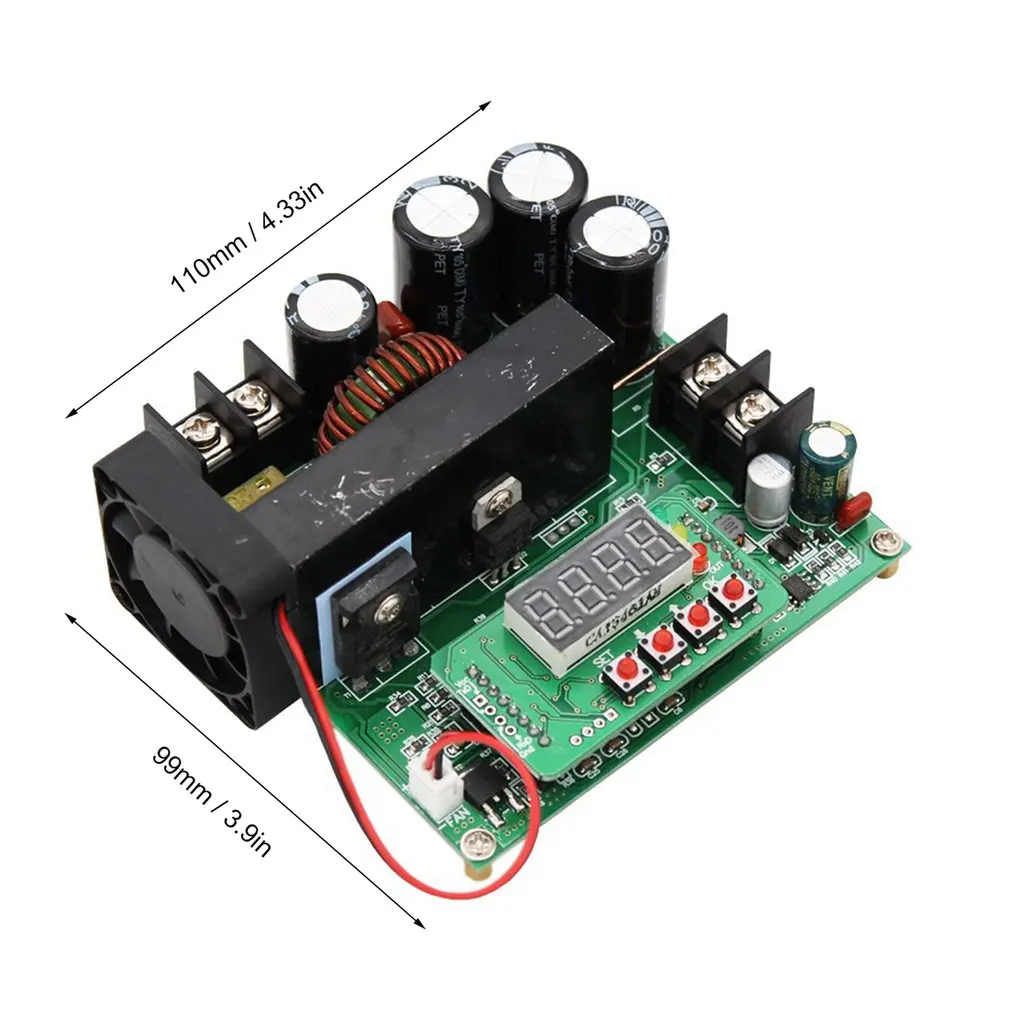

Size:110x99mm/4.33x3.9in
Color:Green

Package Information:
Package Size:160x130x50mm/6.3x5.12x1.97in
Package Weight:295g/10.33oz
General Package

Package Included:
1 x 900W Digital Boost Module

Notes:
1.Due to the difference between different monitors,the picture may not reflect the actual color of the item.
2.Due to different personal measuring techniques,there might be 1-3cm error of the physical.Thank you!
