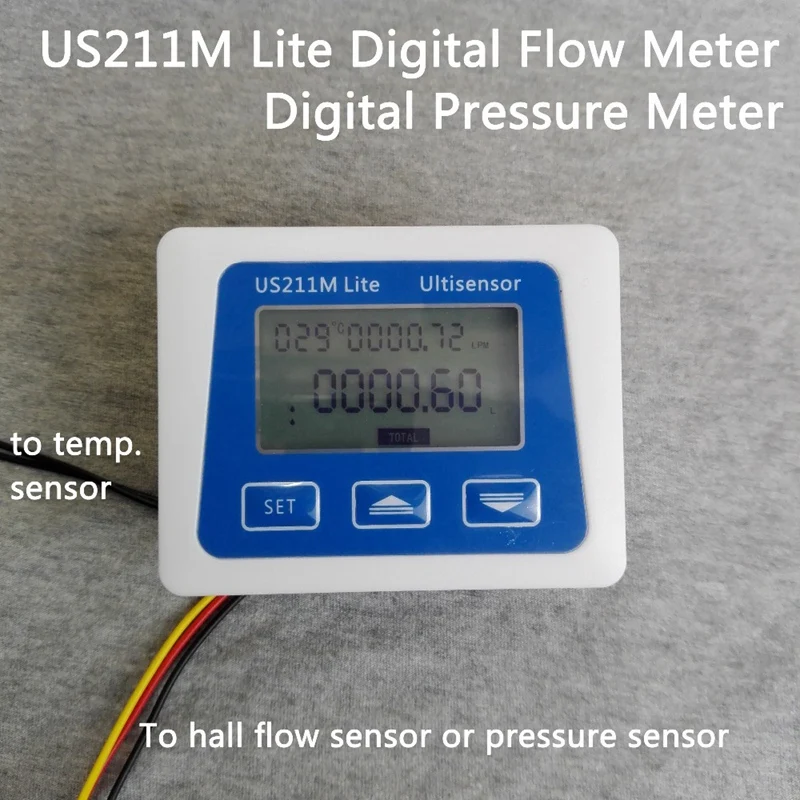

US211M Lite DN80 20-500L/Min Digital Flow Meter 5V Flow Reader Compatible with All Our Hall Effect Water Flow Sensor The digital display meter can display the instantaneous flow, the unit is l / min
Can display accumulated flow, Unit is L, max is 9999L.
It can show the ambient temperature or fluids.
White backlight LCD
Connection flow sensor type: depend on flow sensor

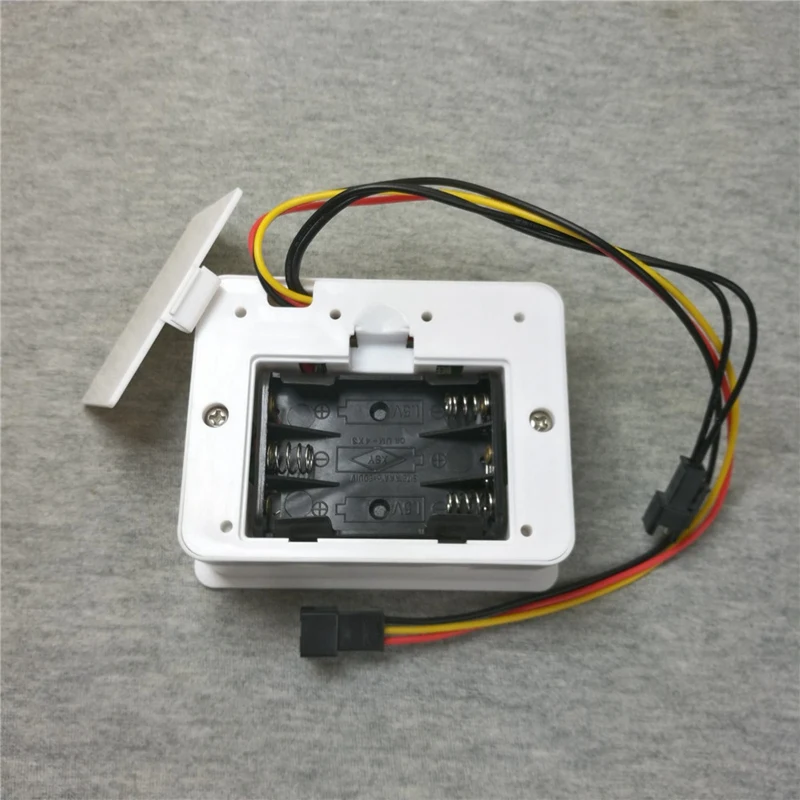

Input Power: 5V DC OR 3 AA Battery
Accuracy: + -1%
Temperature Display Range: -20-99 Celsius
Temperature workflow sensor: celsius 0-60
Flow range: depends on flow sensor
Working pressure: 0.05-0.8MPa
Dimension: 84 * 66 * 34mm
Installation Dimension: 78 * 60mm
Power supply: 5 v DC (battery / power adapter)
Battery life: 1 year (for those of lower consumption hall flow sensor)
Colour: blue
Material: plastic, aluminum alloy

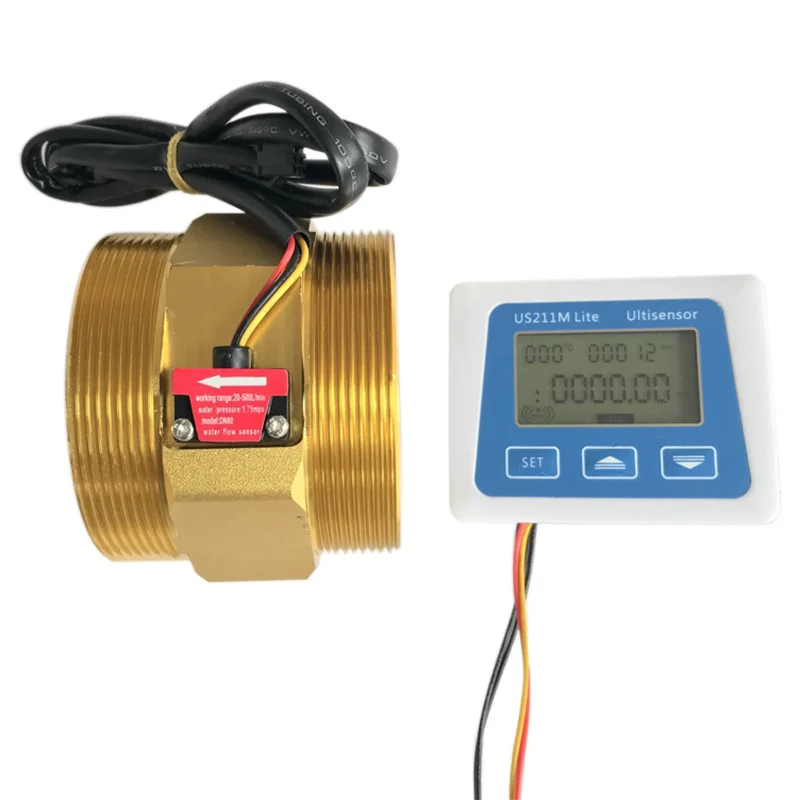

Package Contents:

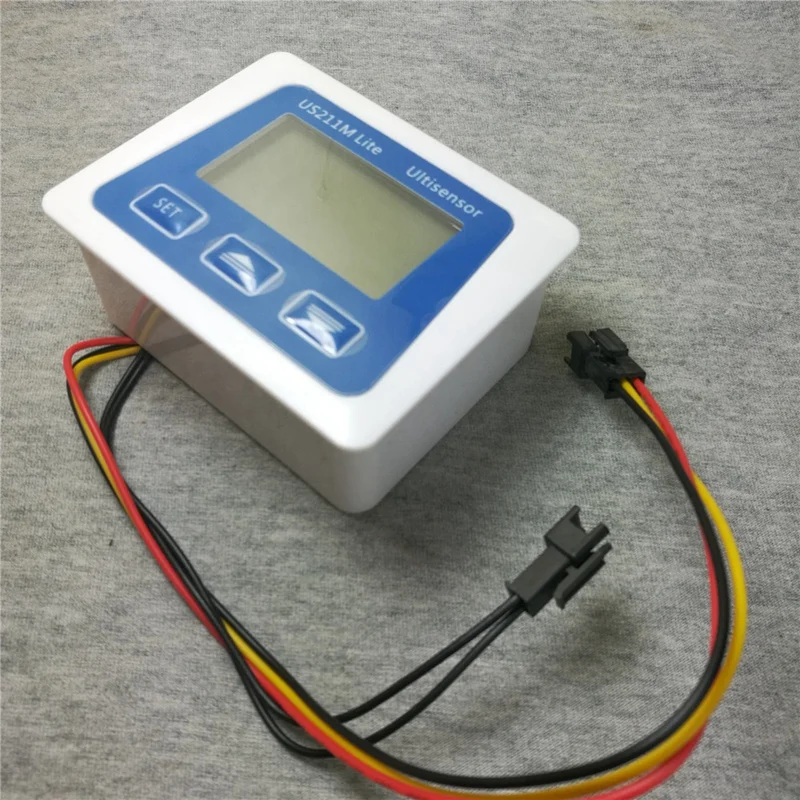

1 * US211M Lite digital display(Battery and temperature sensor not included)

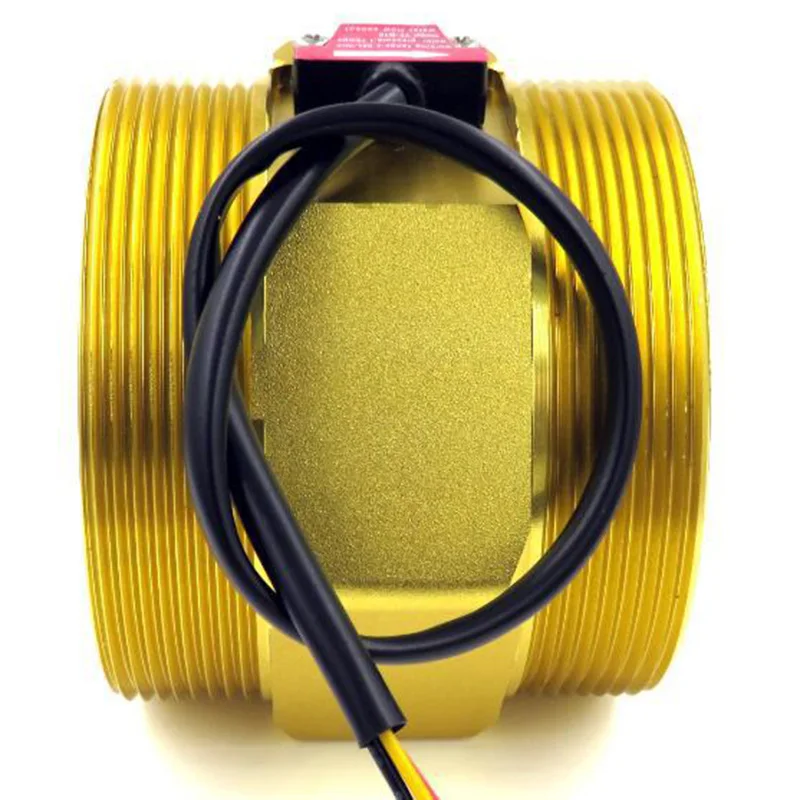

1 * hall water flow sensor
1 * English Instruction manual
note:
1. Pressure gauge and flowmeter cannot work together.
2. US211M lite can work with all of our salon flow sensor.
BUT with battery power supply, to use with our LOW FLOW SENSOR CONSUMPTION, battery can last 1 year.
With another flow sensor, the battery can last only one week, unless you use AC to DC power adapter.
3. To work as pressure gauge, you have to choose AC DC power adapter for long time use.
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
