GY-91 MPU 9250 + BMP280 10DOF гироскоп компас 9-осевой модульный датчик ускорения |

GY-91 MPU 9250 + BMP280 10DOF гироскоп компас 9-осевой модульный датчик ускорения |

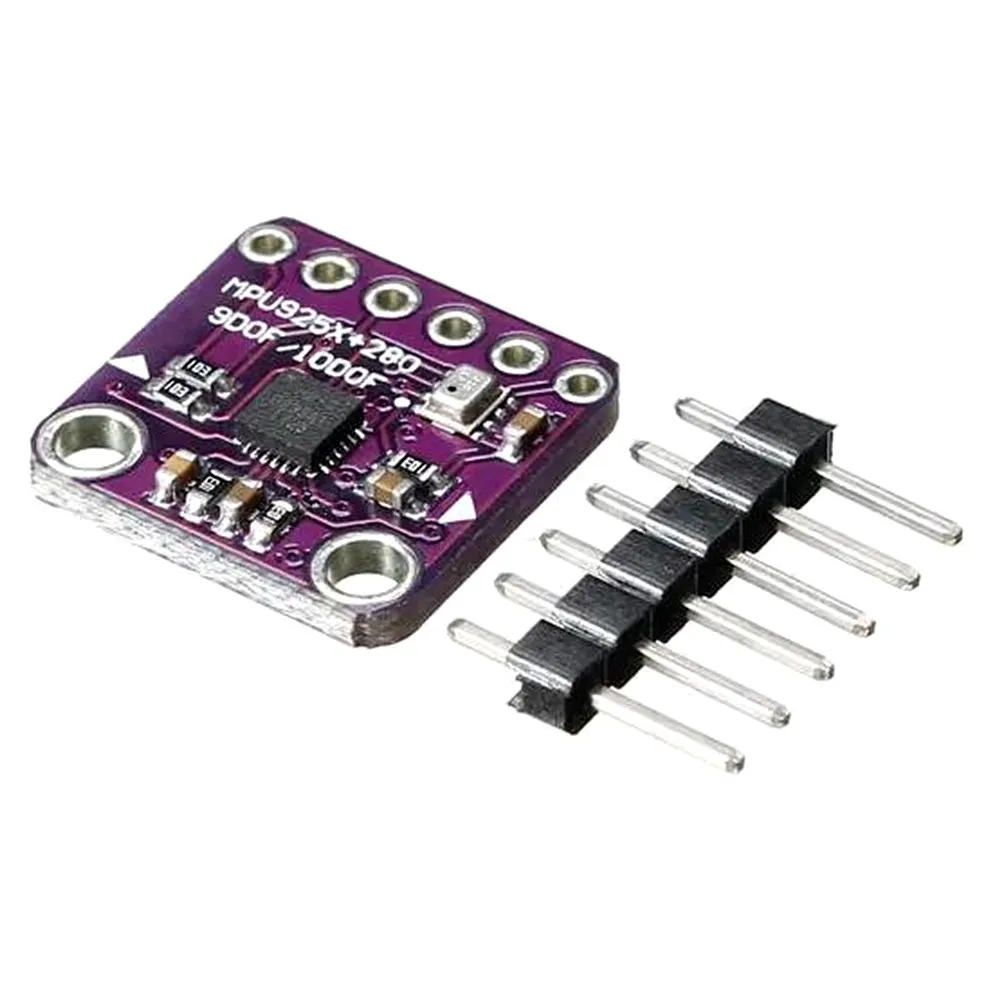

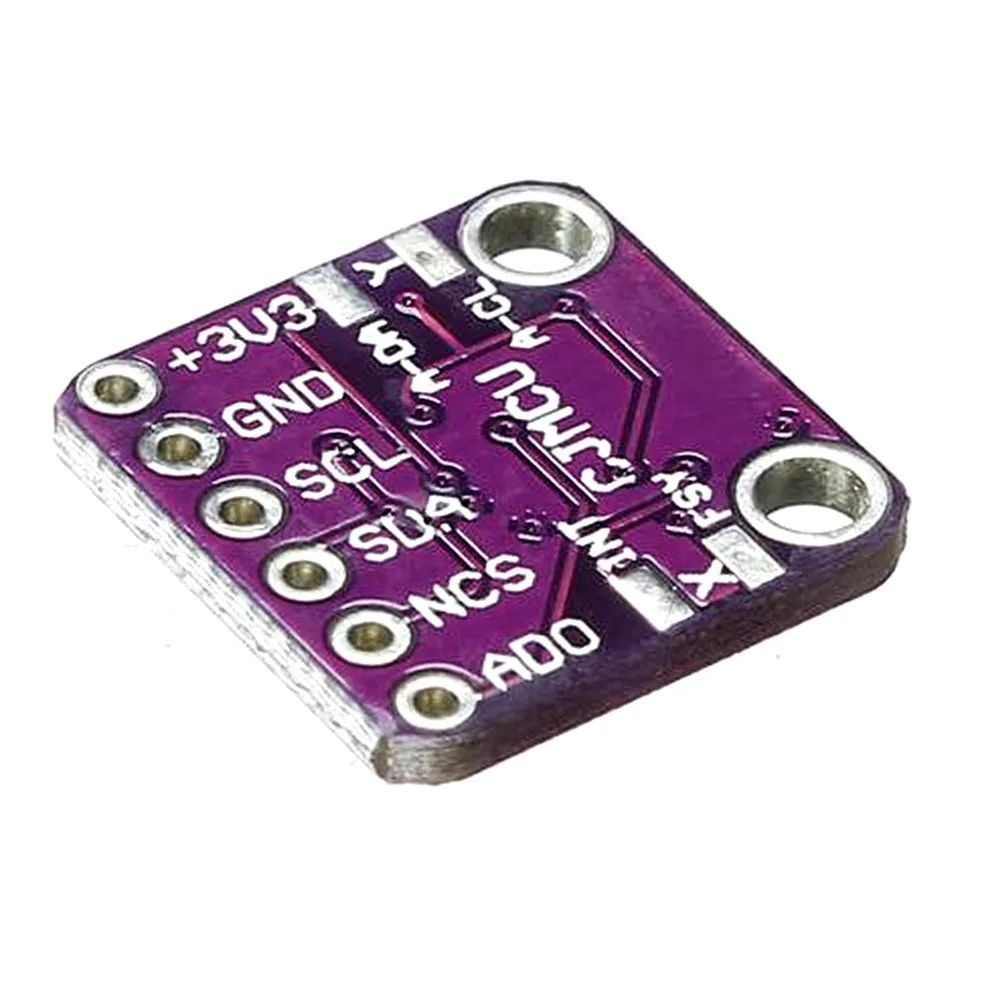

Feature:

1. Three-axis gyroscope + triaxial accelerometer + triaxial magnetic field + pressure
2. Module Model: GY-91
3. Using chip: MPU-9250 + BMP280
4. Power supply: 3-5V (internal low dropout regulator)
5. Communication: standard IIC communications protocol chip 16bit AD converter, 16-bit data output
6. Gyroscopes range: ± 250 500 1000 2000 ° / s
7. Acceleration range: ± 2 ± 4 ± 8 ± 16g
8. Field range: ± 4800uT
9. Pressure range: 300-1100hPa
10. Using Immersion Gold PCB, machine welding process to ensure quality 2.54mm pitch
11. Built in digital temperature sensor comes in the MPU-9250
12. Module size 14.3mm * 20.5mm

Package included:

1 x Acceleration Gyroscope Compass Nine Shaft Sensor

==================================================================================================

==================================================================================================================

Description:

Has stepped up their game with their new BMP280 sensor, an environmental sensor with temperature,
barometric pressure that is the next generation upgrade to the BMP085/BMP180/BMP183. This sensor is great
for all sorts of weather sensing and can even be used in both I2C and SPI!
This sensor is the best low-cost, sensing solution for measuring barometric pressure
with ±1 hPa absolute accuracy, and temperature with ±1.0°C accuracy. Because pressure changes with altitude,
and the pressure measurements are so good, you can also use it as an altimeter with ±1 meter accuracy

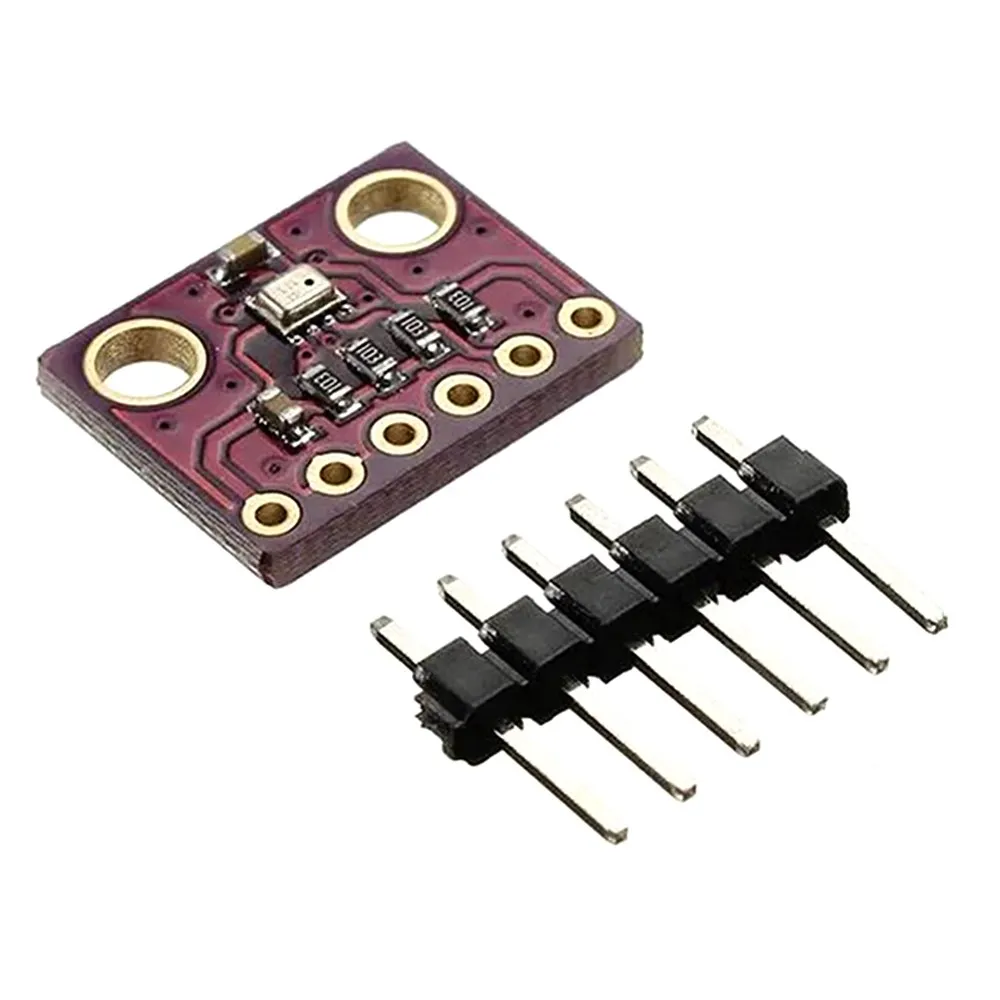

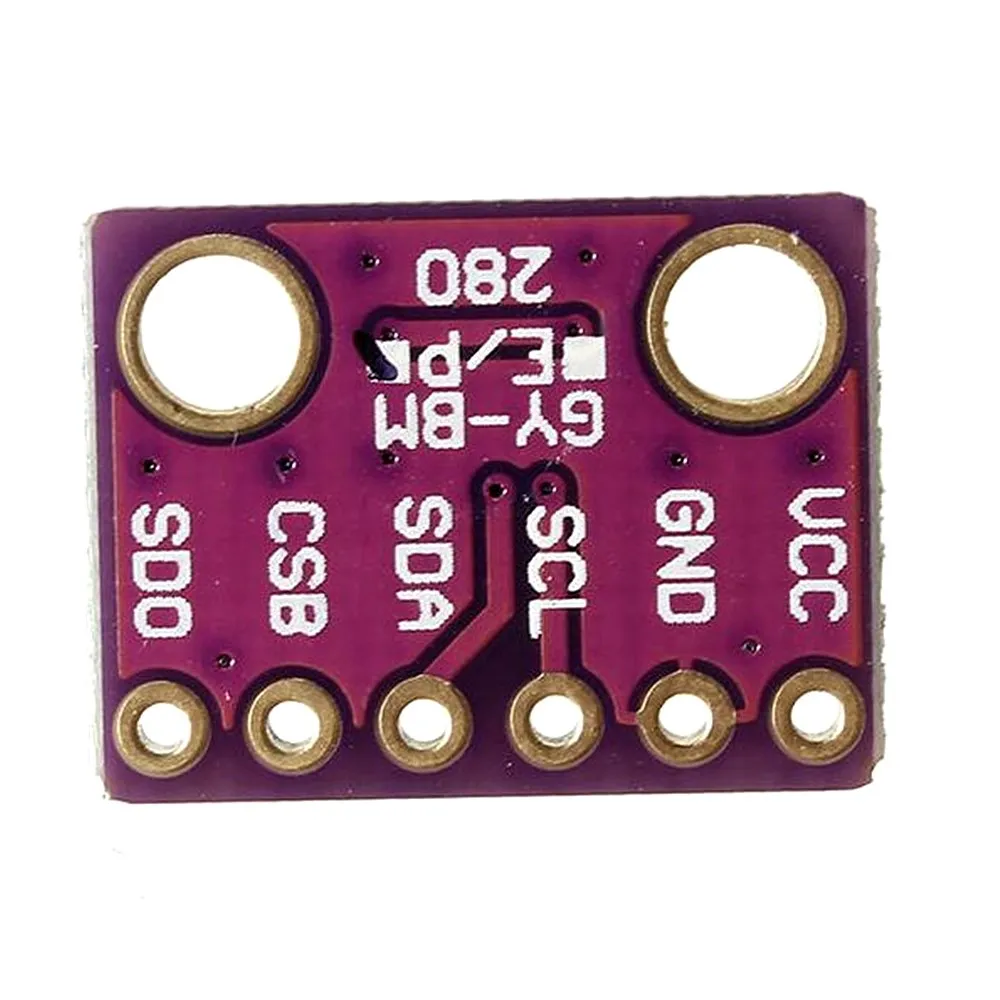

Feature:

Model: GY-BMP280-3.3
Chip: BMP280
Power supply: 3V
Communication method: Standard IIC/SPI communication protocol
Air pressure: 300-1100hPa
Pin: 2.54mm
Module size: 11.5mm*15mm

Typical application:

Enhancement of GPS navigation(e.g.time-to-first-fix improvement,dead-reckoning,slope detection)
Indoor navigation(floor detection,elevator detection)
Outdoor navigation,leisure and sports applications
Weather forecast
Health care application(e.g. sirometry)
Vertical speed indication(e.g. risk/sink speed)

Package Included:

1 x GY-BMP280-3.3 Atmospheric Pressure Sensor Module
