Телемедицина конференции церковь Видео PTZ HD NDI камера POE с 3G SDI HDMI выход |

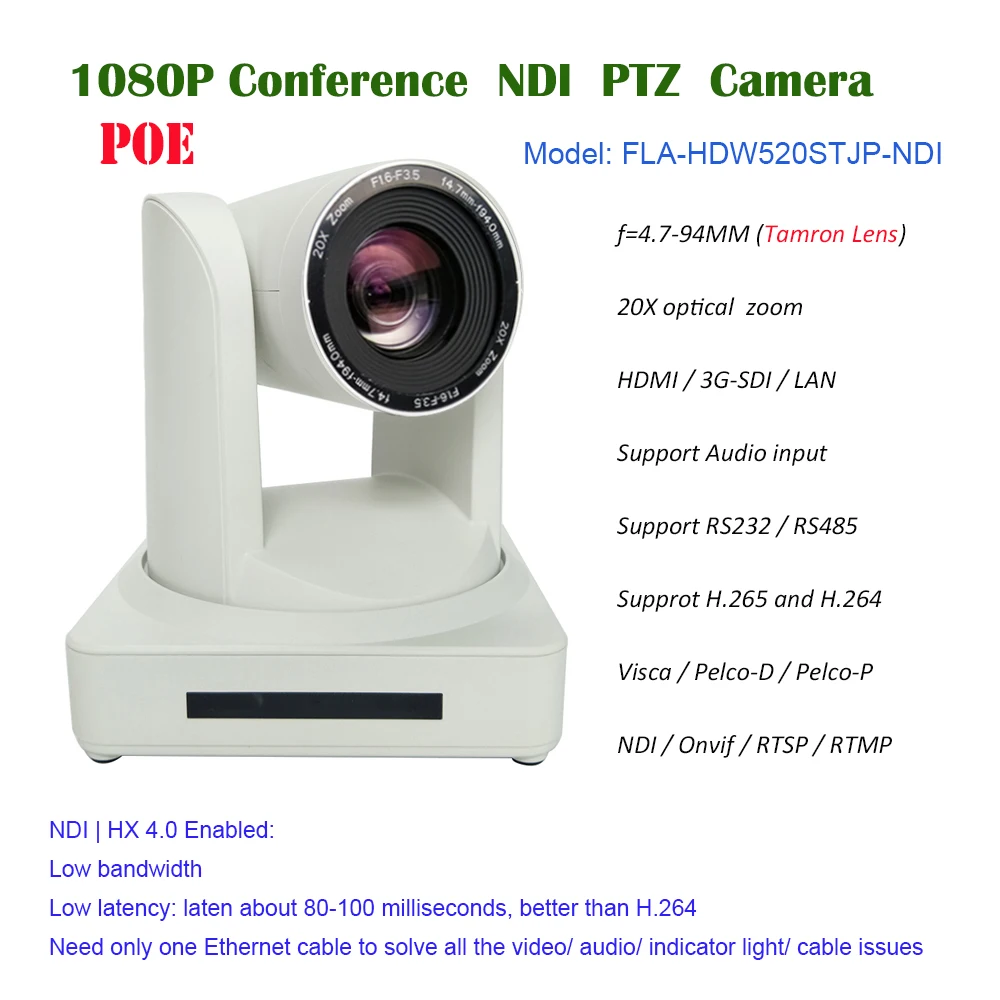

Telemedicine Conference Church Video PTZ HD NDI Camera POE with 3G SDI HDMI Output

Shipping notes:

1)All free shipping products, The Seller shall be responsible for shipping cost from shenzhen china to destination place. China tariffs, relates to handle fees, export declaration fees or customs clearance fees is for seller 's account.

2)But the arrival of the goods at the destination, Buyer import tariffs, relates to the operation fees, customs fees or customs clearance fees is at buyer's cost.  if there are special requirements, please specify in the order message, we will do declaration invoice according to the special needs of buyers.

Full HD, Wide View Angle, Multi-protocols,Multiple Video Interfaces

This series camera offers perfect functions, superior performance and rich interfaces.The features include advanced ISP processing algorithms to provide vivid images with a strong sense of depth, high resolution,and fantastic color rendition. It supports H.264/H.265 encoding which makes motion video fluent and clear even under less than ideal bandwidth conditions.



It employs 1/2.8 inch high quality CMOS sensor. Resolution is up to 1920x1080 ,Multiple lens 20×Zoom

support HDMI, 3G-SDI, IP interface. (DC12V Power /48V POE Supported)

NDI HX 4.0 Enabled:Low bandwidth, Low latency: laten about 80-100 milliseconds, better than H.264, Need only one Ethernet cable to solve all the video/ audio/ indicator light/ cable issues

Leading auto focus algorithm makes lens a fast, accurate and stable auto-focusing.

Low noise CMOS effectively ensure high SNR of camera video. Advanced 2D/3D noise reduction technology is also used to further reduce the noise, while ensuring image sharpness.

Support 16000, 32000, 44100, 48000 sampling frequency and support AAC, MP3, PCM audio coding.

By adopting step driving motor mechanism, camera works extremely quiet and moves smoothly.

Support H.264/H.265 video compression

Support AAC, MP3 and PCM audio compression; Support compression of resolution up to 1920x1080 with frame up to 60 fps and 2 channels 1920x1080 with 30 fps compression.

Support ONVIF, RTSP, RTMP protocols and RTMP push mode, easy to link streaming media server (Wowza, FMS)

Tele-education, Lecture Capture, Webcasting, Videoconferencing, Tele-training, Tele-medicine, Interrogation and Emergency Command Systems.

Support low-power sleep/wake up, the consumption is lower than 400mW under sleep mode.

 Model number  HDW520STJP-NDI  Camera  Parameter  Optical Zoom  20X   f＝4.7～94mm  Sensor  1/2.8  inch  high  quality   HD CMOS  sensor  Effective Pixels  16: 9,    2.07 Megapixel  1080P Video Format   1080P60/50/30/25/59.94  1080i Video Format  1080I60/50/59.94  720P Video  Format  720P60/50/30/25/59.94  View Angle  2.9°(tele)--55.4°(wide)  Aperture  F1.6--F3.5  Digital Zoom  10X   Digital  Zoom  Minimum Illumination  0.5Lux (F1.8, AGC ON)  DNR  2D & 3D DNR  White Balance  Auto / Manual / One Push / 3000K / 4000K / 5000K / 6500K  Focus  Auto / Manual  Aperture  Auto / Manual  Electronic Shutter  Auto / Manual  BLC  ON / OFF  WDR  OFF/ Dynamic level adjustment  Video Adjustment  brightness, color, saturation, contrast, sharpness, B/W mode  SNR  >55dB  Input / Output interface  Rich Interface  HDMI, 3G-SDI, IP/LAN, RS232/RS485,Audio-in  Image Code Stream  Dual streams output  Video Compression   H.265 / H.264  Control Signal Interface  RS-232 (Ring through RS232 output), RS485  Control Protocol  VISCA / PELCO-D / PELCO-P  Baud Rate  115200 / 9600 / 4800 / 2400bps  Audio Input Interface  Dual track 3.5mm linear input, audio over ip  Audio Compression   AAC / MP3 / PCM  Audio  Compression  IP Interface  100M IP port (10/100BASE-TX)  Visca  Protocol  Support VISCA protocol control through IP port.  Network Protocol  RTSP, RTMP, ONVIF, NDI  Power Interface  HEC3800 outlet (DC12V)  PTZ  Parameter  Pan Rotation  ±170°  Tilt Rotation  -30° ~ +90°  Pan Control Speed  0.1 ~ 60 degree /sec  Tilt Control Speed  0.1~ 30°/sec  Preset Speed  Pan: 60°/sec, Tilt: 30°/sec  Preset Number  255 presets （10 presets by remote controller）  Other Parameter  Supply Adapter  AC110V-AC220V to DC12V/1.5A  Input Voltage  DC12V±10% / POE  Input Current  1A（max）  Consumption  12W (max)  Store Temperature  -10℃ to +60℃  Store Humidity  20% --95%  Working Temperature  -10℃ to +50℃  Working Humidity  20%--80%  Remote Operation   remote upgrade, remote reboot and remote reset  Accessory  power supply,RS232 control cable,remoter, user manual, warranty card  Optional Accessory  Installation Bracket  Product Dimension  150mmX150mmX167.5mm  Net weight  1.4kg  Packed Dimension  290x280x270MM  Gross Weight  4.5KG



Package Included:
