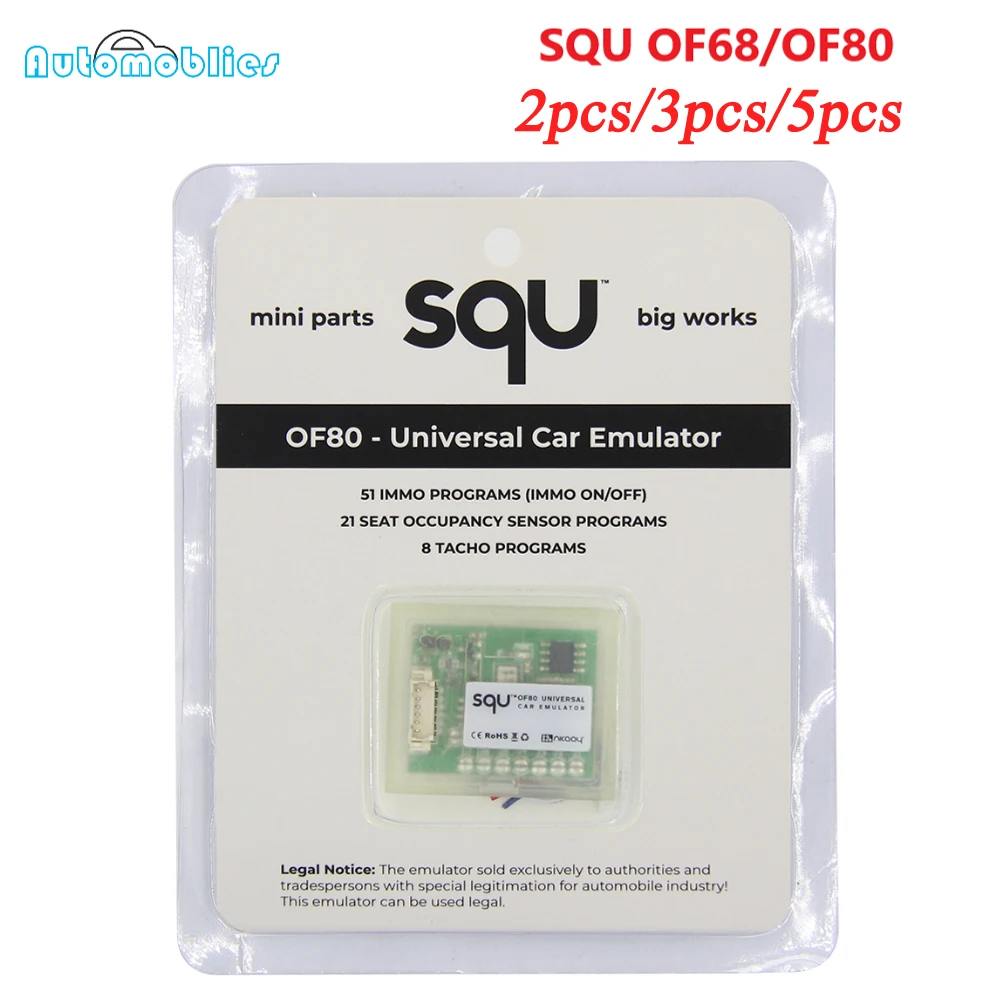

New OBD2 SQU OF68 Universal Car Emulator OF80 Signal Reset Immo Programs Diagnostic Tool Seat Occupancy Sensor |

New OBD2 SQU OF68 Universal Car Emulator OF80 Signal Reset Immo Programs Diagnostic Tool Seat Occupancy Sensor |

1: 51 IMMO PROGRAMS(IMMO ON/OFF)

2: 21 SEAT OCCUPANCY SENSOR PROGRAMS

3: 8 TACHO PROGRAMS

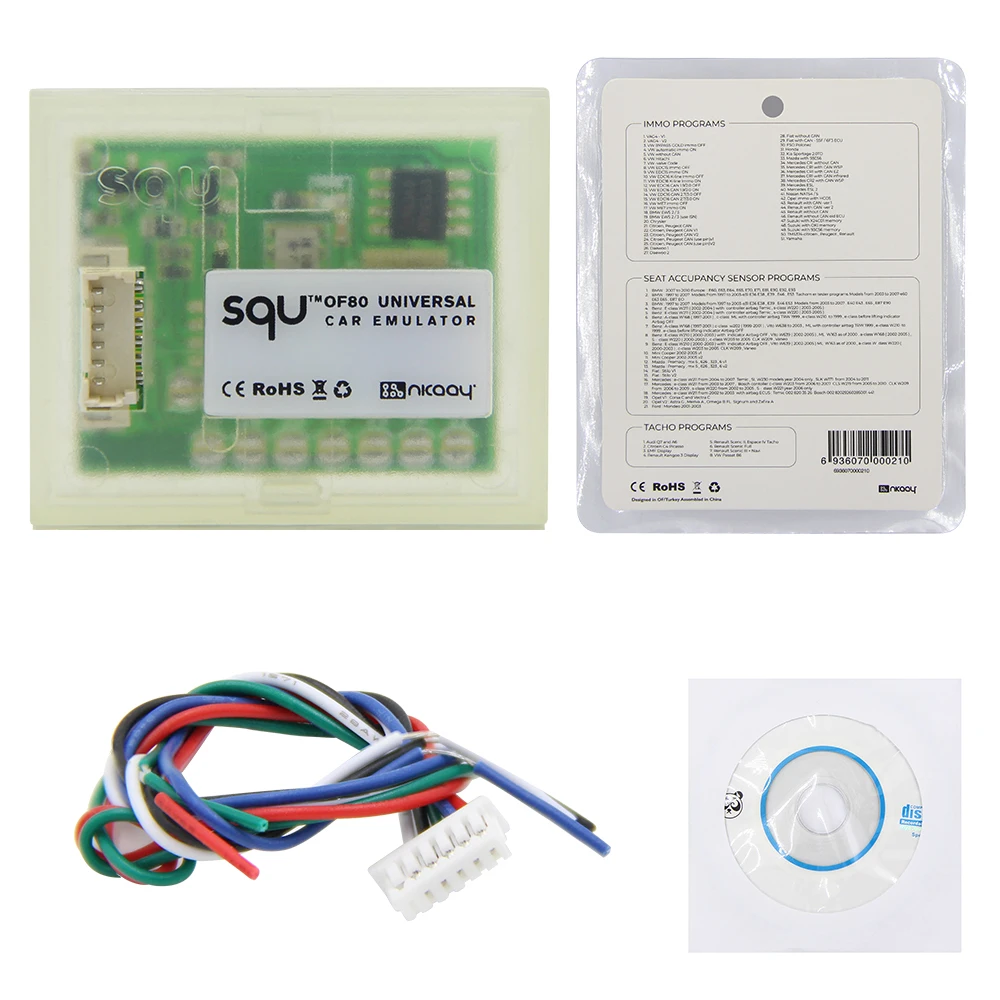

SQU OF80 universal car emulator supports IMMO/Seat occupancy sensor/Tacho Programs.

SQU OF80 Features:

1. The LED behavior

-no jumpers-diagnostic mode-it flashes every second

-adjusting to the ecu-flashing 0, 1 sec

-after adjusting it lights constantly and blinks every other second

2. Tachometer tester programs

USE

You can use it to tum on the instrument cluster on the table in order to diagnose faults. After

connecting the emulator to instrument cluster, most of instrument cluster segments are displayed

making it easier to locate damaged areas.

3. This emulator is reusable, Tested on tacho---for Audi Q7 and for A6 ,for Citroen C4 Picasso, for EMF Display, for Renault Kangoo 3 Display, for Renault Scenic II, for Espace IV Tacho, for Renault Scenic II Full, for Renault Scenic III+ Navi, for VW Passat B6

Immo Programs For OF80:

1.VAG4-V1

2.VAG4-V2

3.For VW BYPASS GOLD immo OFF

4.For VW automatic immo ON

5.For VW without CAN

6.For VW Hitachi

7.For VW -valve Code

8.For VW EDC15 immo OFF

9.For VW EDC15 immo ON

10.For VW EDC16 K-line Immo OFF

11.For VW EDC16 K-line Immo ON

12.For VW EDC16 CAN 1.9/2.0 OFF

13.For VW EDC16 CAN 1.9/2.0 ON

14.For VW EDC16 CAN 2.7/3.0 OFF

15.For VW EDC16 CAN 2.7/3.0 ON

16.For VW ME7 immo OFF

17.For VW ME7 immo ON

18.For BMW EWS 2/3

19.For BMW EWS 2/3 (use ISN)

20.For Chrysler

21.For Citroen,For Peugeot CAN

22.For Citroen,For Peugeot CAN V1

23.For Citroen,For Peugeot CAN V2

24.For Citroen,For Peugeot CAN (use pin)v1

25.For Citroen,For Peugeot CAN (use pin)v2

26.For Daewoo1

27.For Daewoo2

28.For Fiat without CAN

29.For Fiat with CAN-5SF/6F3 ECU

30.For FSO Polonez

31.For Honda

32.For Kia Sportage 2.OTD

33.For Mazda with 93C56

34.For Mercedes CR without CAN

35.For Mercedes CR1 with CAN WSP

36.For Mercedes CR1 with CAN EZ

37.For Mercedes CRl with CAN infrared

38.For Mercedes CR2 with CAN WSP

39.For Mercedes ESL

40.For Mercedes ESL 2

41.For Nissan NATS4/5

42.For Opel immo with HCO5

43.For Renault with CAN -ver 1

44.For Renault with CAN -ver 2

45.For Renault without CAN

46.For Renault without CAN old ECU

47.For Suzuki with X24C01 memory

48.For Suzuki with OKI memory

49.For Suzuki with 93C56 memory

50.For TMS374-For citroen,For Peugeot,For Renault

51.For Yamaha

Seat Occupancy Sensor Programs For OF80:

1.For BMW:2007 to 2010 Europe:E60,E63,E64,E65,E70,E71,E81,E90,E92,E93

2 For BMW:1997 to 2007 Models from 1997 to 2003-e31 E36 E38, E39, E46, E53 Tachom er tester programs Models from 2003 to 2007-e60 E63 E65,E87 EO

3.For BMW: 1997 to 2007 Models from 1997 to 2003-e31 E36 E38, E39. E46 E53 Models from 2003 to 2007. E40 E43. E65,E87 E90

4. For Benz: E-class W211(2002-2004)with controller airbag Temic, s-class W220(2003-2005)

5. For Benz: E-class W211(2002-2004)with controller airbag Temic, s-class W220(2003-2005)

6. For Benz: A-class W168 (1997-2001),c-class ML with controller airbag TRW 1999, e-class W210 to 1999, e-class before lifting indicator Airbag OFF

7.For Benz: A-class W168(1997-2001)c-class w202(1999-2001),Vito W638 to 2003, ML with controller airbag TRW 1999, e-class W210 to 1999,e-class before lifting indicator Airbag OFF

8.For Benz: E-class W210(2000-2003)with indicator Airbag OFF, Vito W639(2002-2005), ML W163 as of 2000, a-class W168(2002-2005),S-class W220(2000-2003),c-class W203 to 2005 CLK W209, Vaneo

9.For Benz: E-class W210(2000-2003)with indicator Airbag OFF, Vito W639(2002-2005)ML W163 as of 2000, a-class W dass W220(2000-2003), c-class W203 to 2005 CLK W209, Vaneo

10.For Mini Cooper 2002-2005 v1

11.For Mini Cooper 2002-2005 v2

12.For Mazda: Premacy, mx-5, 626, 323, 6 v1

13.For Mazda: Premacy, mx-5, 626, 323, 6 v2

14.For Fiat:stilo V1

15.For Fiat:Stilo V2

16.For Mercedes: e-class w211 from 2004 to 2007 Temic,SL W230 models year 2004 only.SLK W171 from 2004 to 2011

17.For Mercedes: e-class W211 from 2003 to 2007,For Bosch contoller c-class W203 from 2006 to 2007 CLS W219 from 2005 to 2010. CLK W209 from 2006 to 2009, s-class W220 from 2002 to 2005, S- dass W221 year 2006 only

18.For Mercedes: e-class W211 from 2002 to 2003 with airbag ECUS:For Temic 002 820 35 26 Bosch 002 82029260285001 441

19.For Opel V1: Corsa C and Vectra C

20.For Opel V2: Astra G, Meriva A, Omega B FL Signum and Zafira A

21.For Ford: Mondeo 2001-2003

Tacho Programs For OF80:

1.For Audi Q7 and A6

2.For Citroen C4 Picasso

3.For EMF Display

4.For Renault Kangoo 3 Display

5.For Renault Scenc II,Espace IV Tacho

6.For Renault Scenic Full

7.For Renault Scenic III+ Navi

8.For VW Passat B6

SQU OF68 universal car emulator supports IMMO/Seat occupancy sensor/Tacho Programs.

SQU OF68 Universal Car Emulator Mini Parts Big Works

The SQU OF68 universal car emulator allows you to do:

Move the original immobiliser signal

Place the original immobiliser signal

Place the ESL, enable the car to start

ECK the EZS on the table

ECK the correctness of the airbag system

Art the tacho on the table

The SQU OF68 emulator comes with 68 programs that are dedicated to hundreds of car models and types of ECU.

You are allowed to choose from any of folllowing program:

1. Immo programs

2. Seat occupancy sensor programs

3. Tacho programs

The vast majority of programs can be used multiple times.

Program selection is effected by soldering jumpers from J1 to J7. To connect the emulator, please refer to specific installation manual.

 Immo Programs:

1. For VW automatic immo OFF (single use)

2. For VW automatic immo ON (single use)

3. For VW without CAN

4. For VW - Hitachi

5. For VW - Valve Code

6. For VW EDC15 immo OFF (single use)

7. For VW EDC15 immo ON (single use)

8. For VW EDC16 K-LINE immo OFF (single use)

9. For VW EDC16 K-LINE immo ON (single use)

10. For VW EDC16 with CAN 1.9 2.0 TDI immo OFF (single use)

11. For VW EDC16 with CAN 1.9 2.0 TDI immo ON (single use)

12. For VW EDC16 with CAN 2.7 3.0 TDI immo OFF (single use)

13. For VW EDC16 with CAN 2.7 3.0 TDI immo ON (single use)

14. For VW ME7 immo OFF (single use)

15. For VW ME7 immo ON (single use)

16. For BMW EWS II and EWS III 3.2 systems

17. For Chrysler

18. For Citroen, Peugeot with CAN

19. For Daewoo 1

20. For Daewoo 2

21. For Fiat without CAN

22. For Fiat with CAN

23. For FSO Polonez

24. For Honda

25. For Kia Sportage 2.0TD

26. For Mercedes CR without CAN Infrared

27. For Mercedes CR1 with CAN WSP

28. For Mercedes CR1 with CAN EZS

29. For Mercedes CR1 with CAN infrared

30. For Mercedes CR2 with CAN WSP

31. For Mercedes ESL - steering wheel column lock emulator

32. For Mercedes ESL2 - steering wheel column lock emulator

33. For Nissan NATS 4 and 5 32.

34. For Opel immo with HC05

35. For Renault with CAN

36. For Renault without CAN

37. For Renault without CAN old ECUs

38. For Suzuki with X24C01 memory

39. For Suzuki with OKI memory

40. For Suzuki 93C56 memory

41. TMS 374 - For Citroen, For Peugeot, For Renault

42. For Yamaha

Seat Occupancy Sensor Programs:

1: For BMW Europe from 2007 to 2010 Models: E60, E63, E64, E65, E70, E71, E81, E90, E92, E93 without installed child seat

2: For Mercedes: E-class W211 from 2002 to 2004 with Temic airbag controller, S-class W220 from 2003 to 2005 without installed child seat

3: For Mercedes: E-class W211 from 2002 to 2004 with Temic airbag controller, S-class W220 from 2003 to 2005 with installed child seat

4: For Mercedes: A-class W168 from 1997 to 2001, C-class W202 from 1999 to 2001, Vito W638 up to 2003, ML 1999 with TRW airbag controller, E-class W210 up to 1999, before lifting with airbag OFF indicator without installed child seat

5: For Mercedes: A-class W168 from 1997 to 2001-class W168, C-class W202 from 1999 to 2001, Vito W638 up to 2003, ML 1999 with TRW airbag controller, E-class W210 up to 1999, before lifting with airbag OFF indicator with installed child seat

6: For Mercedes: E-class W210 from 1999 to 2003 with airbag OFF indicator after lifting, Vito W639 from 2002 to 2005, ML W163 from the year 2000, A-class W168 from 2002 to 2005, S-class W220 from 2000 to 2003, C-class W203 up to 2005, CLK W209, Vaneo without installed child seat

7: For Mercedes: E-class W210 from 1999 to 2003 with airbag OFF indicator after lifting, Vito W639 from 2002 to 2005, ML W163 from the year 2000, A-class W168 from 2002 to 2005, S-class W220 from 2000 to 2003, C-class W203 up to 2005, CLK W209, Vaneo with installed child seat

8: For BMW from 1997 to 2007 ,  Models from 1997 to 2003: E31, E36, E38, E39, E46, E53

 Models from 2003 to 2007: E60, E63, E65, E87, E90 . without installed child seat

9: For BMW from 1997 to 2007. Models from 1997 to 2003: E31, E36, E38, E39, E46, E53

 Models from 2003 to 2007: E60, E63, E65, E87, E90 . with installed child seat

10: For Mini Cooper from 2002 to 2005 without installed child seat

11: For Mini Cooper from 2002 to 2005 with installed child seat

12: For Mazda: Premacy, MX-5, 626, 323, 6 without installed child seat

13: For Mazda: Premacy, MX-5, 626, 323, 6 with installed child seat

Tacho Programs:

1. For Audi Q7 and A6

2. For Citroen C4 Picasso

3. For EMF Display

4. For Renault Kangoo 3 Display

5. For Renault Scenc II, Espace IV Tacho

6. For Renault Scenic Full

7. For Renault Scenic III + Navi

8. For VW Passat B6
