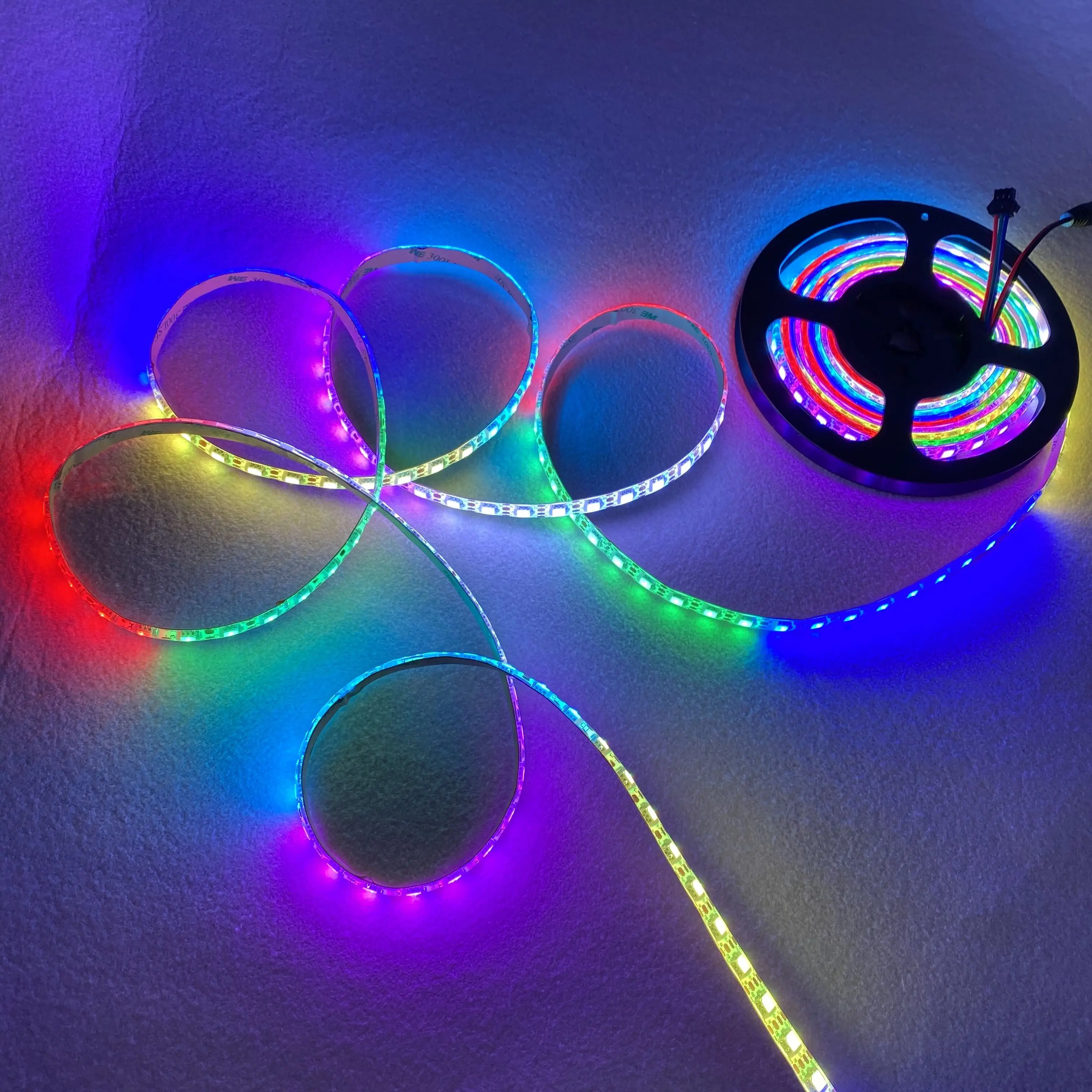

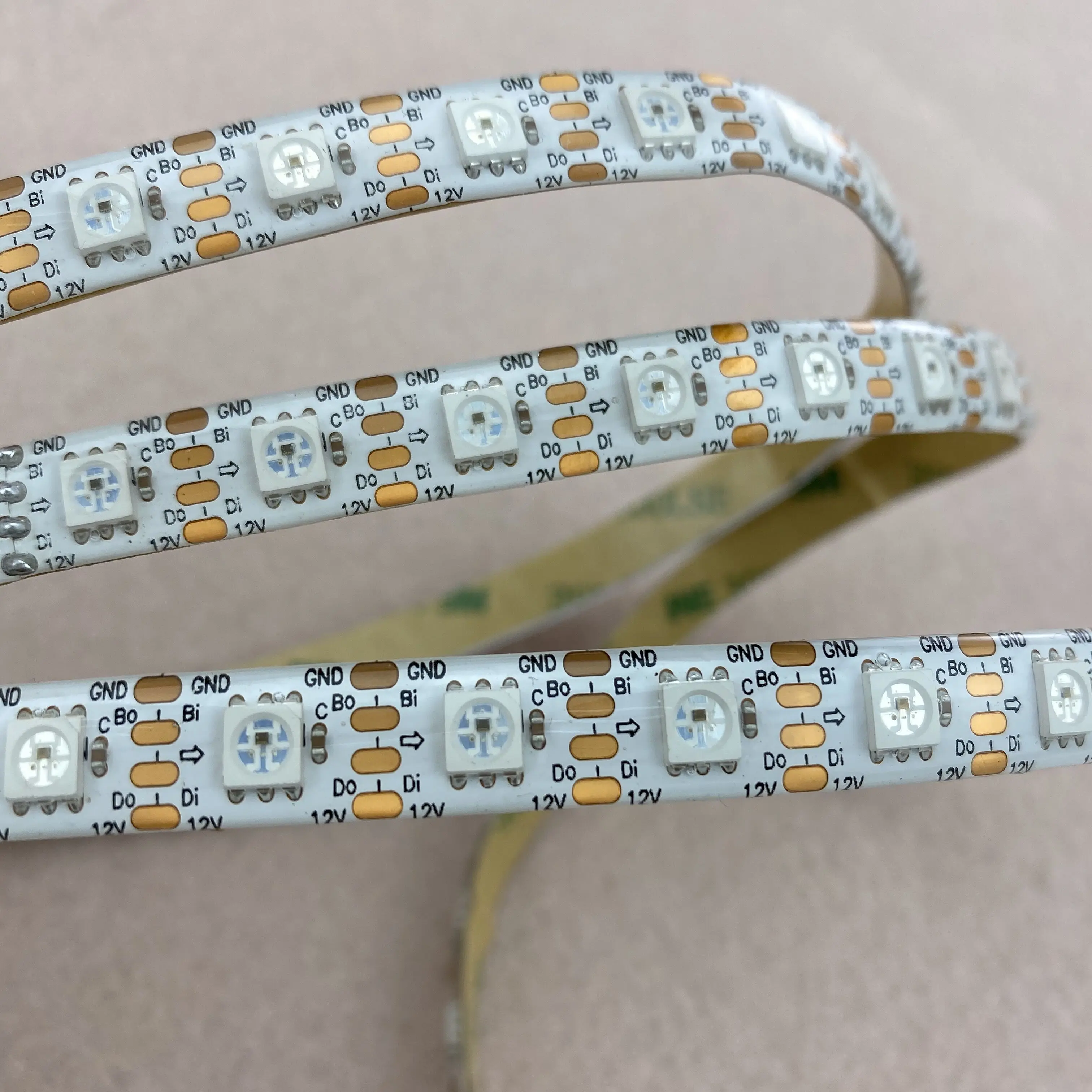

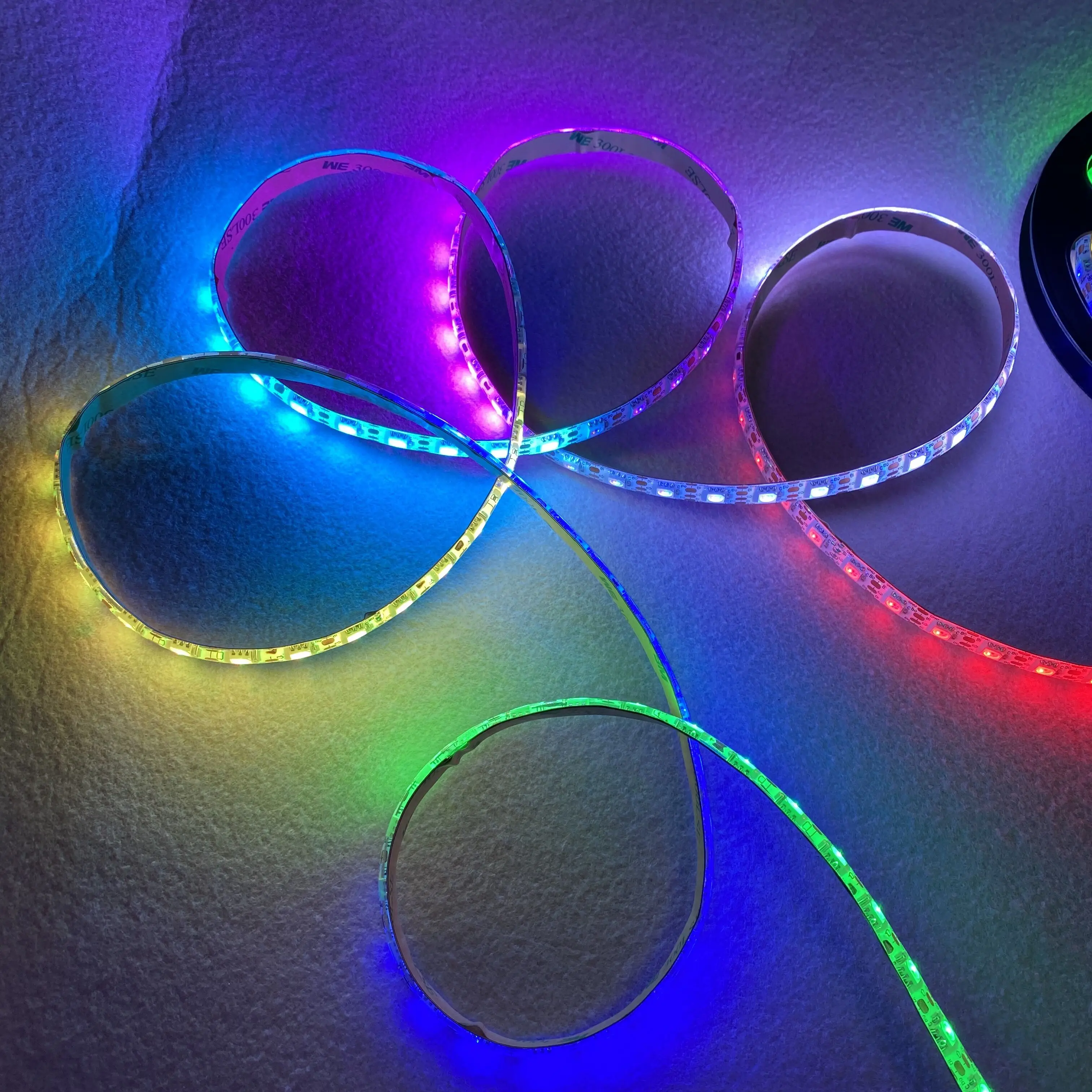

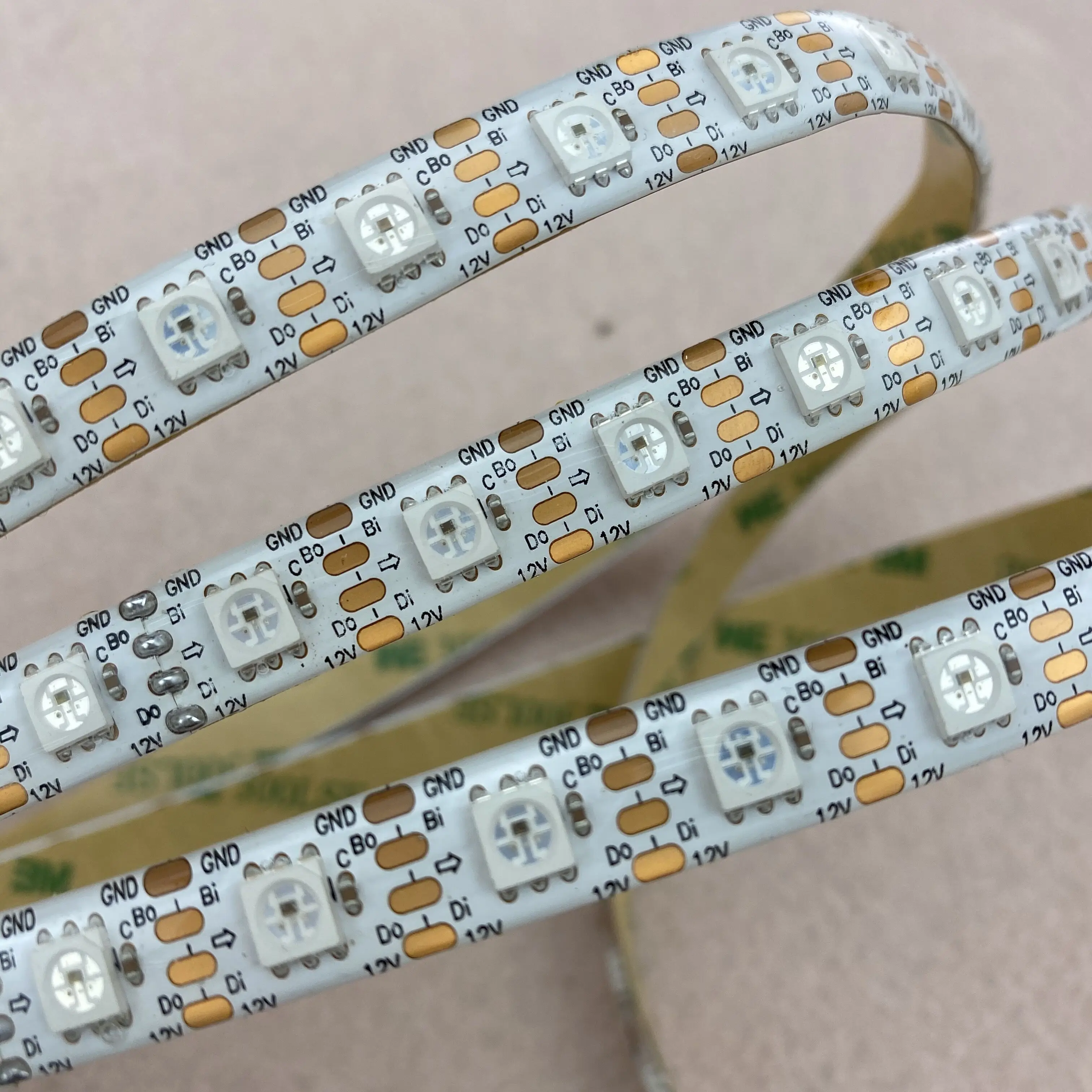

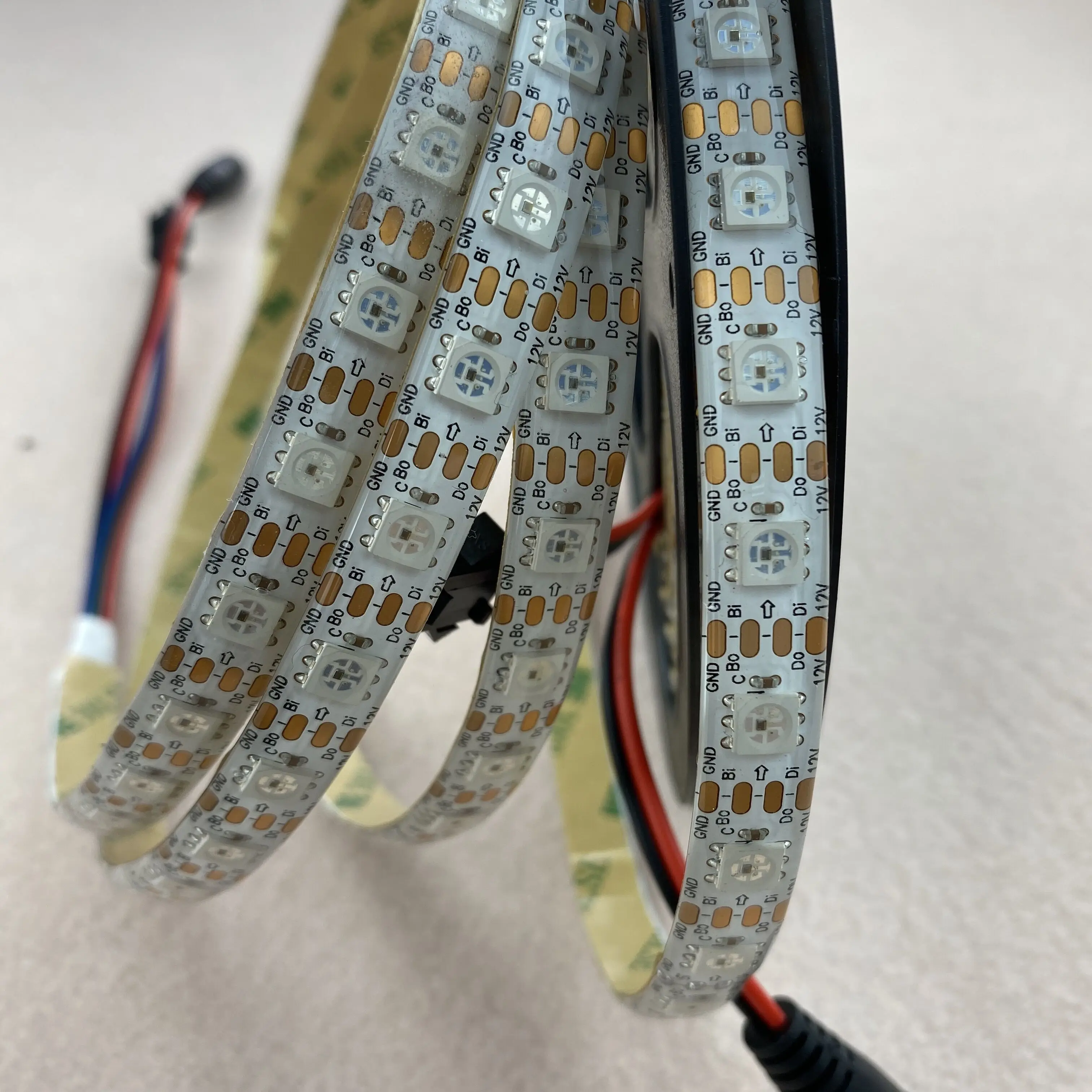

72leds/m SK6813HV-09-6P DC12V addressable full color RGB 5050 LED strip5mwaterproof in silicon coatingIP65 WHITE PCB | Лампы и

72leds/m SK6813HV-09-6P DC12V addressable full color RGB 5050 LED strip5mwaterproof in silicon coatingIP65 WHITE PCB | Лампы и

Input voltage:...............DC12V;

Power:.........................17watt/meter, 85watt/roll(5m);

LED resource:............. SK6813HV-09-6P (similar as WS2815,GS8208 LEDs)

https:/item/4000740149967.html?spm=2114.12010612.8148356.1.4c213629qRlGVV

Q'ty of LED: ................72leds/meter,360leds/roll, each LED is separately controlled

IC Type: ......................SK6813 12V IC(IC built inside the 5050 smd rgb led)

Q'ty of IC: ....................72IC/meter (1 IC drives 1 led chip);

Pixels:..........................72/meter;

Pitch: ..........................13.88mm(1000/72);

Grey scale: ..................256;

Bits/color: ...................8-bits/color;24bit for 3colors

FPC size: ....................Width: 10mm, High: 2.5mm;

FPC color: ...................WHITE PCB

 Protection rate.............waterproof in silicon coating;IP65

Colors: .........................Full color RGB, dream color changing;

Cuttable:.......................every LED is cuttable

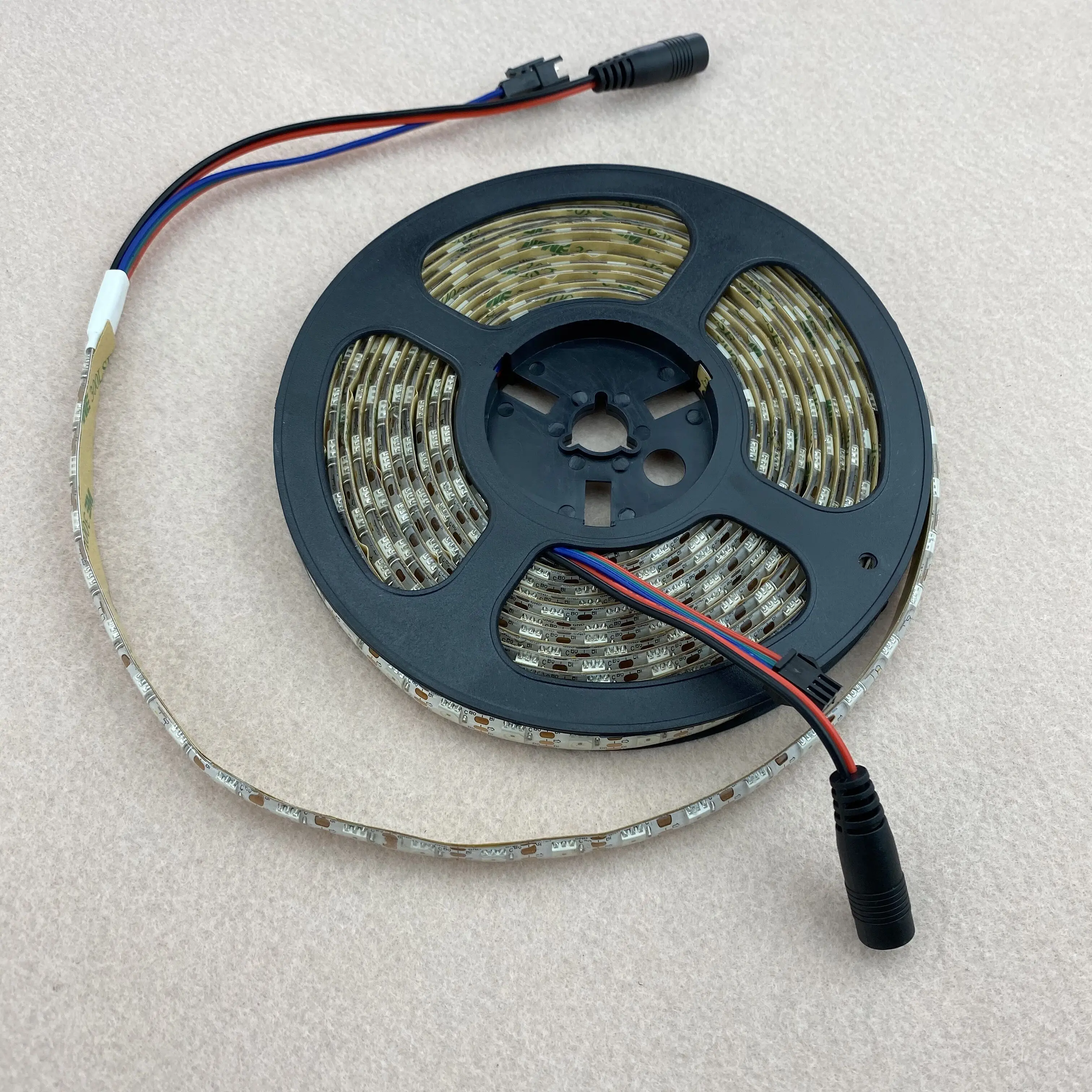

Package: ......................5 meters/reel in anti-static bag
