Recharge 2.4G ISM Wireless 192 DMX Console Stage Lighting DJ Equipment Battery DMX Controller for Disco Party LED Moving Head

Built-in Battery, Work about 72 hours.12 scanners control up to 16channels on each fixture. The scenes can be programmed into 6 chase sequences each holding up to 240 scenes which can be triggered by sound, manually by tap or automatically by the time faders between 0.1 seconds and 10 minutes. This controller is ideal for small theatres or stage applications.

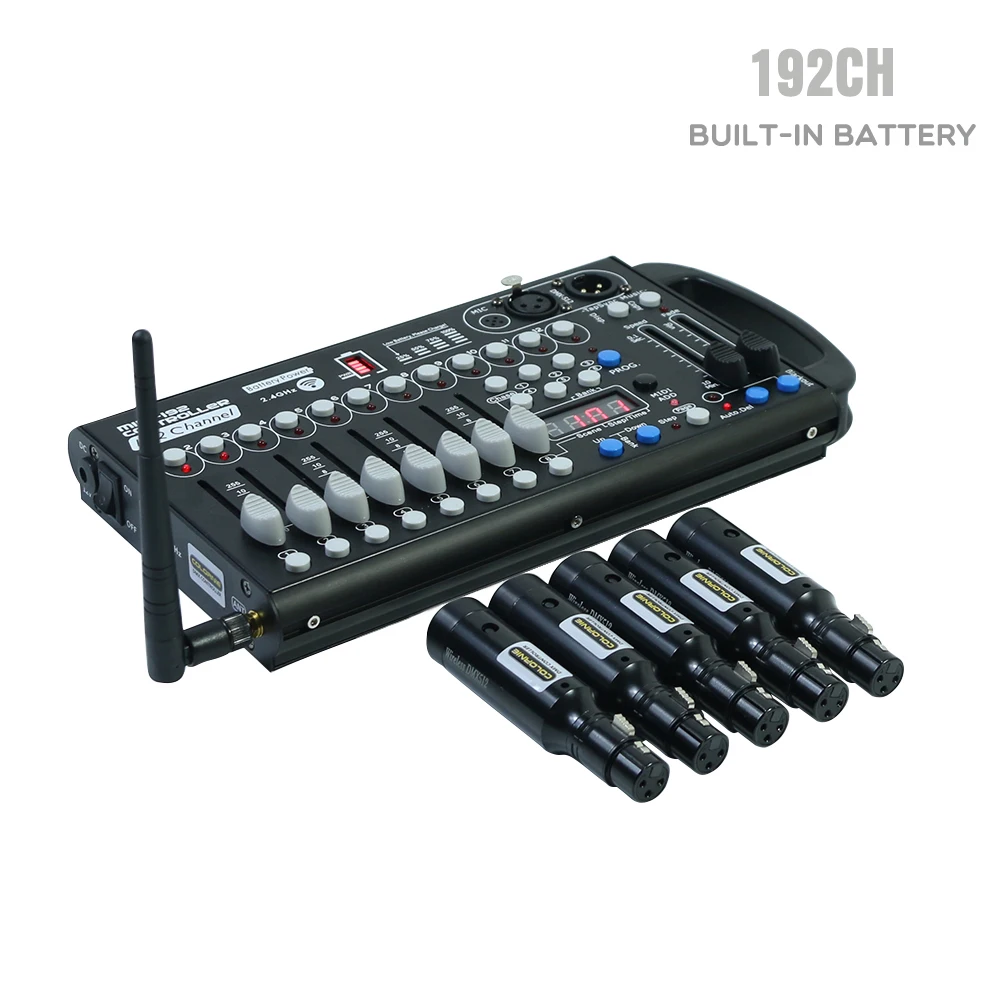

Console Features:

1. 12 fixtures each with 16 channels
2. 23 banks each with 8 programmable scenes ( 184 scenes in total )
3. 8 channel slider with page up and page down.
4. 6 chase banks
5. Music, auto or manually triggered chase sequences.
6. Speed control from 0.1 second to 10 minutes.
7. Blackout button.
8. DMX polarity switch at the rear.
9.19" rack mountable or can be used as a stand-alone unit.

Console Specification:

Built-in Battery, Work about 72 hours
Power Supply: AC90-240V
Number of channels: 192ch
Number of channels per page: 16ch
Standard control : DMX512
Operation temperature: -10 to 50 degree
Dimensions : 29x15x3cm
Weight : 1.5KG

Console Installation Operation:

1.Switch on via the power button on the side panel of the controller.
2.The controller will make a self-test
3.The power indictor lights up.
4.The DMX indicator will flash.
5.In the initial statur, the controller set on PAGE 1(CH1-CH16) and the page indicator lights up in Red.
6.If you want to control channels 17-32 press the page button until the page indicator lights up in Blue.
7.The master faders control the total dmx output of all channels.
Value 0 means all DMX outputs are closed.

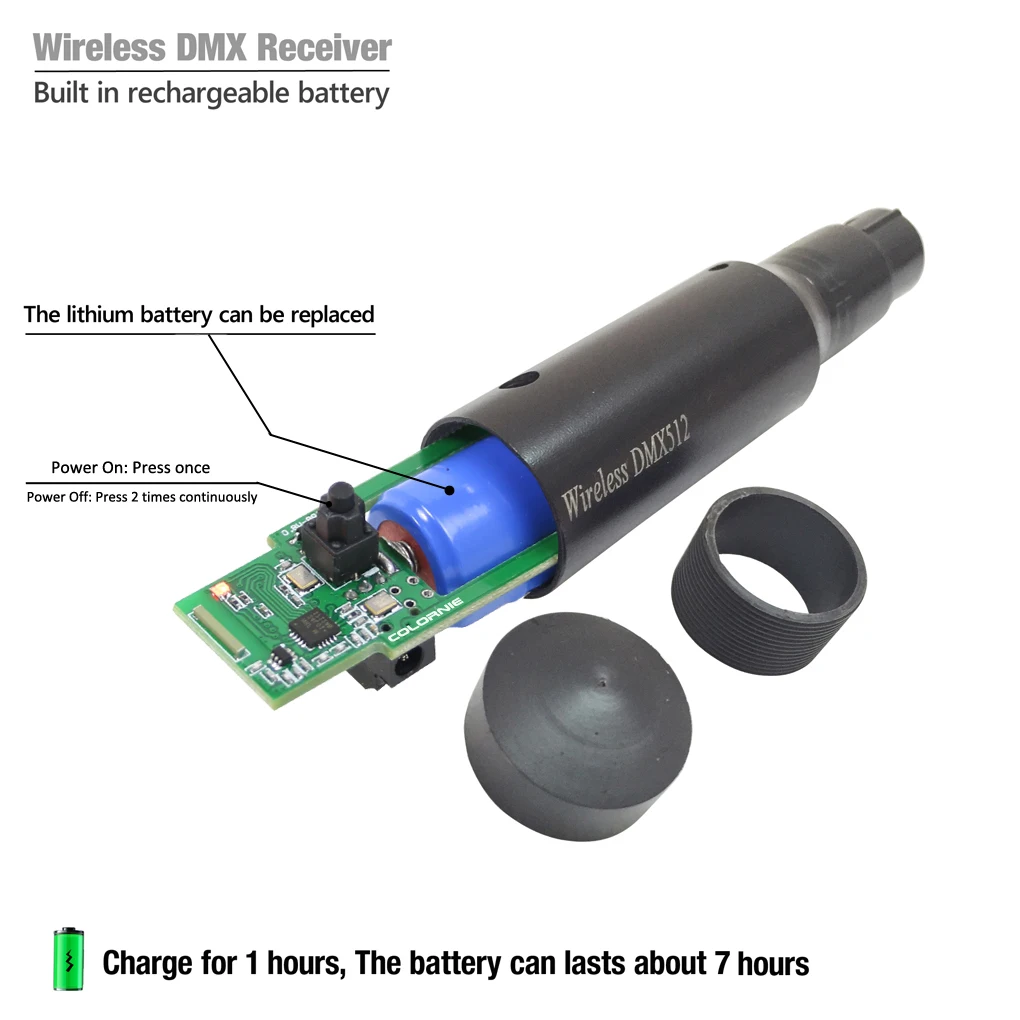

Receiver Features:

Latest design wireless DMX512 receiver have a built-in battery, don't need power adapter any more when it works. 2 hours full charging time, 9 hours working time. Users also can use the product while charging.
Metal Sliver Shell. ID Code "1-7" groups ID code, press 'KEY' for setting, it only can work under same ID code of transmitter and receiver. (Same LED Color).
This product adopts a 2.4G ISM frequency section. High effective GFSK modulate, communication design. No time delay when signal data is transmitting, signal data is real time and reliably.
RF frequency 2.400 - 2.525G 126 channels jumping frequency automatically, high anti-jamming ability.
The red LED flashes when transmitter transmits DMX data by no interfered frequency section, then receiver changes communicated frequency section. Green LED flash till received corrected same ID value, LED flash more fast once DMX data more fast.

Receiver Specification:

2.4G wireless DMX512 R/T
7 groups ID code settable, User can use 7 groups individual wireless net without any interfere.
Input voltage: 5VDC 500mA MIN
Communication distance: 400M (visible distance)
Battery: 16340 battery 3.7V 650mA
Max transmitting power rate: 20dBm
Receiver Sensitivity: -94dBm
CPU: 32-bit ARM Core
Modulation: GFSK
DMX Signal Interface: RS485
Operating temperature: -40 ~ 85 °C,Storage Temperature: -65 ~ 150 °C
Ambient Relative Humidity: 5 to 95% (non-condensing)
Automatic Reboot Trigger: Built-in WDT (watchdog timer)
Receiver built in Battery, charging 2hrs, can work 9hrs

FAQ:

Q : Can use this to make the microphones wireless ?

A : No....this is for wireless DMX control of lights not audio .

Q : Does it have a 5 pin adapter for connecting to the DMX port on a lighting console?

A : It is 3pin connector, if need 5pins pls contact with us.

Q : How many DMX addresses can be sent thru one controller and one receiver?

A : there are 7 channels and they are colored red green purple blue and so on. The controller needs to match the color using on all receivers.

Q : Have built-in battery?

A : Yes, the DMX console and The Receiver both built in battery

Package Including:

1 Console =1x 192ch Wireless DMX Console +1x Power Adapter +1x Manual

1 C 2 R =1x 192ch Wireless DMX Console +2 x Wireless Receivers + 3x Power Adapter +1x Manual

1 C 3 R =1x 192ch Wireless DMX Console +3 x Wireless Receivers + 4x Power Adapter +1x Manual

1 C 4 R =1x 192ch Wireless DMX Console +4 x Wireless Receivers + 5x Power Adapter +1x Manual

1 C 6 R =1x 192ch Wireless DMX Console +6 x Wireless Receivers + 7x Power Adapter +1x Manual
