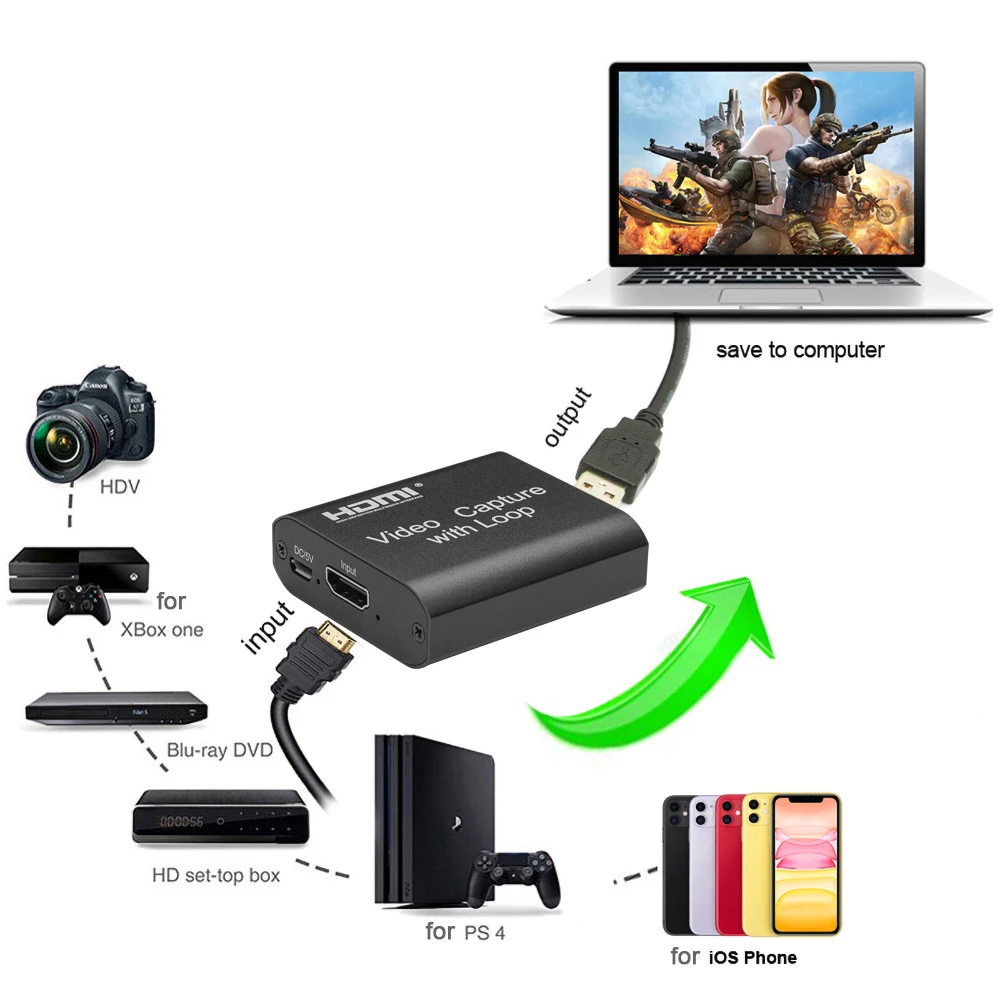

The video capture can capture both HDMI video and HDMI audio, sending audio

and video signals to computers and smart phones for preview and storage. Suitable for

high definition acquisition, teaching recording, medical imaging, etc.

Features:

The video capture can capture both HDMI video and HDMI audio, sending audio

and video signals to computers and smart phones for preview and storage. Suitable for

high definition acquisition, teaching recording, medical imaging, etc.

* Support HDMI loop out;

* Support input max resolution 4K;

* Support output max resolution 1080P;

* Support AWG26 HDMI standard cable: input up to 15 meters,

(1080P and below resolution);

* Support most acquisition software, such as VLC、OBS 、Amcap, etc;

* Support For Windows、Android and MacOS;

* Conform to USB Video and UVC standard;

* Conform to USB Audio UAC standard;

* Compact and portable.

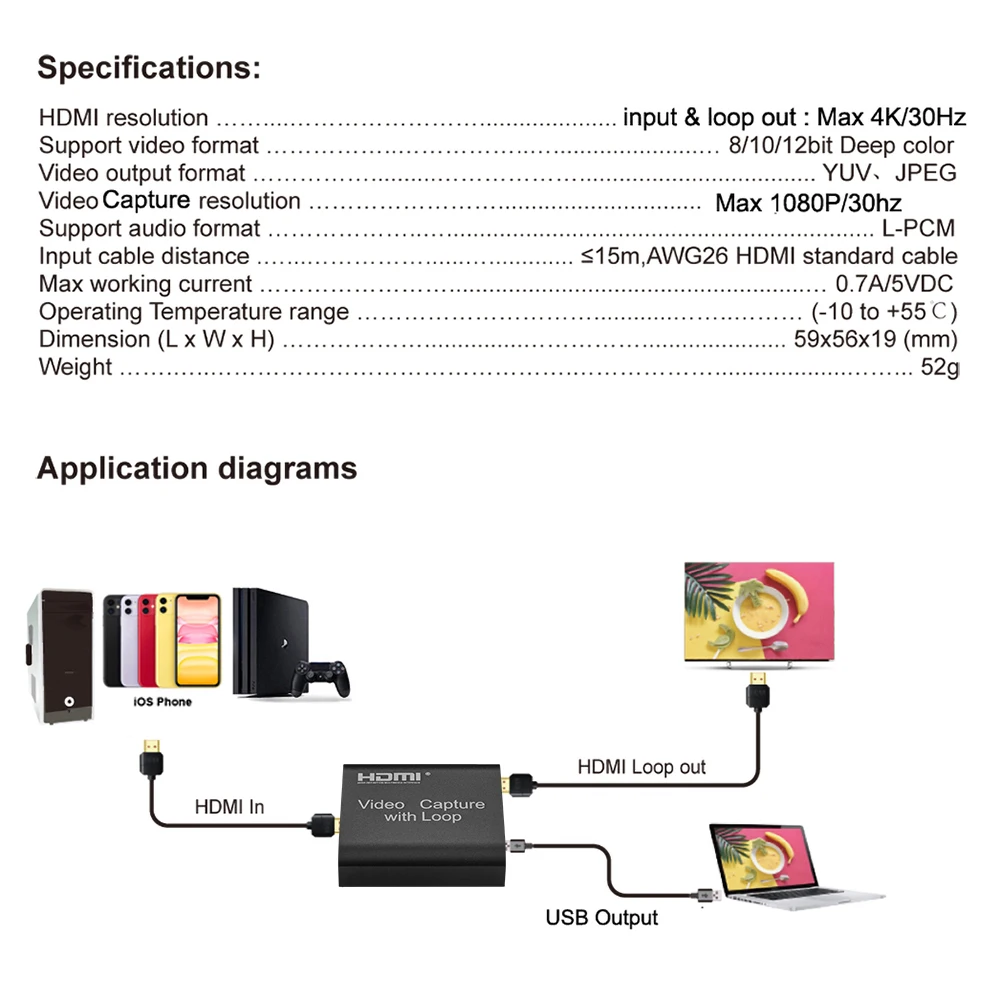

Specifications:

HDMI resolution ……....…………………….....................…...……… Max input can be 4K

Support video format ……………..……………..…......................… 8/10/12bit Deep color

Video output format ……………..........……………….................................... YUV、JPEG

Video output resolution ……………………............................... Max output can be 1080P

Support audio format ………………..…................................................................. L-PCM

Input cable distance .…...……………......…............. ≤15m,AWG26 HDMI standard cable

Max working current ……………………......................................................… 0.7A/5VDC

Operating Temperature range …………………………............……..……… (-10 to +55℃)

Dimension (L x W x H) ………………...............……………...................... 59x56x19 (mm)

Weight …….…..……………………………………….………………....................……... 52g

Packing list:

HDMI capture card * 1

USB data cable * 1

Micro USB power cord * 1

Instruction manual * 1

Note:

Computer hardware configuration requirements

CPU: for PC i5-3400 or above ；for NB i7-3537U 2.0GHZ or above

Graphics card: for PC NVIDIA GT630 or above；for NC NVIDIA GT735M or above

Run memory: 4G RAM
