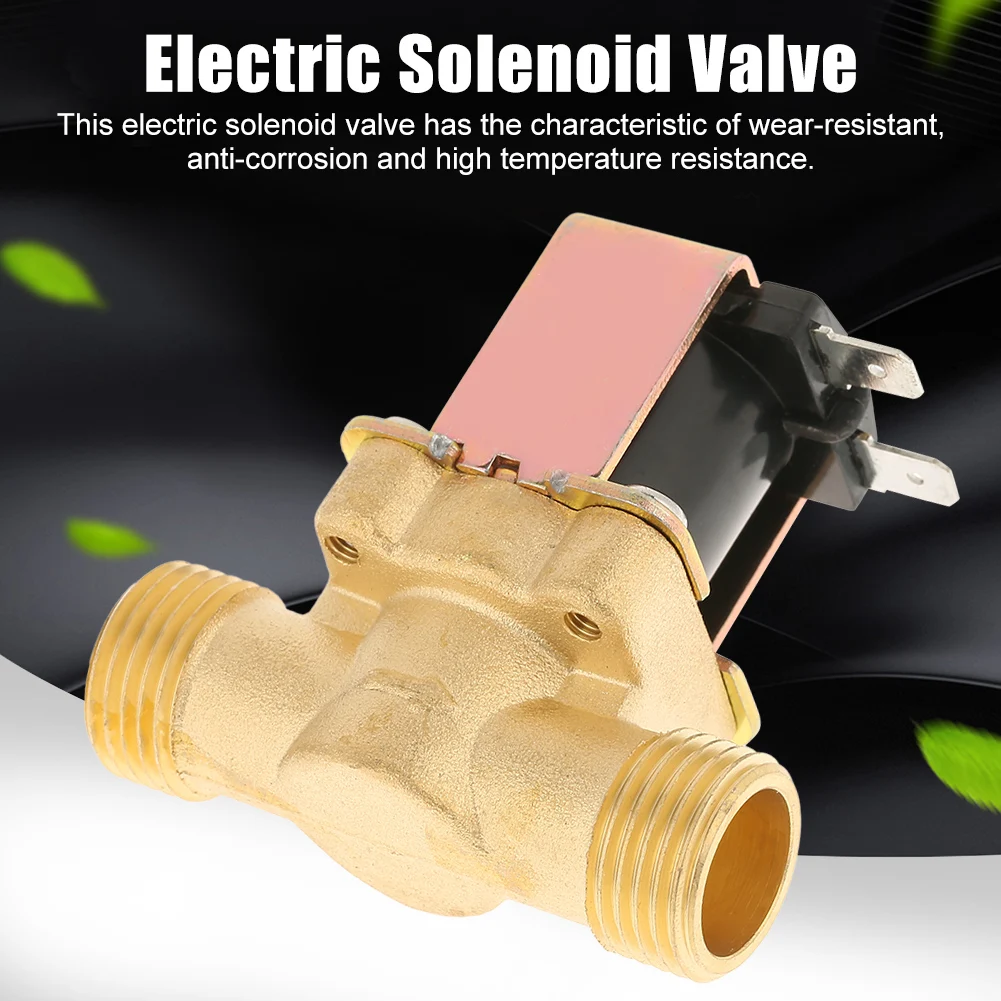

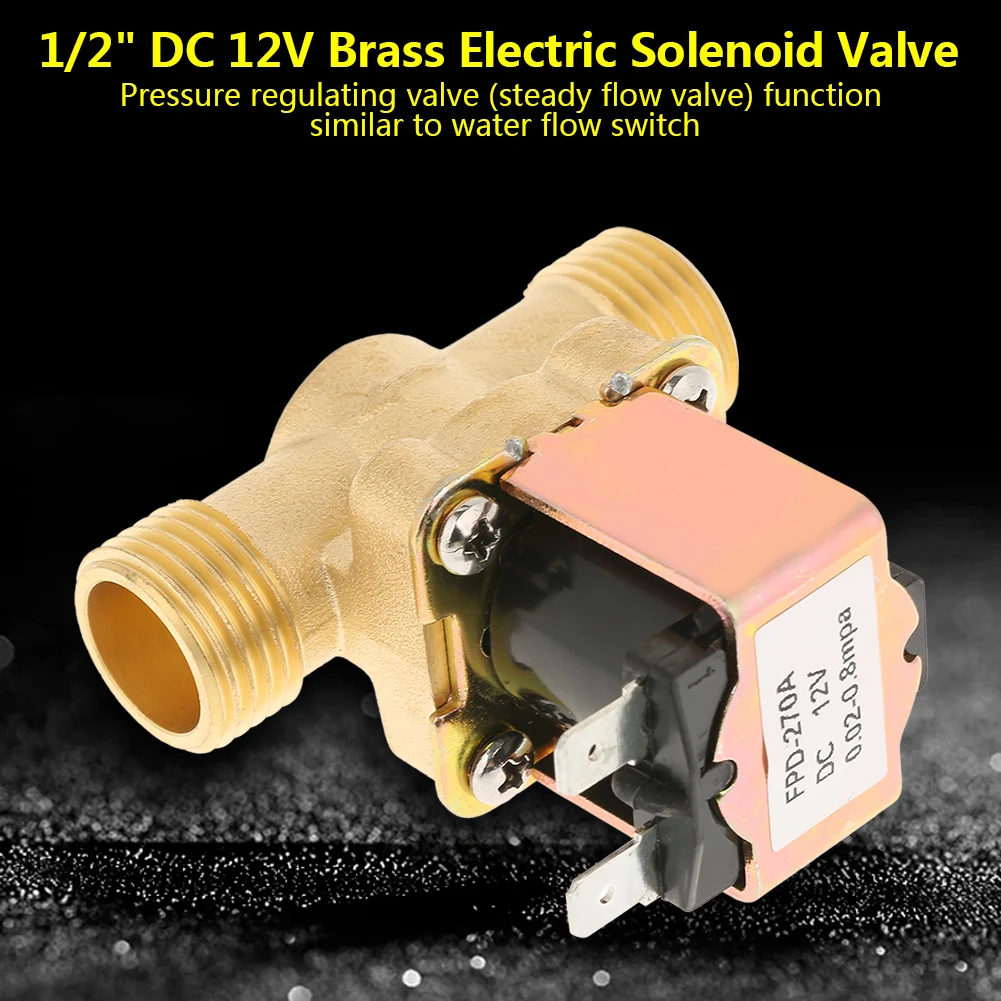

DC12V G1/2in NC Brass Electric Solenoid Valve Normally Closed Water Inlet Pressure Regulating Valve Water Control Dispense Tool

Descriptions:

This electric solenoid valve is all brass casting structure, precise and reliable,has the characteristic of wear-resistant,anti-corrosionand high temperature resistance.

Features:

This electric solenoid valve is all brass casting structure, precise and reliable

Pressure regulating valve (steady flow valve) function similar to water flow switch.

This solenoid valve not can keep the constant current steady flow, but also prevent the dry burning and monitoring the flow.

Mechanical no power consumption, steady flow adjustable.

This electric solenoid valvehas the characteristic of wear-resistant,anti-corrosionand high temperature resistance.

Suitable for water, high-end water heaters, intelligent drinking fountains, water heaters, straight drinking machines, water purification machines, steam machines, energy-saving air-conditioning, water treatment, cooling equipment and water industry and other fields.

Specifications:

Material: Brass
Voltage: 12V
Nominal diameter: 1/2"
Water pressure: 0.02-0.8Mpa

Size: 6.5 x 6 x 3.5cm / 2.56 x 2.36 x 1.38inch

Weight: 218g

1. Environmental conditions for inlet valve of low pressure solenoid valve
Altitude:< 2,500 meters
Ambient temperature: 0 to 40 ° C
Air relative humidity: <95% (25 ° C temperature)
2. Type and rated technical parameters
Type: guide (one-way) solenoid valve

Rated voltage: 12V
Rated current: 12v-300mA
Working mode: short-time quota system (intermittent duty cycle)
Insulation grade: E
Use of fluid: (0-55 ° C) water
Use water pressure: 0.02-0.8Mpa
3.Water flow characteristics
Water pressure (Mpa): 0.02, 0.1, 0.3, 0.8
Flow (L/min): > 5 >11 >18 >32

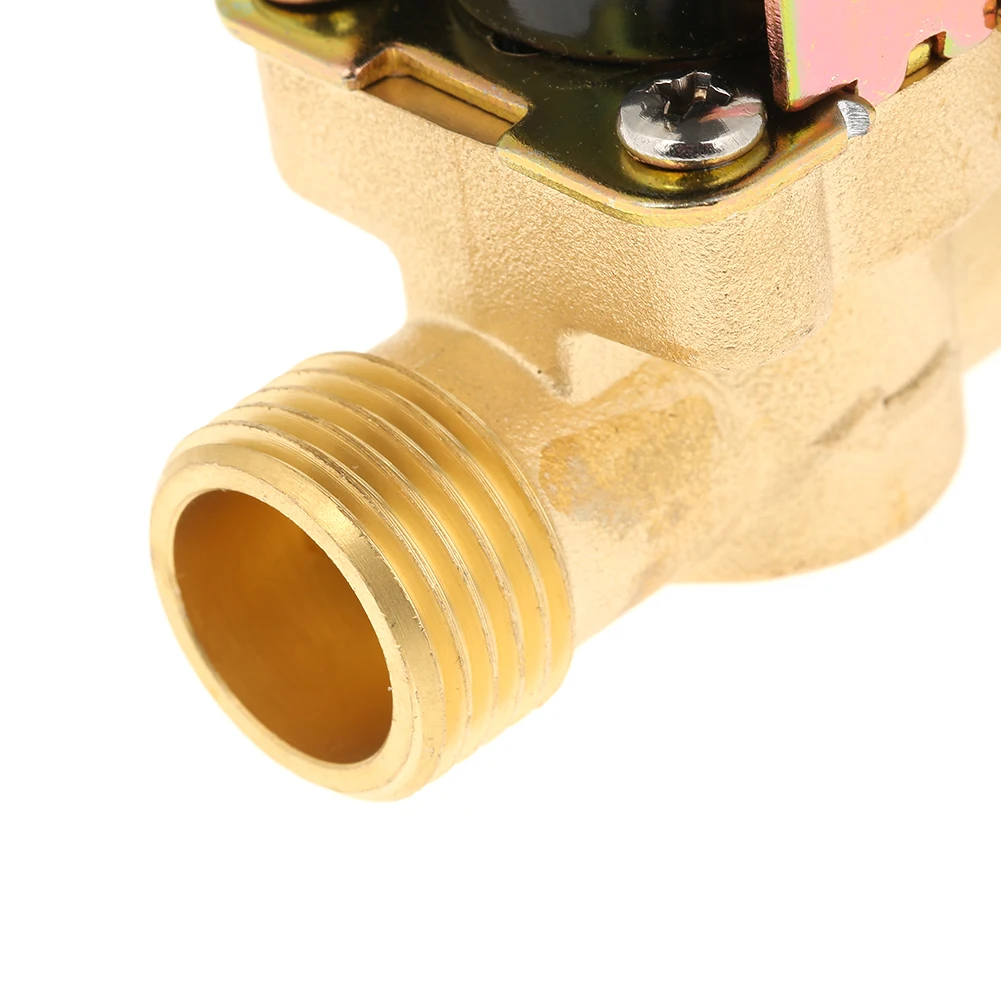

Nominal diameter: 4 points double thread, outlet diameter 13 (mm)
Life: > 100,000 times

Package Included:

1 xElectric Solenoid Valve
