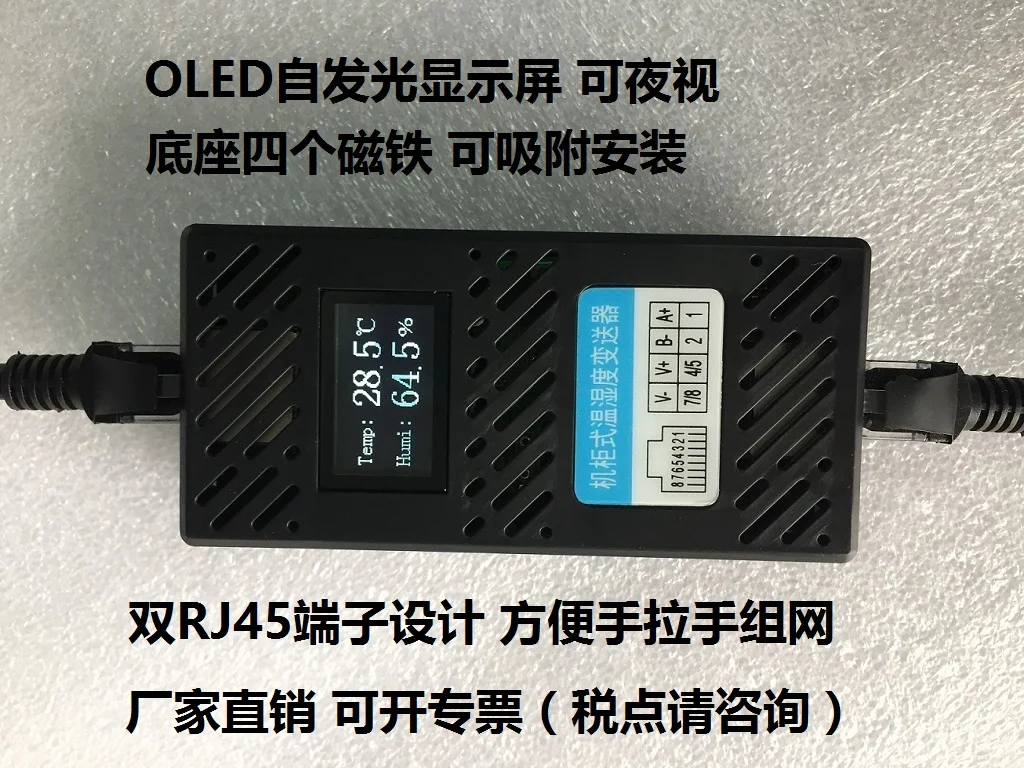

Cabinet type temperature and humidity transmitter sensor

OLED LCD screen self-luminous night vision

Magnet suction installation

Double RJ45 hand in hand wiring network

RS485 communication interface, Modbus RTU standard communication protocol

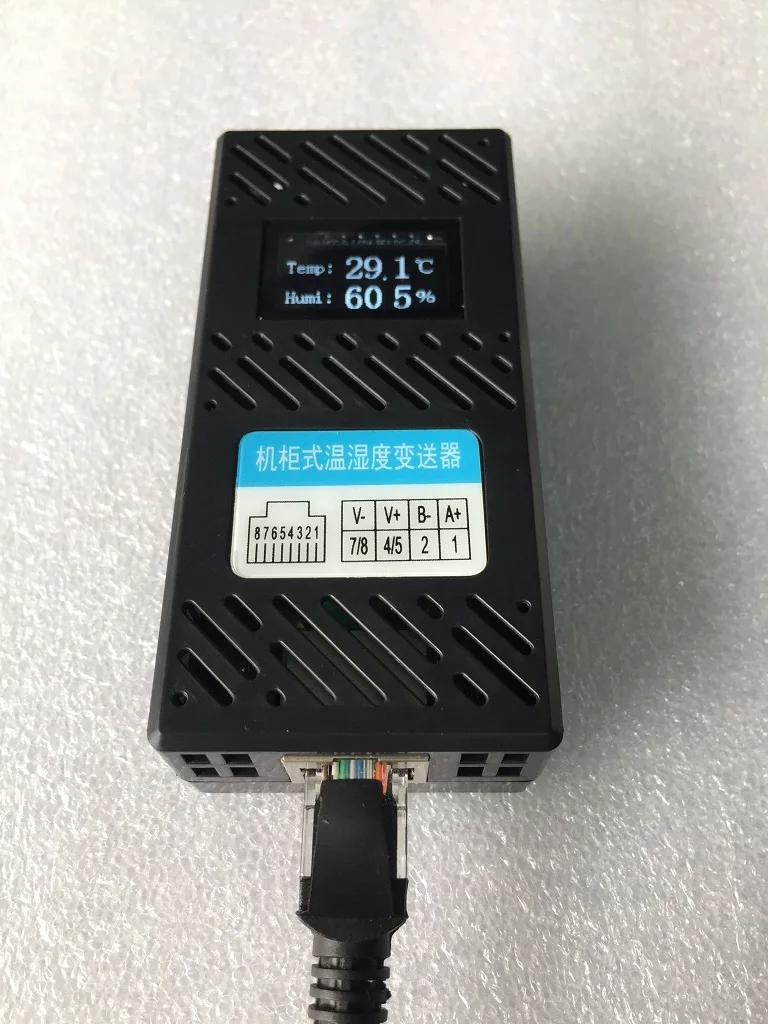

Our YDL-TH02 temperature and humidity transmitter is a cost-effective RS485 temperature and humidity transmitter with OLED liquid crystal display (self-illumination, night vision), which can obtain the current temperature and humidity values ​​in real time through RS485 communication.

YDL-TH02 built-in high-precision imported probe, good ventilation design, can ensure that the built-in probe is consistent with the ambient temperature in real time; OLED LCD screen display, self-luminous night vision, real-time indication of current temperature and humidity values; two RJ45 The terminal is convenient for users to realize RS485 hand-in-hand networking; four magnets are built in the bottom, which can be easily adsorbed on metal surfaces such as cabinets.

YDL-TH02 is a cost-effective cabinet temperature and humidity transmitter mainly for cabinet temperature and humidity monitoring. It can also be widely used in computer rooms, workshops, library and file management, laboratories and other places that require temperature and humidity measurement and control.

Features
1. Working voltage: DC5V-DC24V

2. Output mode: RS485 standard output;

3. Transmission rate: 2400, 9600bps optional;

4. Communication protocol: MODBUS RTU;

5. Working environment: -20℃ to 70℃ relative humidity is 5% to 95%;

6. High precision: temperature ±0.3℃, humidity ±3%;

7. Status indication: OLED liquid crystal display, self-luminous night vision;

8. Wall-mounted ceiling structure, double RJ45 terminals, easy to install wiring;

9. Built-in magnet at the bottom, which can be installed without screws on metal surface.

The main technical parameters
Working voltage: DC5V-DC24V

Measuring range: temperature: -20℃～70℃, humidity: 0～100%rh

Measurement accuracy: temperature: ±0.3℃ at 25℃, humidity: ±3%rh at 25℃

Connection: RJ45 terminal directly connected

Address: 1-64, set by DIP switch

Protocol: MODBUS RTU

Baud rate : 2400, 9600bps optional

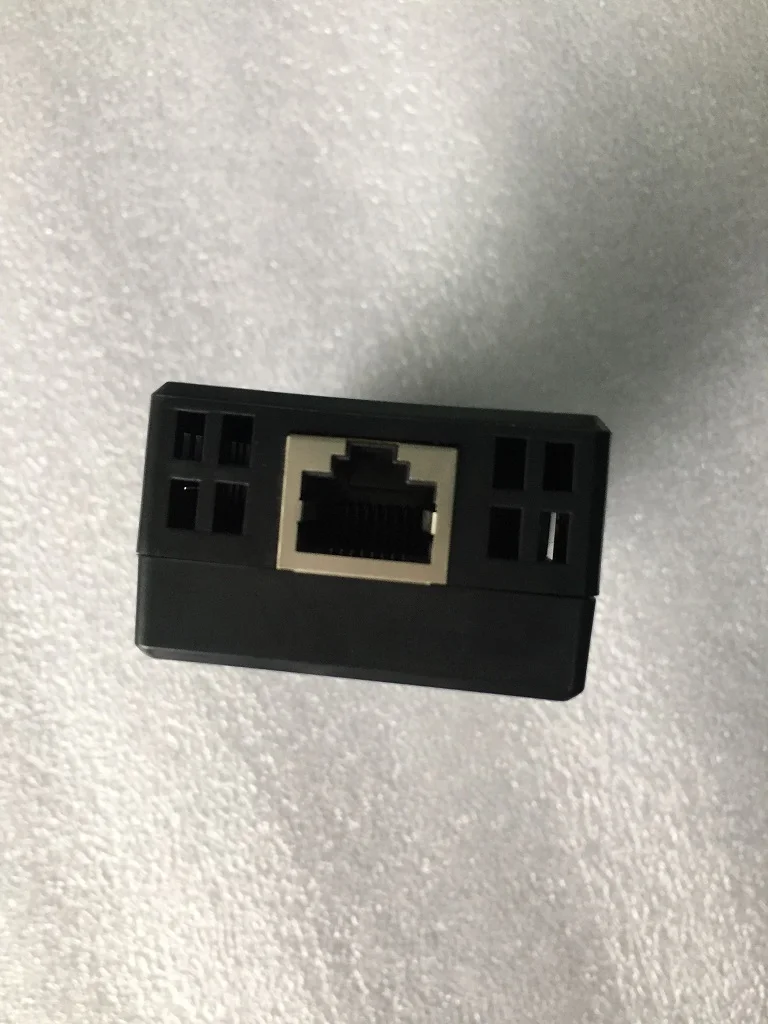

Double RJ45 terminal:

V+(4/5) System power + line

G-(7/8) System Power-Wire

A+(1) RS485 transmission + line

B-(2) RS485 transmission line

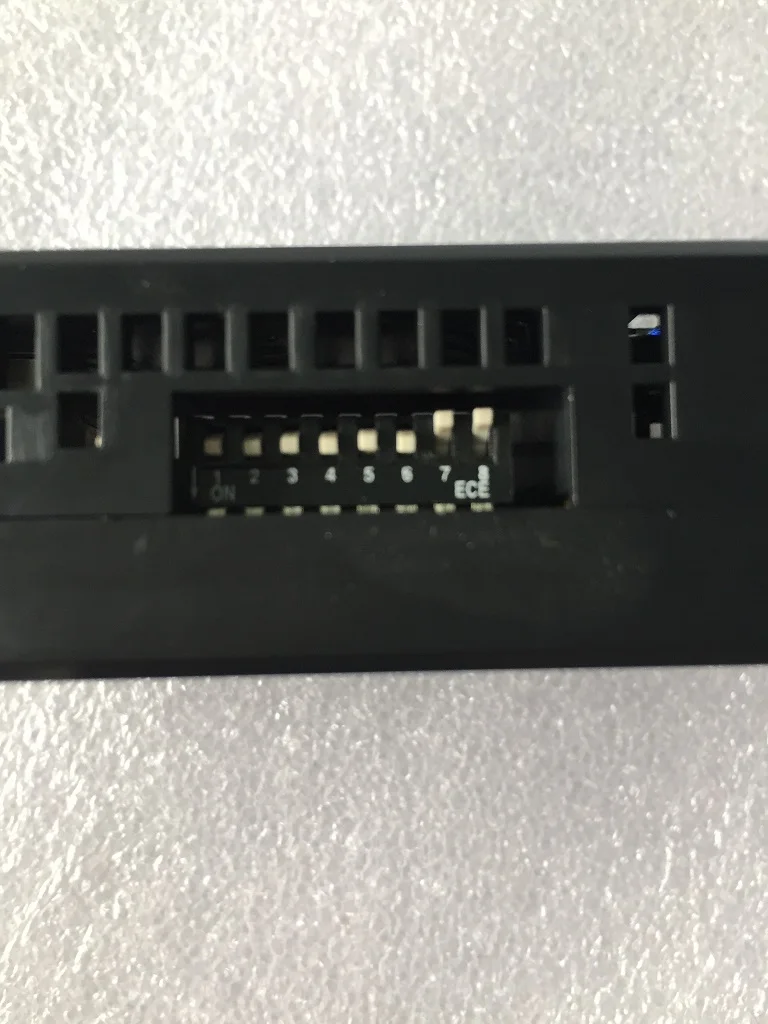

DIP switch:

The DIP switch indicates the value 0 downwards and the value 1 upwards.

1-6 digits: Set the RS485 address of the device in combination, and count in binary mode (B654321 + 1), fill in 0 or 1 according to the actual situation.

Bit 7: A value of 0 means polling to display temperature and humidity values ​​and debugging parameters; a value of 1 only displays the temperature and humidity interface.

Bit 8: A value of 0 indicates a baud rate of 2400bps; a value of 1 indicates a baud rate of 9600bps

Effective working area: 10-20m2/only

Installation method: magnet adsorption installation

Material: Fireproof ABS resin

Remarks: The two RJ45 terminal interfaces have the same definition, they are directly connected together internally, and the functions are the same.
