3000x1500mm Metal Enclosed Fiber Laser Cutting Machine 3000w

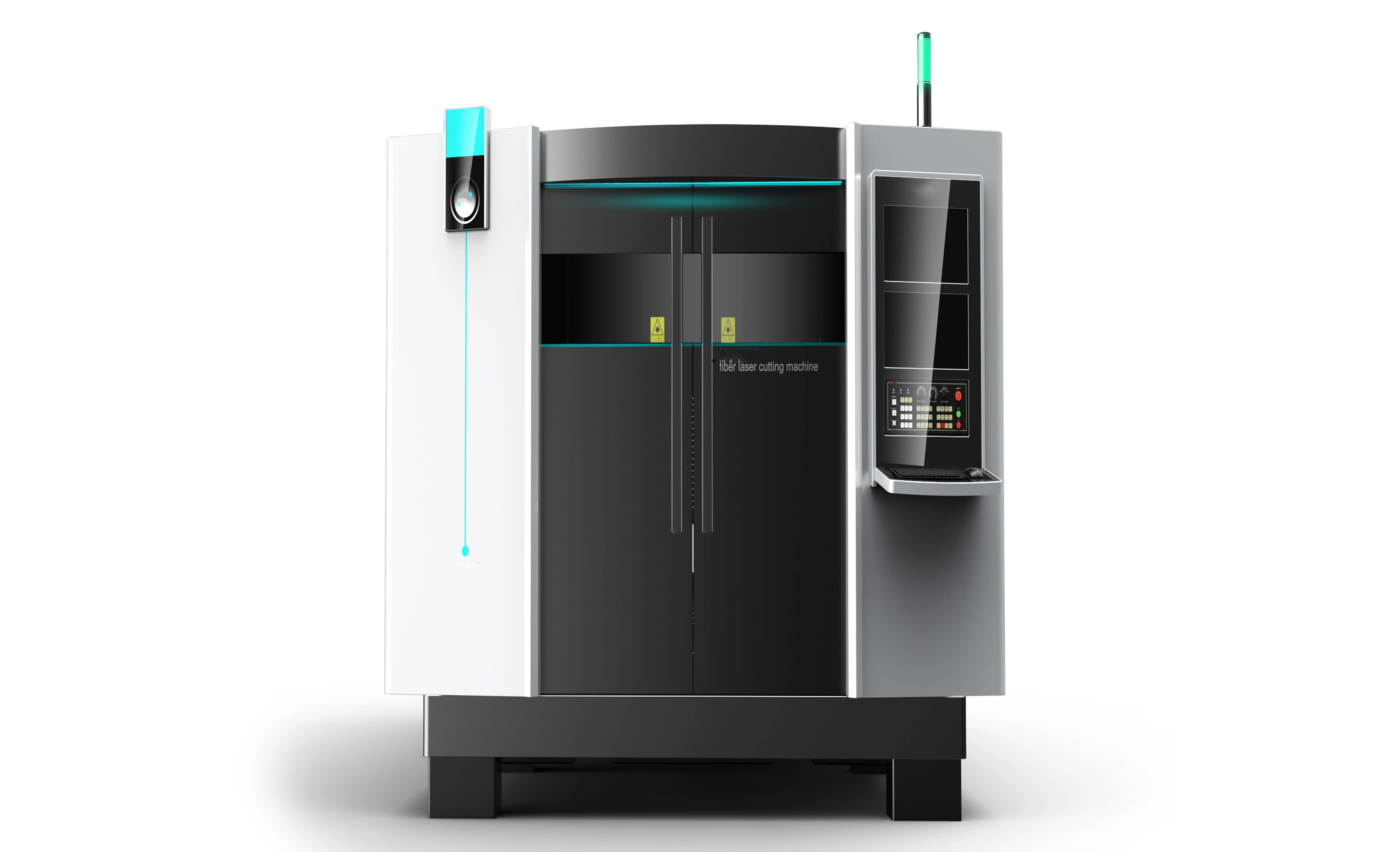

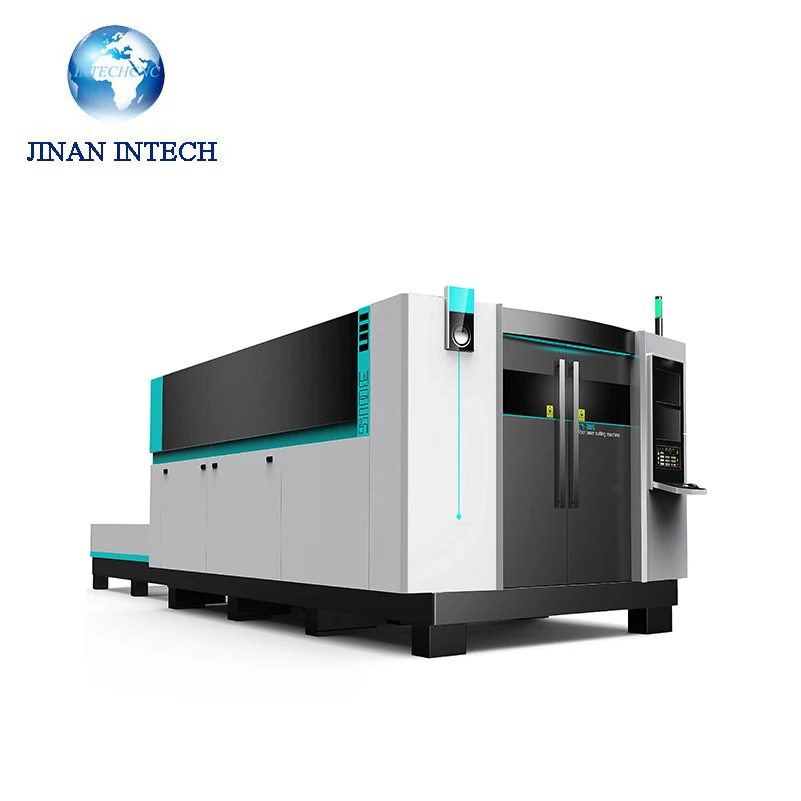

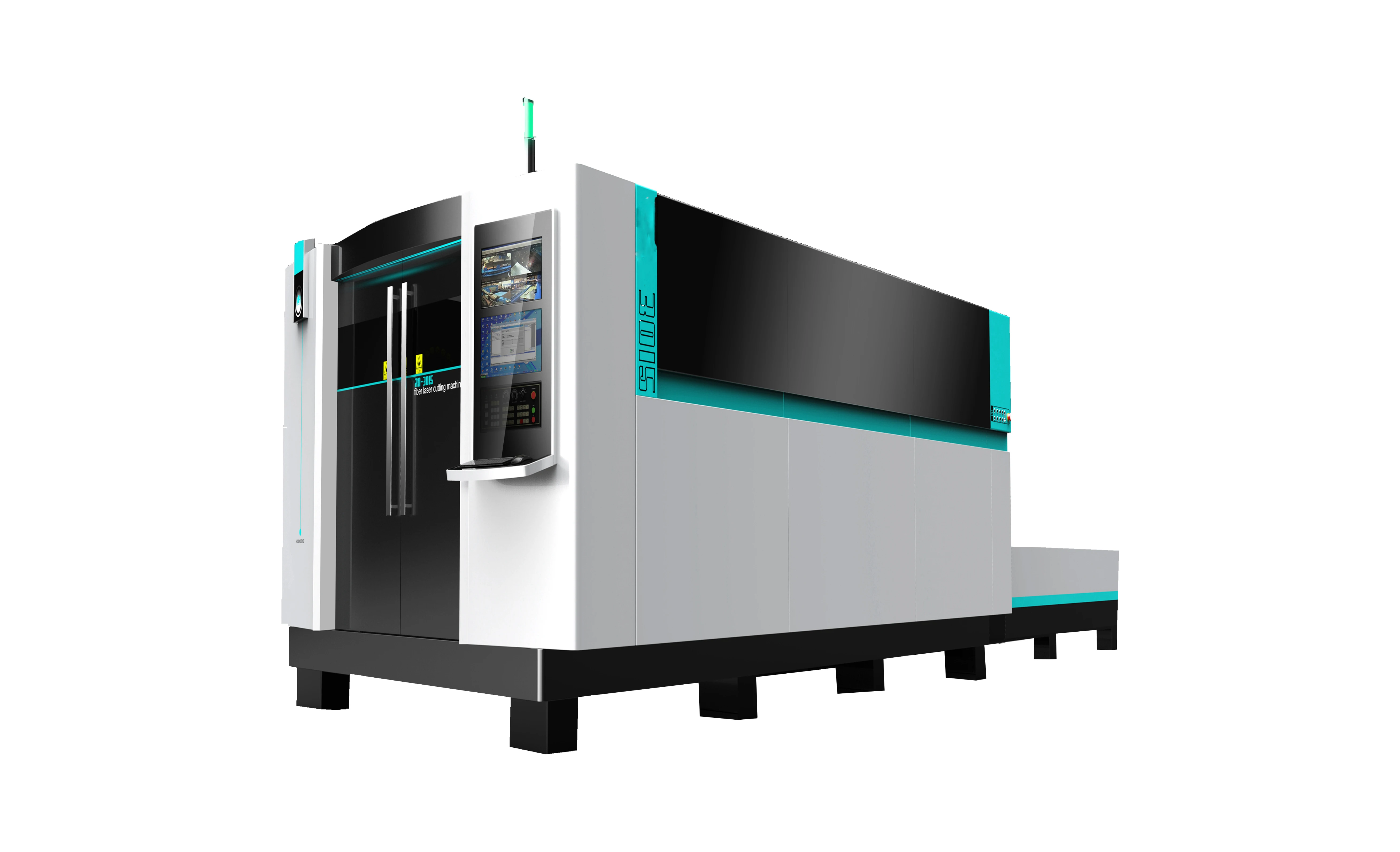

Jinan Intech LF3015 full protection shuttle workingable steel laser cutting machine is stable and

reliable light path system and control system. It has integrated design for the whole machine with

left and right funnels as collectors to save space. It can cut metal sheets and metal pipes ,and it

is cost-saving and has high performance-price ratio.

Features of 3000x1500mm metal enclosed fiber laser cutting machine 3000w

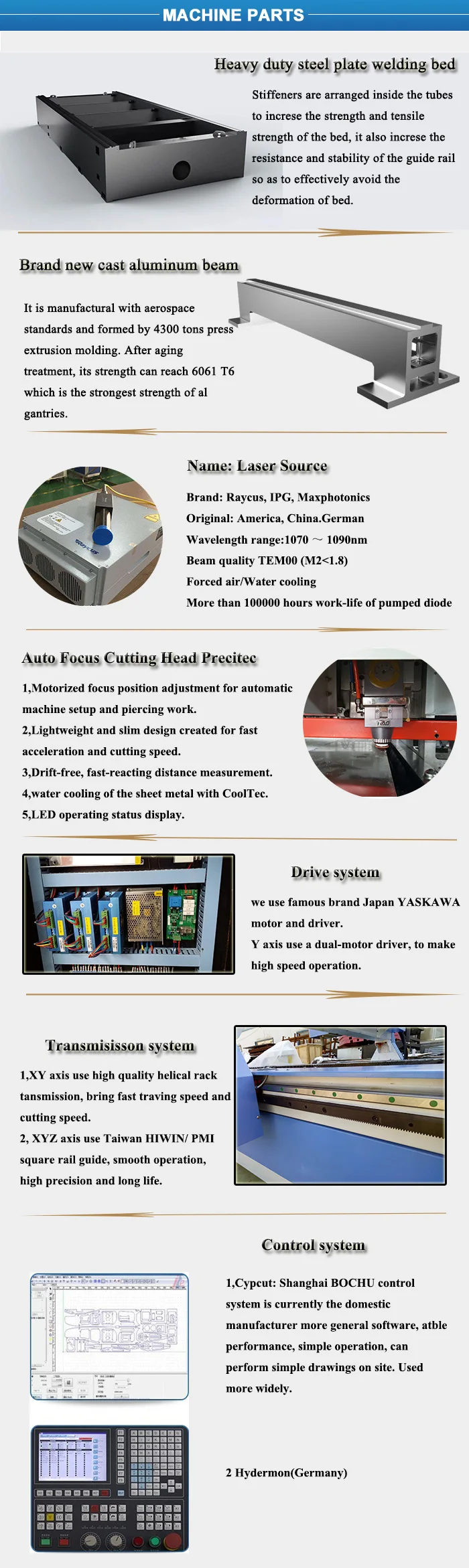

1.High rigidity heavy chassis, reducing the vibration generated during the high-speed cutting process.

2.Gantry double-drive structure,with imported Germany rack & gear transmission system, which

improves the production efficiency.

3 High-performance cast aluminium guide rail, after infinite aalysis ,which accelerates the cicular

arc cutting speed.

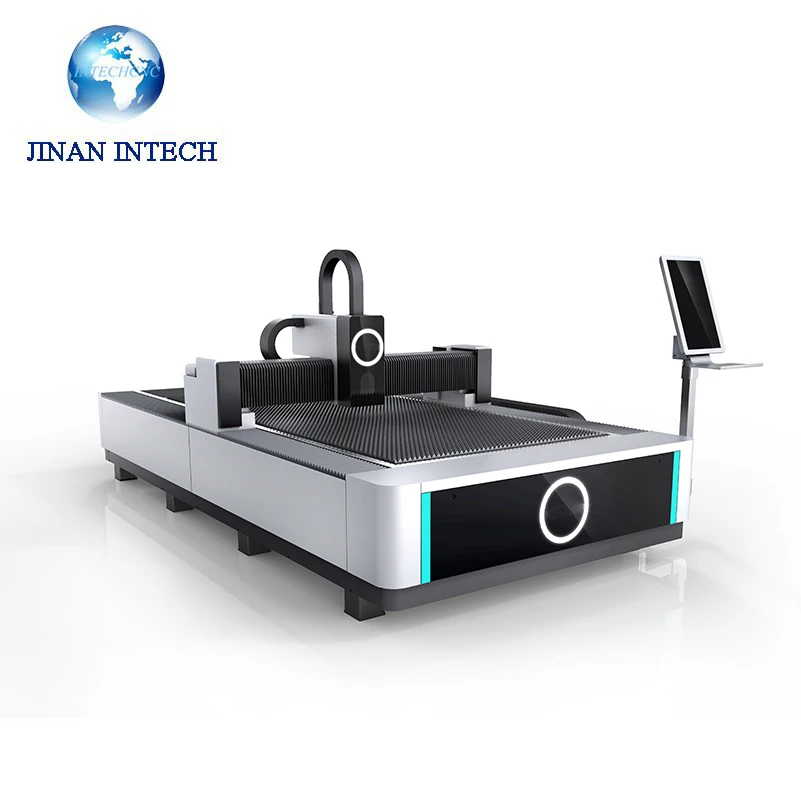

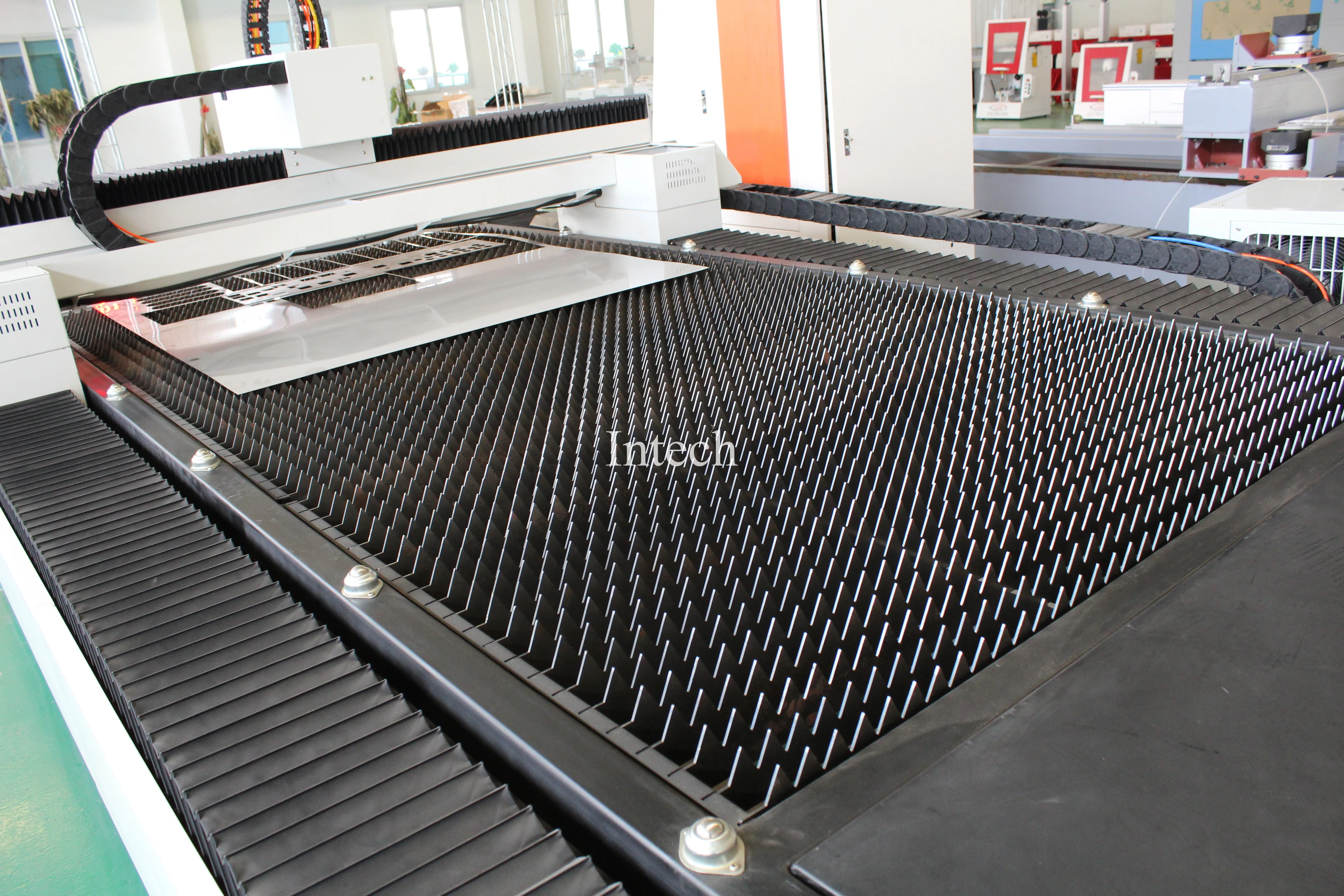

4.Open worktable, easy operation and small space occupation.

5. High precision, fast speed, narrow slit, minimum heat affected zone, smooth cut surface and no burr.

6. The laser cutting head does not come into contact with the surface of the material and does not

scratch the workpiece.

7. The slit is the narrowest, the heat affected zone is the smallest, the local deformation of the

workpiece is very small, and there is no mechanical deformation.

8.It has good processing flexibility, can process any pattern, and can cut pipes and other profiles.

9. Non-deformable cutting can be performed on materials of any hardness such as steel plates,

stainless steel, aluminum alloy plates, and hard alloys.

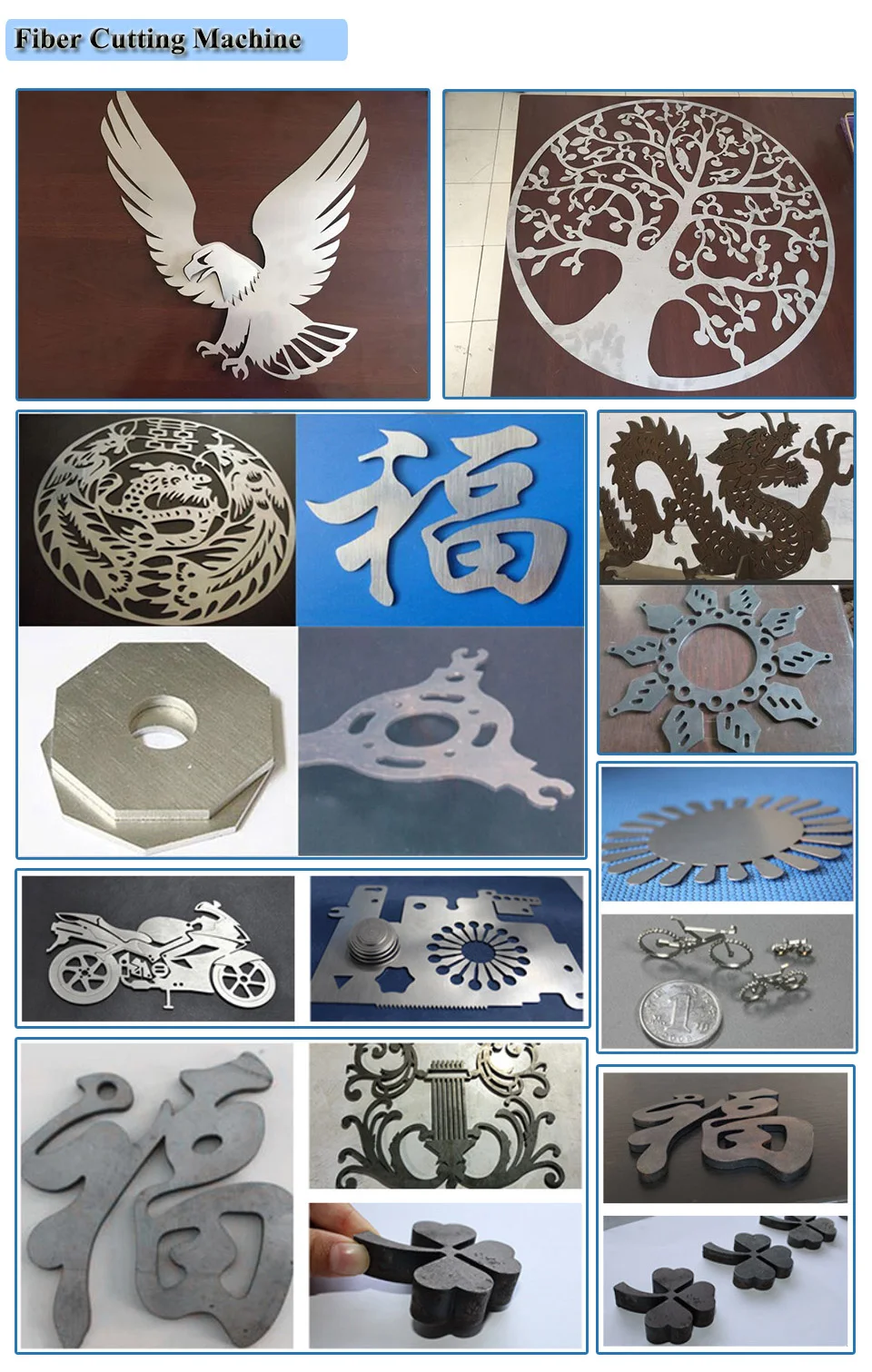

Application of 3000x1500mm metal enclosed fiber laser cutting machine 3000w

Applied materials and Industry:

(Metal Material):

Mainly used for cutting carbon steel, silicon steel, stainless steel, aluminum alloy, titanium alloy,

galvanized steel sheet, pickling board, aluminum zinc plate, copper and  many kinds of metal

materials cutting and so on.

(Metal Industries):

Applied in sheet metal processing, aviation, spaceflight, electronics, electrical appliances,

subway parts, automobile, machinery, precision components, ships, metallurgical equipment, elevator,

household appliances, gifts and crafts, tool processing, adornment, advertising, metal foreign processing

various manufacturing processing industries.

1

Machine Name

3000x1500mm metal enclosed fiber laser cutting machine 3000w in iran

2

Model

LF1530

3

Laser machine cutting area

1500x3000mm

4

FiberLaserPower

500w/750w/1000/1500/2200/3300/4000/6000/8000/12000/25000W

5

Laser wave length

1064nm

6

Transmission system

Gear + rails

(we have standard brand,we can also produce as your requirements)

7

X.Y axis location accuracy

±0.01mm

8

X.Y axis repeat location accuracy

±0.01mm

9

X.Y axis max moving speed

30m/min

10

Max cutting speed

1--30m/min(it will according to metal material and laser power)

11

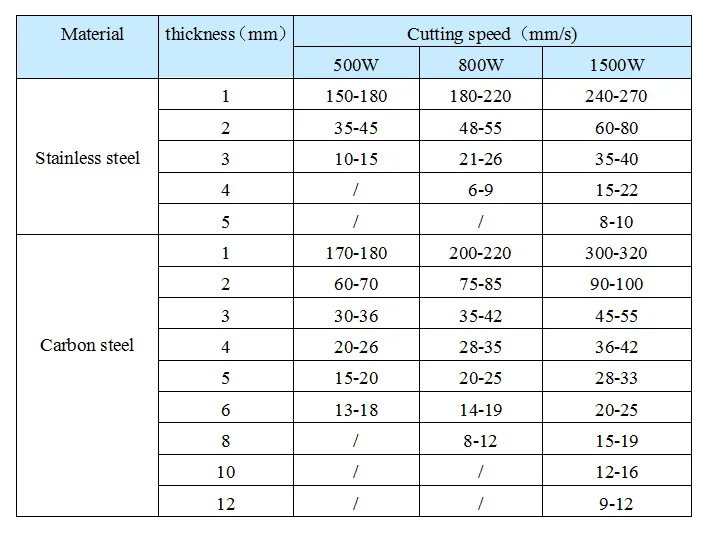

Cutting thickness

Detailed in the following cutting thickness

12

Application Material

Metal sheet

Iron/CS/SS/Aluminum/Copper and all kinds metal

13

Advantages

>Excellent beam quality
>Simple , compact, electrically and optically efficient
>Compatibly powerful and reliable
>Maintenance free
>multilingual, more than 11 foreign languages
>3 years warranty .

14

Gross weight

5000KG

15

Net weight

4500KG

16

Machine size

4800*2600*2060mm

Product  selection

Q1 :How about warranty?

A1:3years quality guaranty, the machine with main parts(excluding the consumables) shall be   changed free of charge(some parts will be maintained) when if any problem during the warranty period.

Q2:2 I don’t know which one is suitable for me ?

A2:Please tell me your

1)Your materials

2)Max size of your material

3)Max cut thickness

4)Popular cut thickness

Q3:Payment terms?

A3:Alibaba trade assurance/TT/West Union/Payple/LC/Cash and so on.

Q4:Do you have CE document and other documents for customs clearance?

A4:Yes,we have Original. At first we will show you and And after shipment we will give you CE/Packing list/Commercial Invoice/Sales contract for customs clearance.

Q5:I don’t know how to use after i receive Or i have problem during use,how to do?

A5:

1)We have detailed user manual with pictures and CD,you can learn step by step.And our user   manual update every month for your easy learning if there is any update on machine.

2)If have any problem during use,you need our technician to judge

The problem elsewhere will be solved by us. We can provide team viewer/Whatsapp/Email/Phone/Skype with cam till all of your problems finished.We can also provide Door service if you need.
