Please note that Big end width: 19.9mm

Application
For VW Golf MK4 Gti 1.8T 19mm Pin Connecting Rod
for VW Golf  Gti 1.8T 225 2.0 16V 20V
for Audi A3 A4 A6 S4 TT 1.8 Turbo
for Audi S3 A3 A4 A6 TT 1.8T
for VW Passat Golf Gti 1.8T 225 2.0 16V 20V

Fitment Details:

for Audi A3 8L1 1996-2003 1.8T
for Audi A4 B5 1994-2001 1.8T
for Audi A4 B6 2000-2004 1.8T
for Audi A6 C5 1997-2005 1.8T
for VW Golf MK IV 1997-2006 1.8T
for VW Passat 3B5 1997-2000 Estate 1.8 T

Specification

Piston Bolt Hole: +-4/1000mm
Power: 600hp ~ 800PS per set
Torque: 28ft

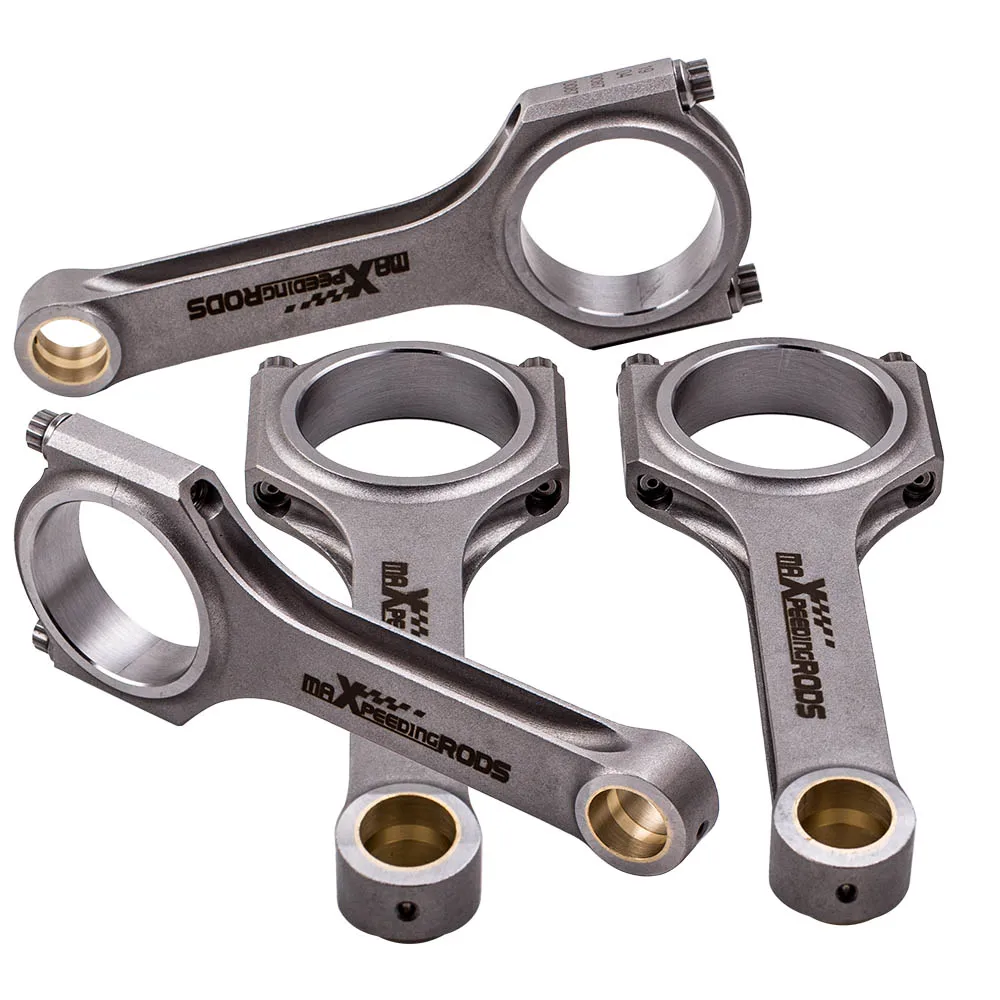

Quantity: 4 Pieces a set as showing in picture
Bolts: Including Genuine ARP 2000 5/16" bolts (Note Extra cost for upgrading to ARP L19 bolts)

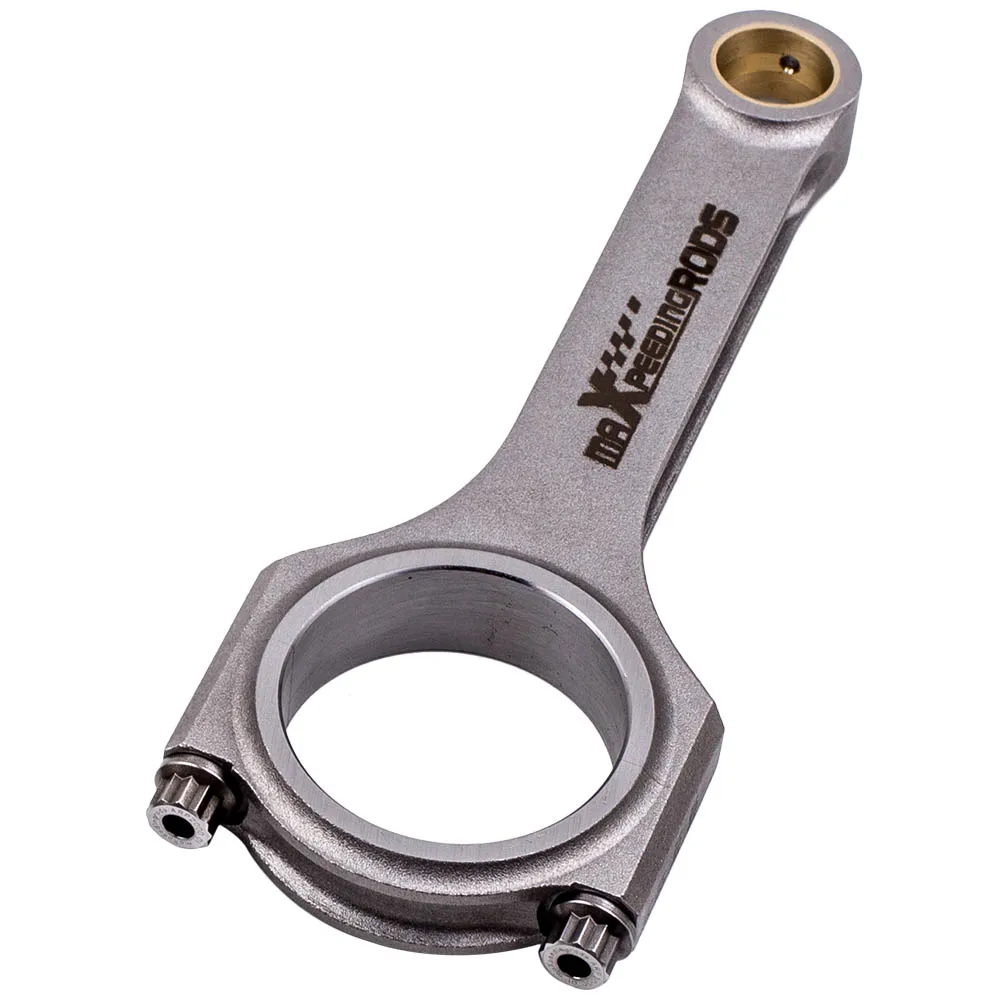

Type: 4340 EN24 H-Beam Connecting Rod
Weight Tolerance: Balanced to +/- 1 gram in set
Warranty: 2 years warranty.

- Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing
- Designed and processed by CNC machine.
- All big and small ends are finished with SUNNEN honing machine
- 100% X-rayed, sonic tested and magnafluxed
- Multi-stage heat treated
- Shot peened to relieve stress
- Come with the bronzed bushing suitable for the floating piston pin

Dimensions

Center to center length: 144mm/5.67"

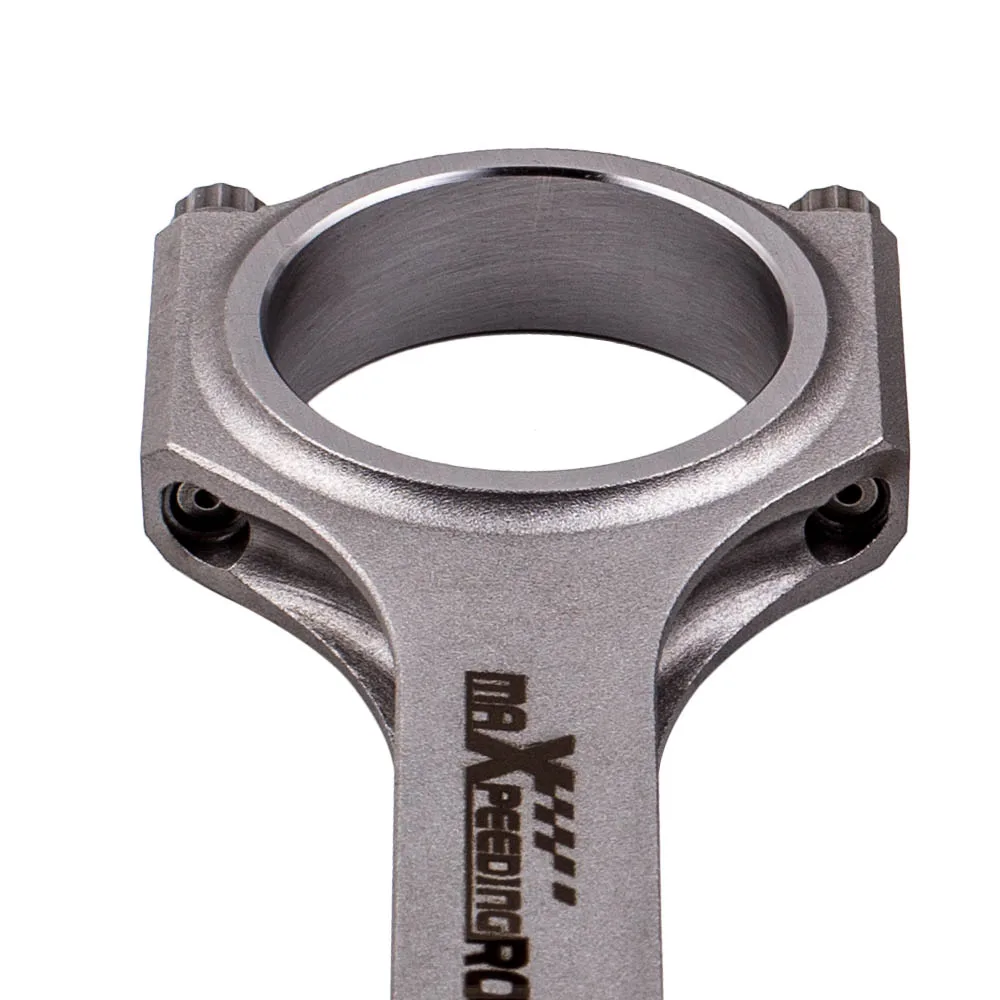

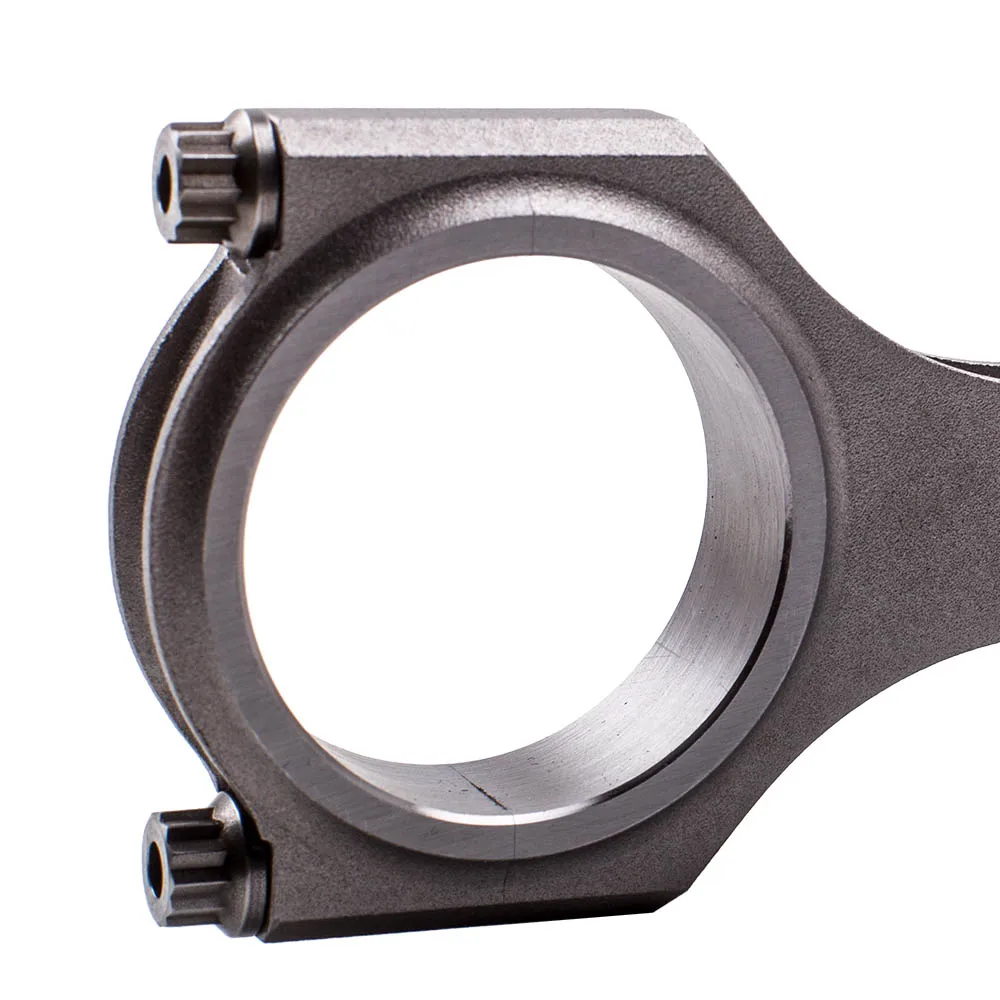

Big end diameter: 50.6mm/1.992"

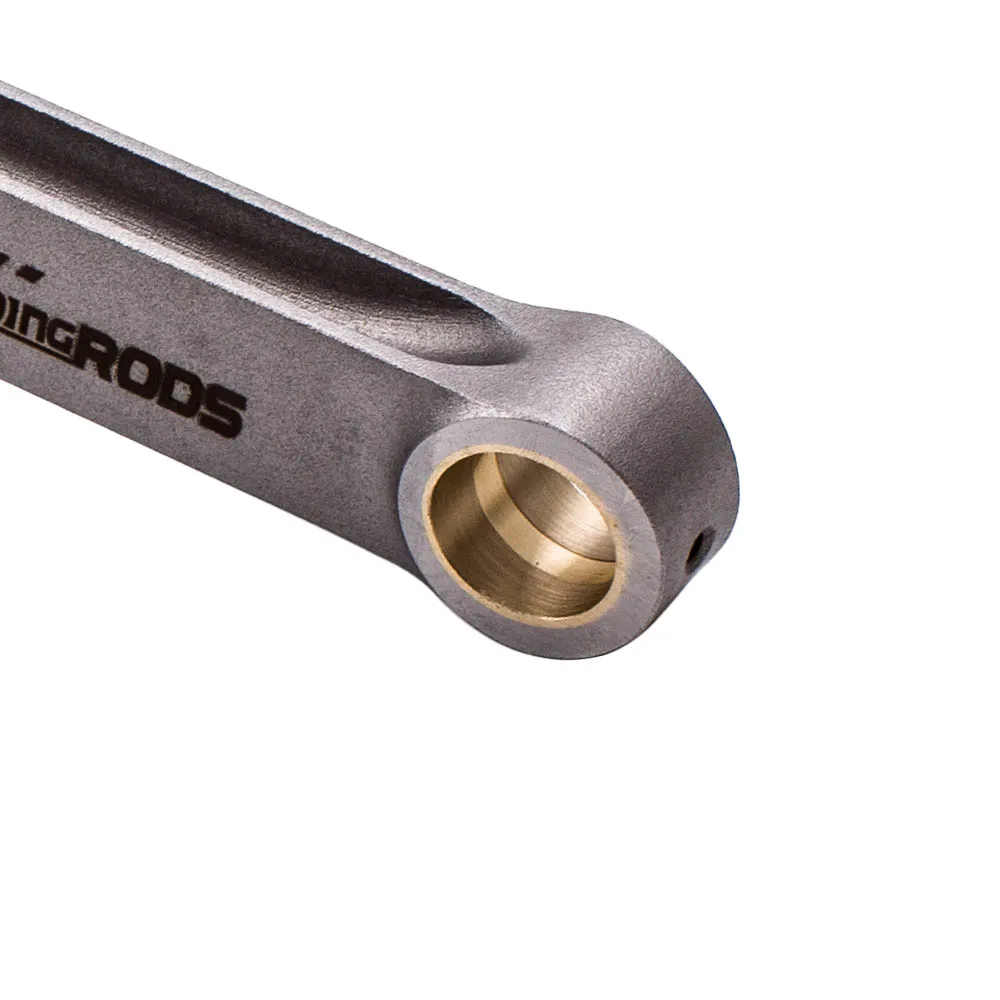

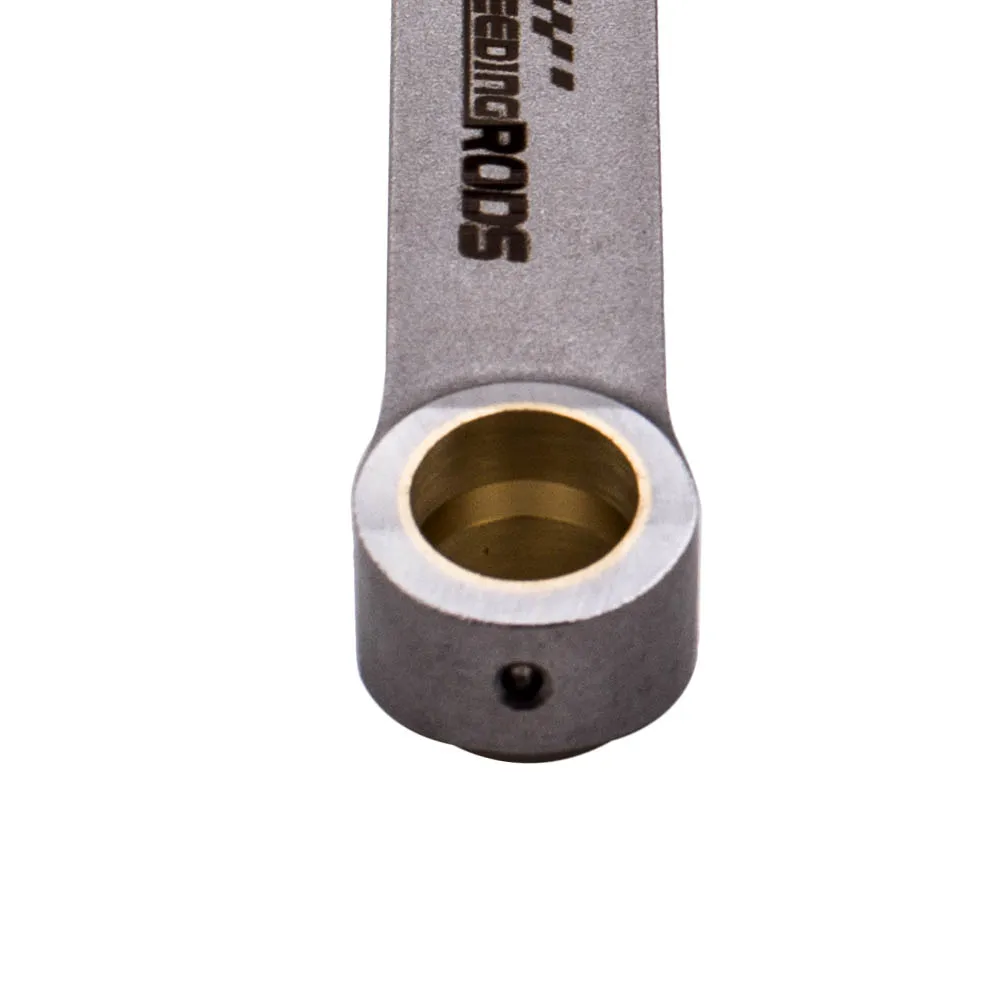

Small end diameter: 19mm /0.748"( tapered small end)

Big end width: 19.9mm /0.784"

Small end width: 19.9mm/0.784"

The big end bores are honed to a +/-.0004 in tolerance

Feature:

1.TüVCertification Con Rods；

2. Material: Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing；

3. Genuine ARP5/16" 2000 bolts ,Optional ARP L19 fasteners available as an upgrade；(The connecting rods all include ARP 2000 bolts, which are rated at 220,000 psi, and the optional ARP L19 material at 260,000 psi is available as an upgraded product.)

4. H-Beam design reduces weight without compromising strength；

5.Heat-treating & Shot-peened for remained consistent and strong. Shot-peened finish to remove potential for stress risers；

6.100% CNC machined,Precision rod cap alignment dowels ；

7.Bores finished to +/- .01 mm；

8.Balanced to within +/- 1 g per rod；

9. Each rod is magnetic particle tested to ensure free of flaws；

10.100% X-rayed, sonic tested；

11. There are titanium-plated upgrade models/non-bolt convenient models for selection;

12. Support customization.

Note:

①The small end has a taper, please check the size carefully

②The tapered beam allows for some weight saving on the reciprocation end and gives increased clearance for fully boxed pistons.

* Professional installation is highly recommended (No Instruction Included)
* For any needs please contact us
