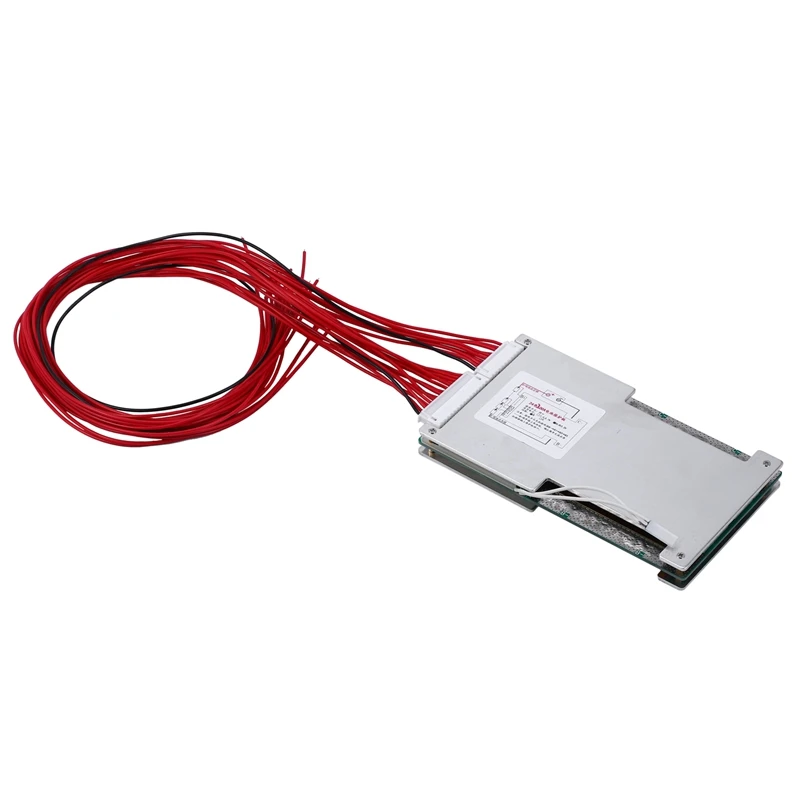

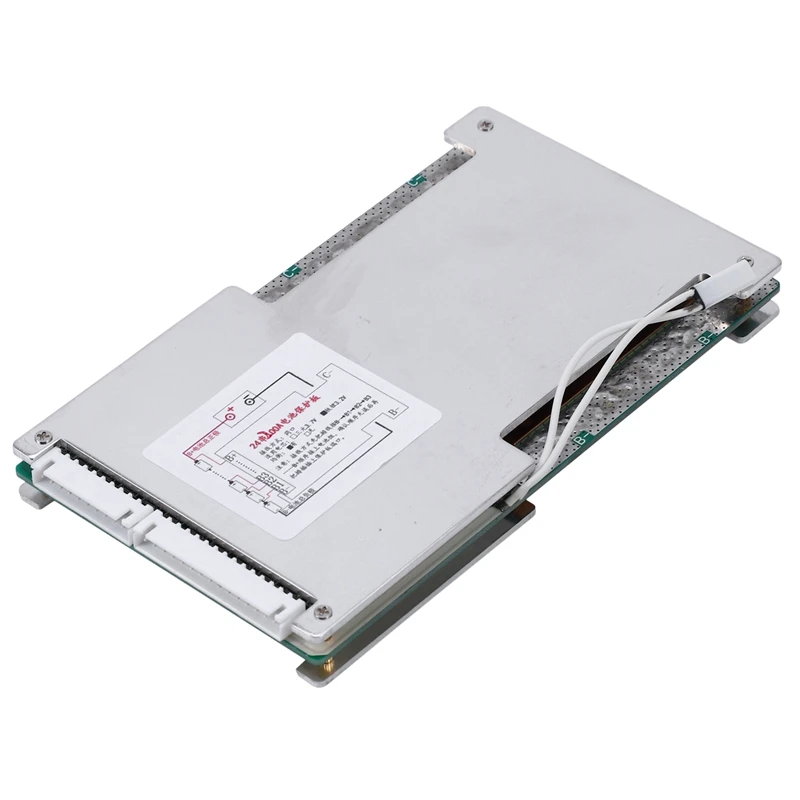

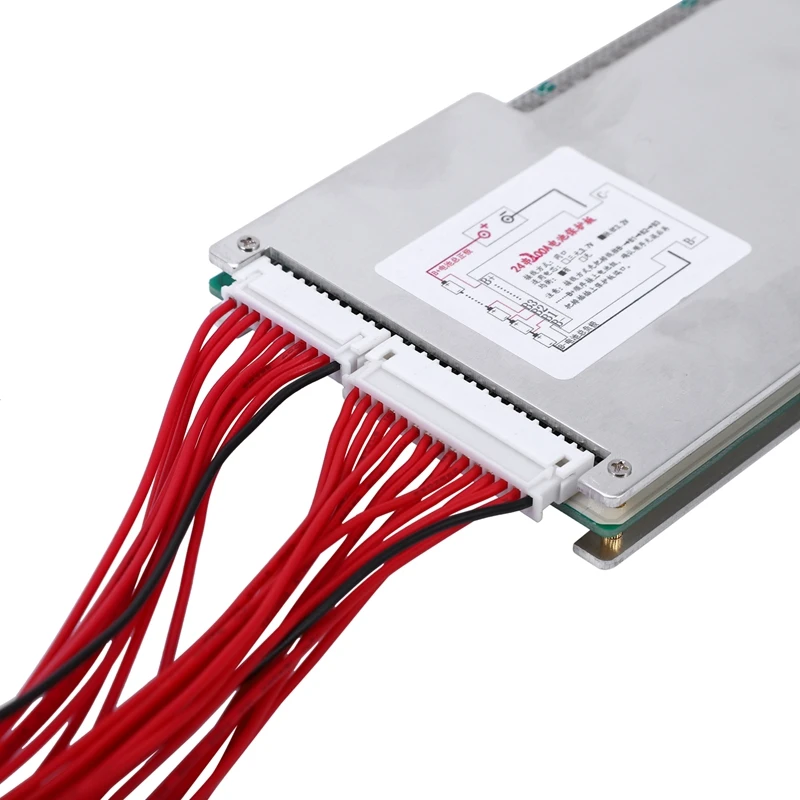

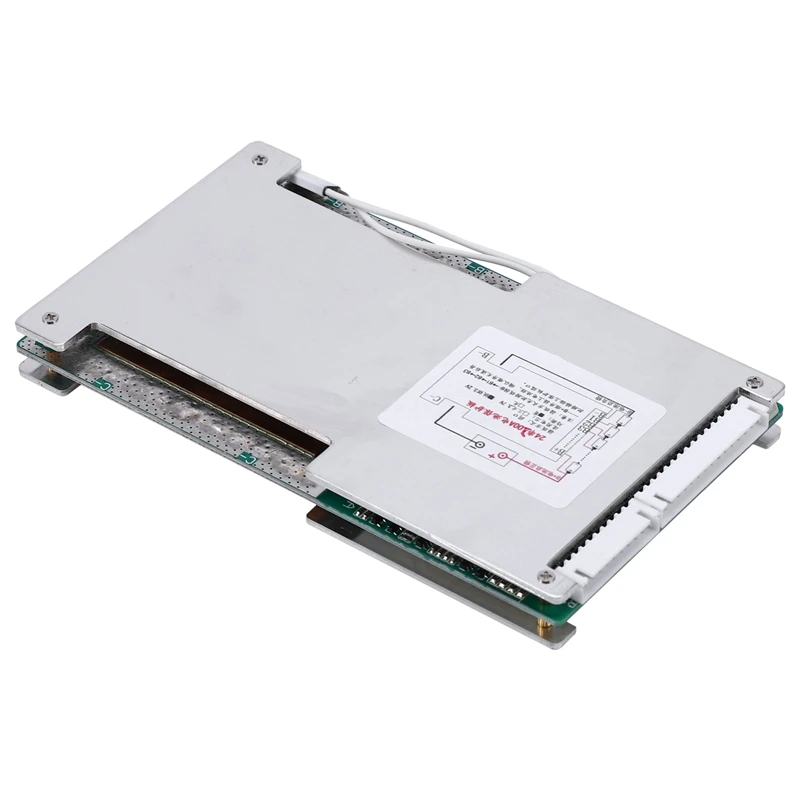

    24S 72V 200A LiFePo4 Battery Protection Board BMS PCB with Balance for Motorcycle E-Bike EScooter



    24 string 72V LiFePo4 battery protection board
    With Temperature protection and Heatsink
    4-24 string universal, can be directly downgraded
    Scope of application: 18650 special LiFePo4 battery protection board, scooter, drift car protection board, solar street light, LED protection board, motorcycle lithium battery protection board, tricycle power protection board, backup power lithium battery protection board
    Continuous Discharge Current: 100A
    Instantaneous discharge current:400A
    Charging voltage: 87.6V
    Maximum charging current: 100A
    Overcharge detection voltage: 3.65±0.025V
    Overcharge protection delay: 1000ms
    Battery balance detection voltage: 3.4±0.025V
    Battery balance release voltage: 3.4±0.05V
    Overdischarge detection voltage: 2.35±0.08V
    Overdischarge detection delay: 1000ms
    Overdischarge release voltage: 2.55±0.1V
    Overcurrent protection current: 500±30A
    Overcurrent protection release condition: disconnect load
    Short circuit protection condition: external load short circuit
    Short circuit detection delay: 2000uS
    Short circuit protection release condition: disconnect load
    Temperature protection: Charging 50°C/discharge 70°C
    Main circuit conduction internal resistance: less than equal 15mΩ
    Working current: less than equal 60uA
    Sleep current (when the battery is over-discharged): less than equal 10uA
    Temperature range: -20/+80°C
    Size:145*84*20mm
    Material:Metal + PCB
    Colour:Silver + green
    Package Contents:
    1 * protective plate,

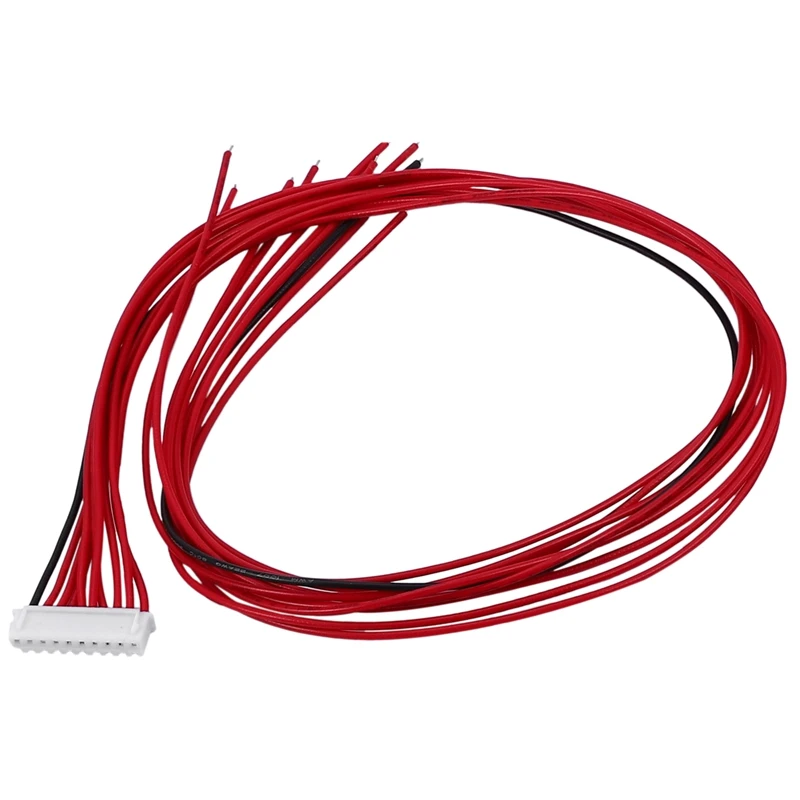

    1 * set of terminal lines
    Only the above package content, other products are not included.
    Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
