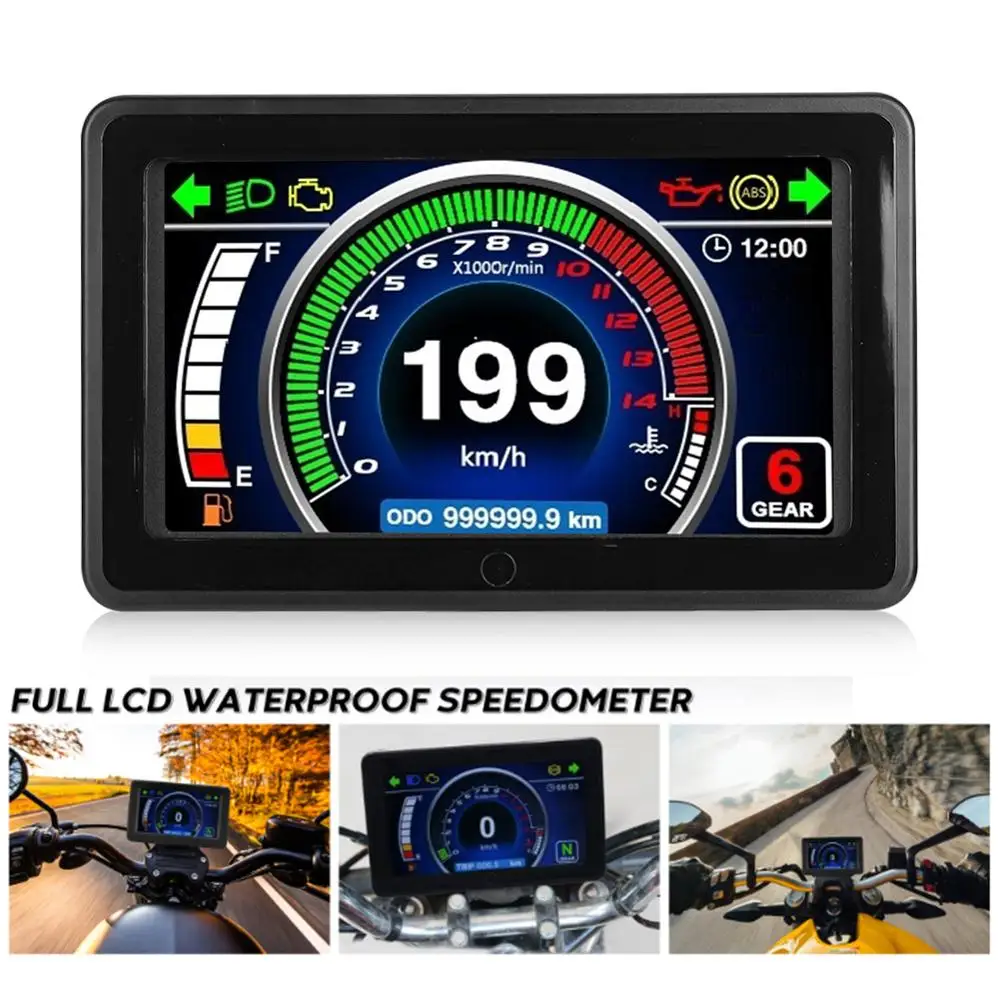

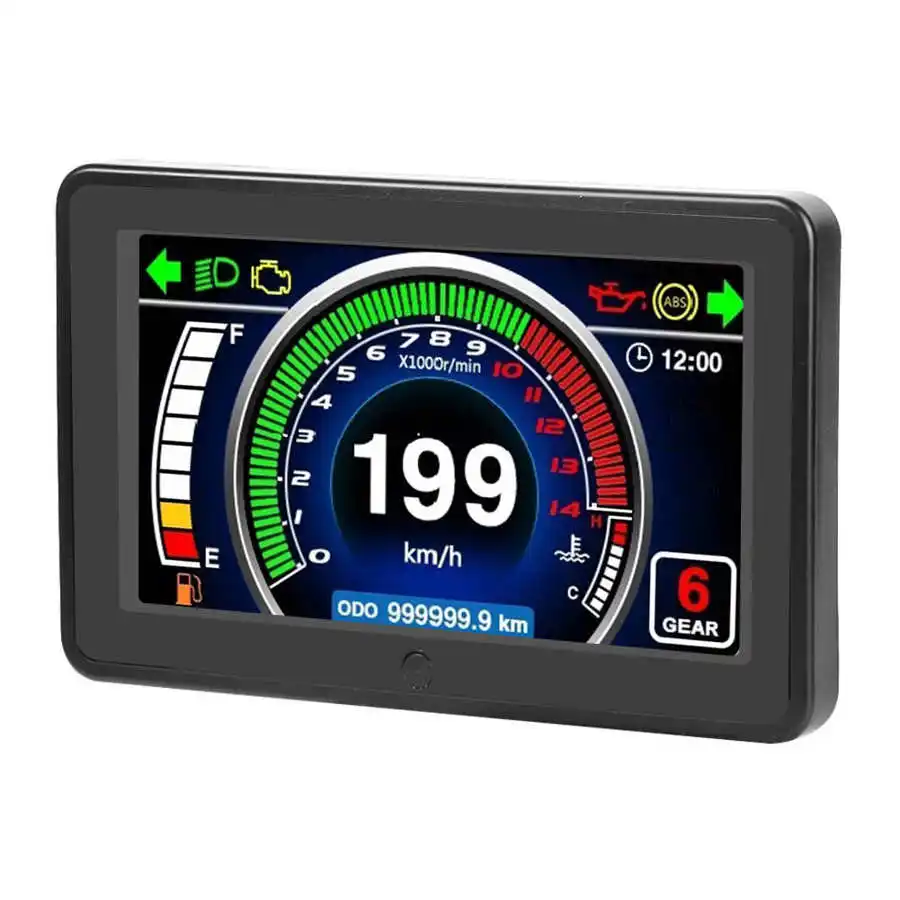

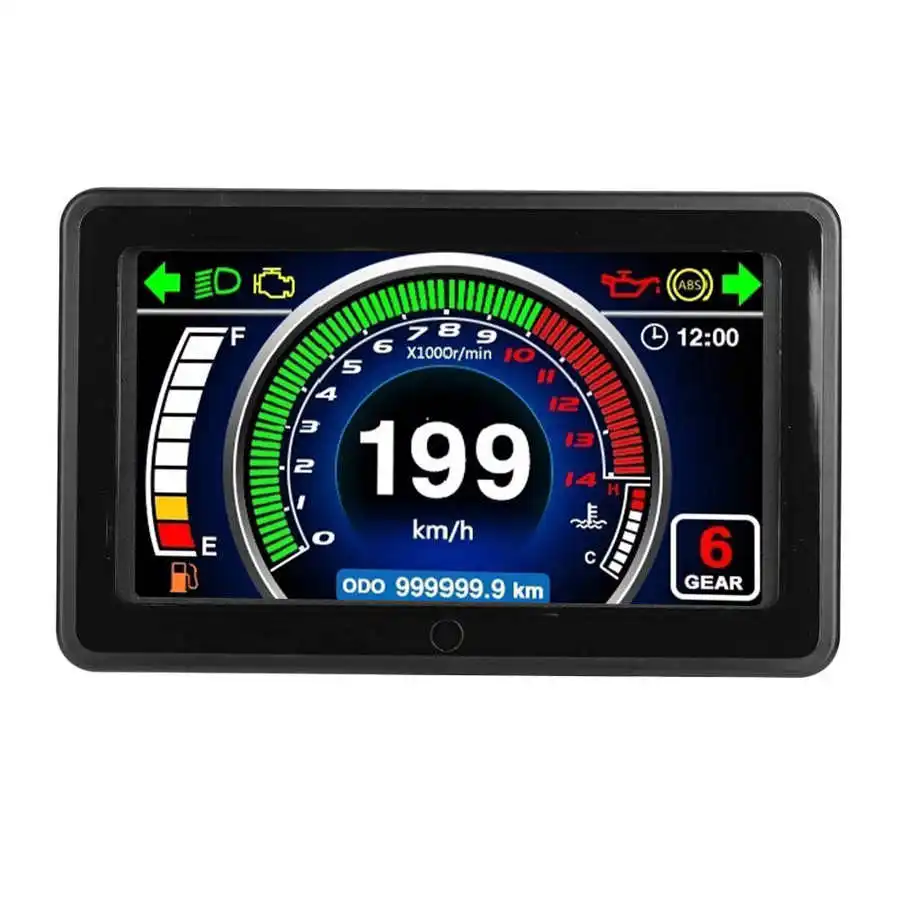

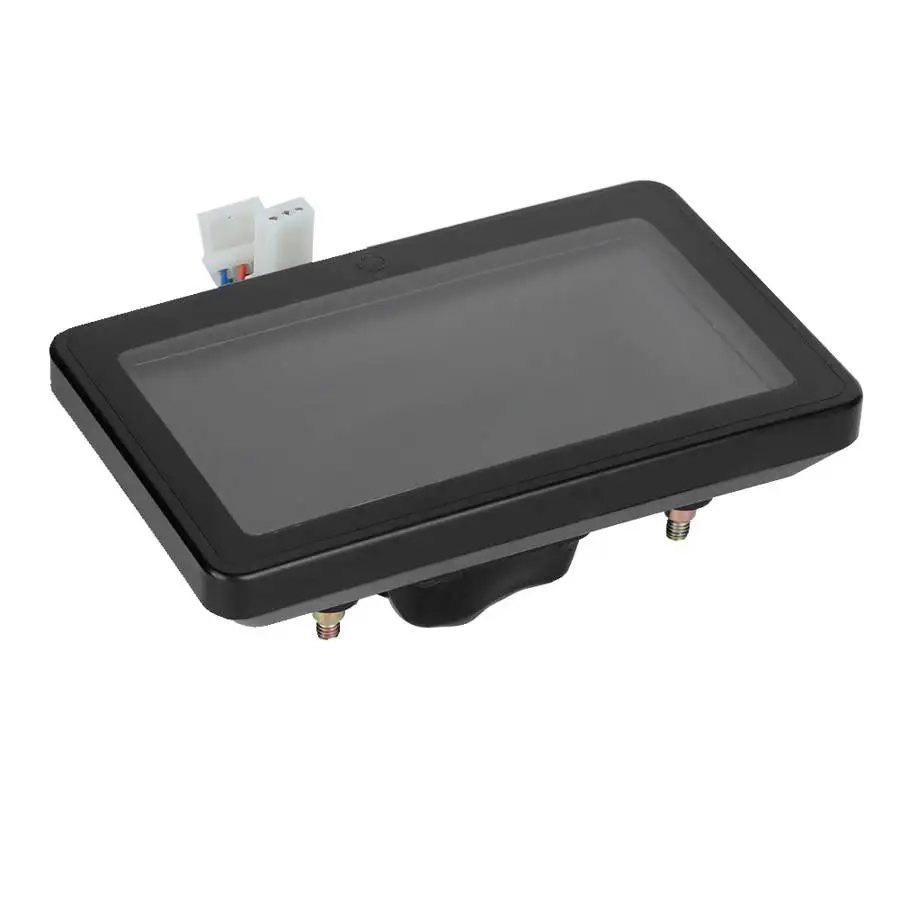

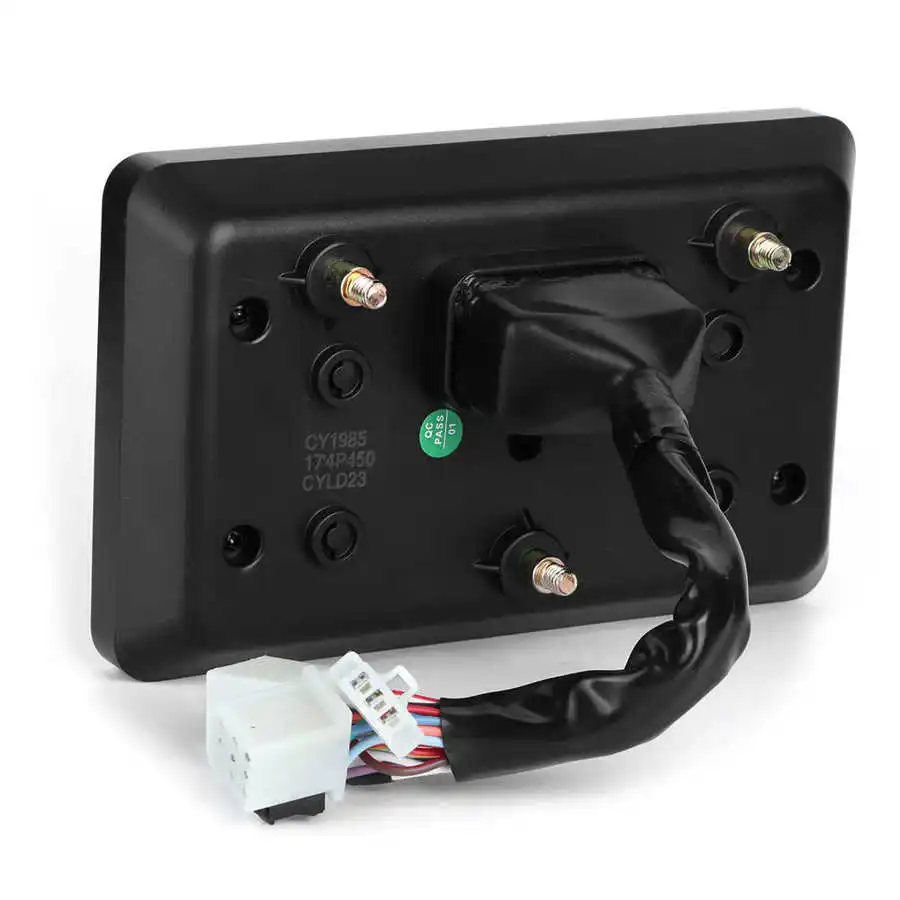

Digital LCD Display Instrument Speedometer Odometer Tachometer Fit for 1/2/4 Cylinder Motorcycle

Feature:

1. Manufactured from premium ABS materials for a long service life and stable performance.
2. Full LCD screen, clearly visible in all cases, even when driving at night.
3. With good sealing performance and high water resistance, the motorcycle LCD display is protected from weather effects.
4. The product has a touch button that can be used to toggle custom functions.
5. Unique design, reasonable structure bring you better using feeling.

Specification:

Conditon: 100% Brand New
Item Type: Motorcycle LCD Meter
Material: ABS
Color: As Pictures Shown

Voltage: 12V

Fitment:

Fit for 1/2/4 cylinder motorcycle

Instruction:

1.Speed Indicator: Indicating range is 0-14 x 1000r/min, calibration resolution is 250 rpm. 166Hz indication 10x1000r/min

2.Vehicle speed display: indication range is 0-199 km/h, 0-124 mph, resolution is 1 km/h (mph). Vehicle speed tyre model 110/70/17, four pulse signals in one circle, 36.2Hz indicating 63km/h
3.Total mileage: Indicative range: 00000-99999 km, 00000-62138 mile, resolution 1 km (mile)
4.Minor mileage: Indicative range: 000.0-999.9 km, 000.0-621.3 mile.
5.Fuel: Indicative range 8 grids, resolution 1 grids.
6.Water temperature: Indicative range 8 grids, resolution 1 grids. This meter has two water temperature parameters, which need to be brushed with corresponding software.
7.Gear display: display range 1, 2, 3, 4, 5, 6, N.
8.Clock: display range 0:00-23:59, resolution 1:1. Key function: 1 touch key
a)Short click, total ODO and total TRIP switching
b)Within 4 seconds after opening the normal display interface of the switch, press 3 seconds in ODO state and switch metric km to British mile.
c)Four seconds after opening the normal display interface of the switch, in the total ODO interface, press 3 seconds long to enter the clock settings, clock hour bit red display, short press plus 1, long press 3 seconds to switch to sub-bit red display, short press plus 1, and long press 3 seconds to save and exit.
d)When calculating TRIP interface, press the key for 3 seconds long and clear the subtotal.
e)The total mileage is 1,000 km (621.3 mile) when the oil lamp lights up, press the button for 3 seconds, and the oil lamp goes out. Enter the next round of counting at the same time.

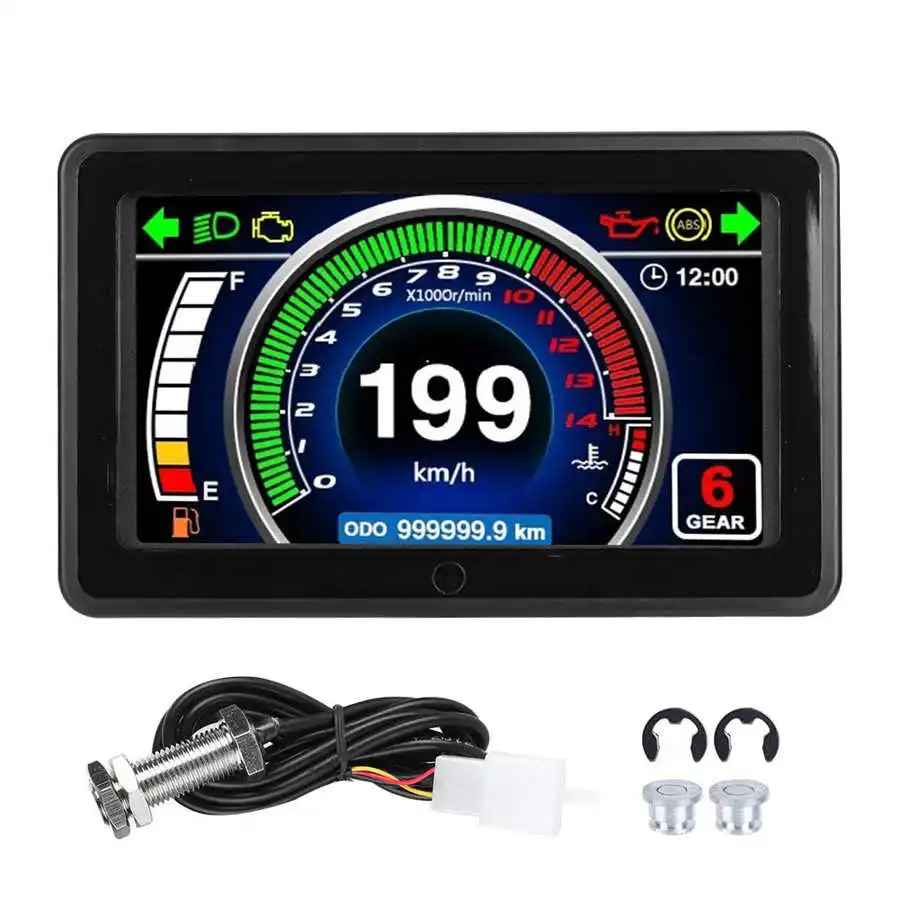

Package List:

1 x Motorcycle Instrument Meter1 x Sensor4 x Installation Accessories
