Features:

1.This amplifier has a wide frequency range:gain stability, low noise figure, dynamic range .
2.Increase the communication distance:Advantage, especially for a variety of RF receiver front-end circuit, increase the communication distance!
3.Widely used in shortwave: FM radio, remote control receiver, cable TV signal amplifier, Beidou, GPS satellite navigation, 2.4G Bluetooth, WIFI receiver RF front end need low noise small signal radio frequency amplification place.
4.The board layout is reasonable: beautiful, little current.
5.It's low in properties :can be a perfect various circuits as ideal amplifier buffer amplifiers.

Descriptions:

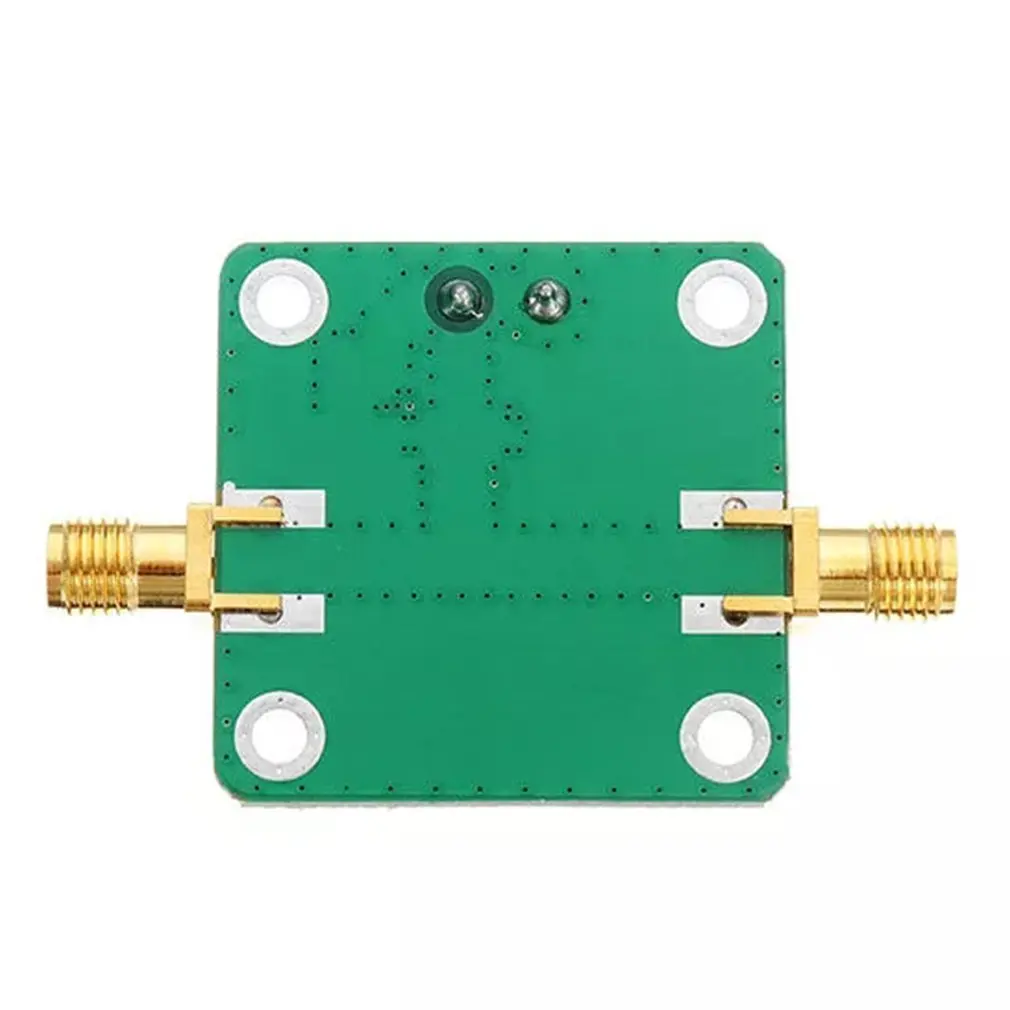

1.This is a 10 - 6000MHz   RF Radio Frequency Broadband Signal Amplifier Board.
2.Uses the high quality material, stable and reliable performance.

Specifications:

Color:Green
Frequency range: 10-6000MHz
Insertion loss: 0.3dB@512MHz 0.45dB@1575MHz
Large voltage: 50V
High current: 500mA
RF connector: SMA-K (outer screw inner hole)
System impedance: 50 ohms
Dimensions: 33mmx33mm without connector
DC: External DC power supply

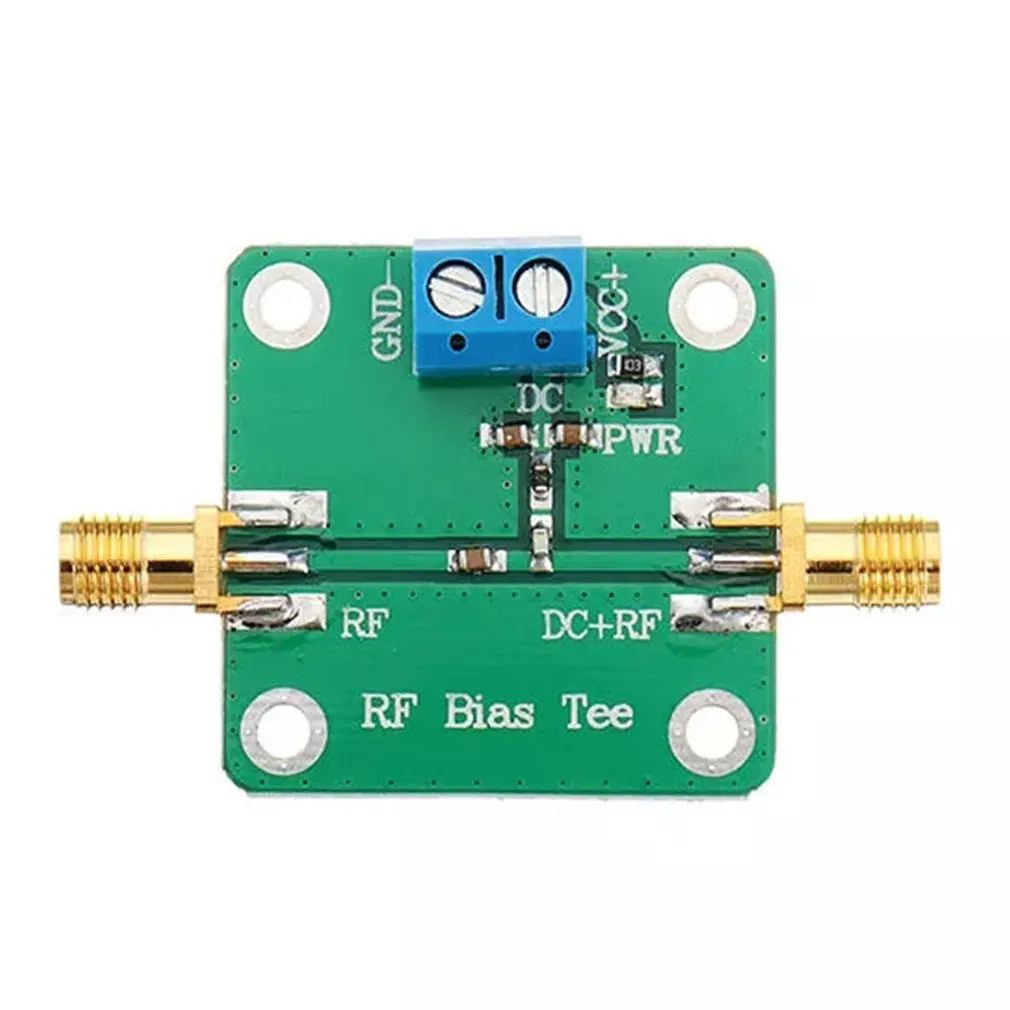

RF: RF signal terminal (this port can only transmit RF signals)
RF+DC: RF DC offset (this port can transmit RF and DC offset)
GND-: common ground terminal for DC power supply
VCC+: DC power supply terminal

Package included:
 1 x RF And Microwave DC Bias DC Feeder Module 10-6000MHz
