Product description

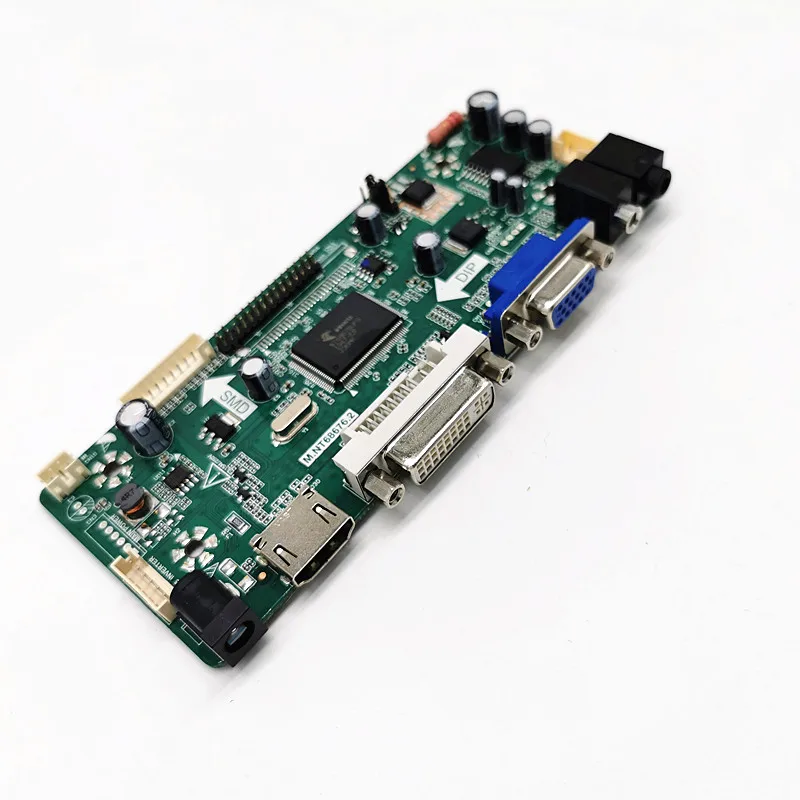

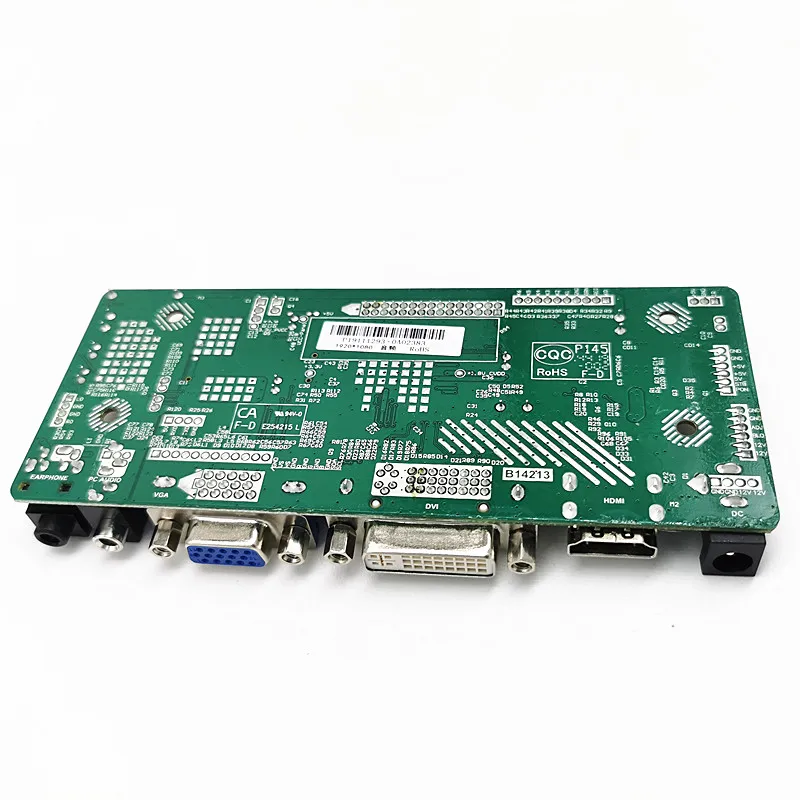

This is a great set of easy-reassembling LCD controller kit which is used to turn a bare LCD panel 22 inch LM220WE5-TLC1 1680*1050 into a desktop/PC monitor. It will be a surprise that your bare LCD will be of good use, and no longer be a waste. Or it is a very insteresting things that we make a monitor successfully by ourselves. Giving your lcd a new life with your fantastic idea. Necessary Accessories for turning a LCD to desktop monitor: LCD Controller board, Inverter, LVDS cable, Keypad, VGA cable, Power Adapter. If you have already had a VGA cable and a power adapter (12V,4A), Drive motherboard specifications: (main features) 1. Main chip NT68676UFG 2. Input HDMI VGA DVI 3. Supports speaker power up to 8 ohms 5W 4. Output Headphone output Support horizontal socket 5. Power Input DC 12V4A OSD menu; brightness, contrast, auto correction, phase, clock, line position, function settings, reset, etc.; OSD language Chinese, English, etc.

prompt

1.Please pay attention to the negative and positive pole. 2. when you connect power please don't hot plug, which may break the main IC 3.don't touch the driver board, and keep it insulation, don' let metal touch it. 4.please take care of the LVDS cable.

contenido del paquete

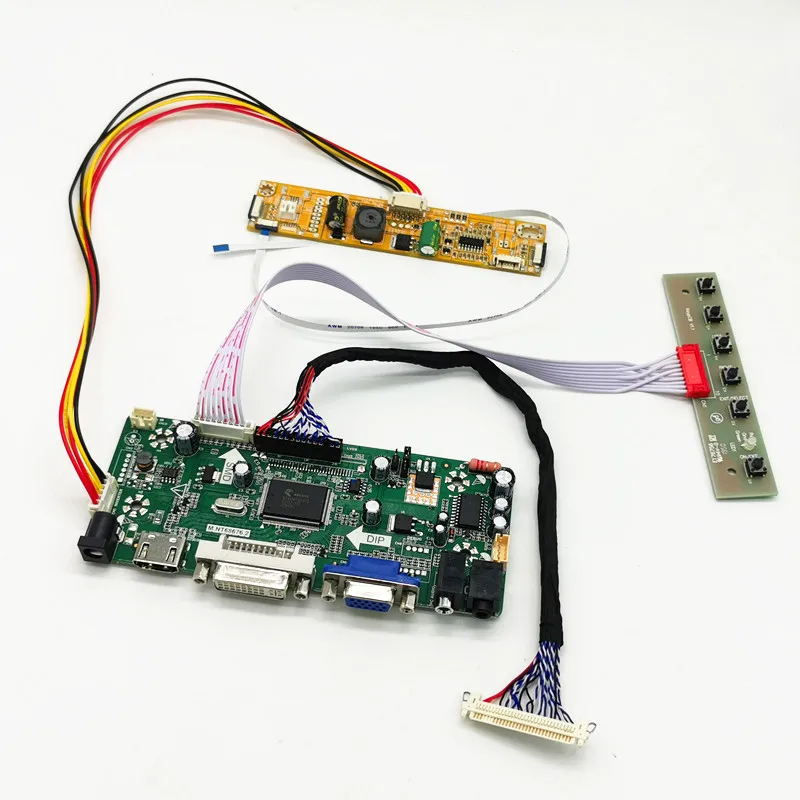

1xPCS LCD controller board 1xPCS LVDS cable 1xPCS keyboard and cable 1xPCS LED backlight drive and cable

The controller board size: 139 mmx58mmx17mm

Note:

1. If you are not specialized in operating electronic or have any questions, please contact our instruction, we cannot be responsible for wrong operation. 2. Connection is complete, please do not be eager to power! First, use the grounding of the multimeter to test the LCD controller is grounded. If not, please contact us again. If yes, please test whether there is a short circuit between the red line and black line an LVDS cable. If there is a short circuit, which means the opposite connection or other errors. Any questions, please feel free to contact us. DIY needs certain professional knowledge, please take the responsibility of the risk. Metal contact is not allowed on the controller driver board, or short circuit can occur, which may lead to controller is not available. Your satisfaction and positive feedback is very appreciate. Please leave positive feedback and 5 stars if you are satisfied with our items and services. If you have any problems with our items or services, please feel free to contact us first before you leave negative feedback. We will do our best to solve any problems and provide you with the best customer services.
