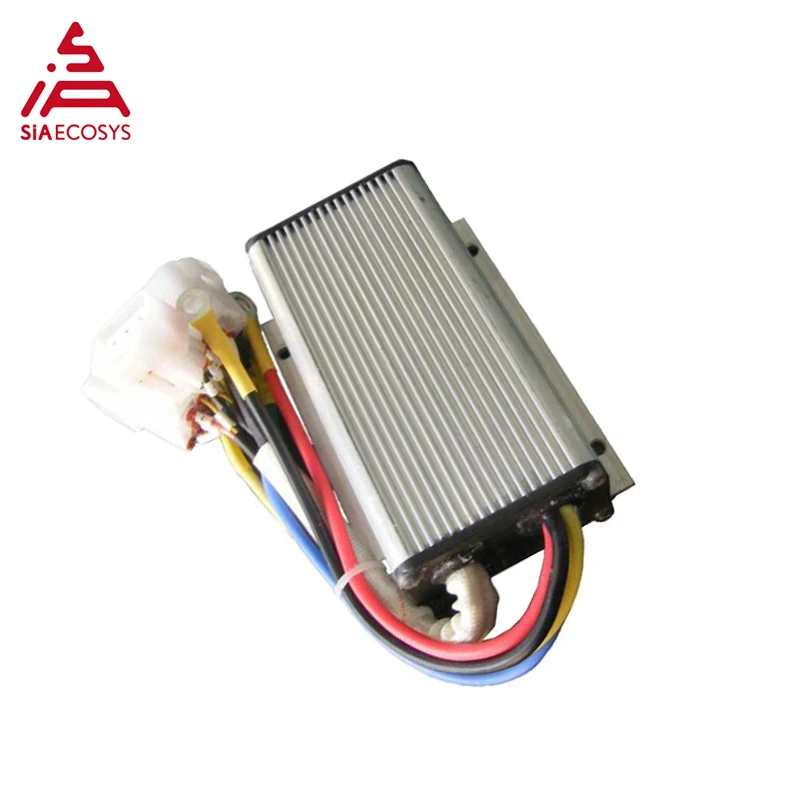

It's special design for QS brushless motor controller for Conversion Kits, which can match with QS HUB MOTOR Rated Power 1500W.

1). Very Easy connect

2). Can match with almost brushless DC motor

3). Soft start can be adjusted

4). Programmable by bluetooth

5). Warranty for mass order: If any quality issue for controller cannot drive the motor when received, we will send new one with your next order for replacement.

Products description

Genearlly Spec

1. Square wave controller, programmable, with regen function

2. Motor Current Limit, 20 seconds: 130A

3. Motor Current Limit, continuous: 55A

4. Thermic Probe: KTY83-122

5. Including one controller + USB convertor cable + matched plug

6. Controller size:  108mm*78mm*41mm

7. Net weight: 1.0kg

8. Waterproof IP54

9. Default not including bluetooth, waterproof(those function are optional); CAN BUS not support

Here are the clear and easy adjustment software interface.

Here is drawing of our normal QSKBS-X controller, 108mm*78mm*41mm

Pls. contact with sales first if you don't know how to connect the controller with motor and other parts.

1). If you want to buy the controller separately, please advise us the parameters of your matching motor?

Such as Motor Voltage, Wattage, Speed...

2). If you need any other special functions for this controller, please feel free to contact to us. Thank you!
