Welcome to our store.

Our products have affordable prices and good quality. We support dropshipping and wholesale. If you want to work with us for a long time, please contact us and we will give you a very favorable price.Best Regards!

Scope: Nominal voltage of 3.6V, 3.7V lithium battery (including 18650,26650, polymer lithium battery)
Charging voltage: 12.6V - 13.6V
Continuous discharge current (upper limit): 40A (if the cooling environment is not good, please reduce the load current use)
Continuous charge current (upper limit): 20A
Balance version: suitable for starting current below 80A, power 135W below the drill.
Now this 4S 40A balance version has upgrade to new !
1.increased anti-interference function,
2.reduce the large current heat by 30%,
3.starting power increased from 135W to 220W (4S40A)
Note 1: The successful start of the drill requires three 15C-20C power battery, or six 10C-15C power battery (ordinary 18650 can not start the drill!!).

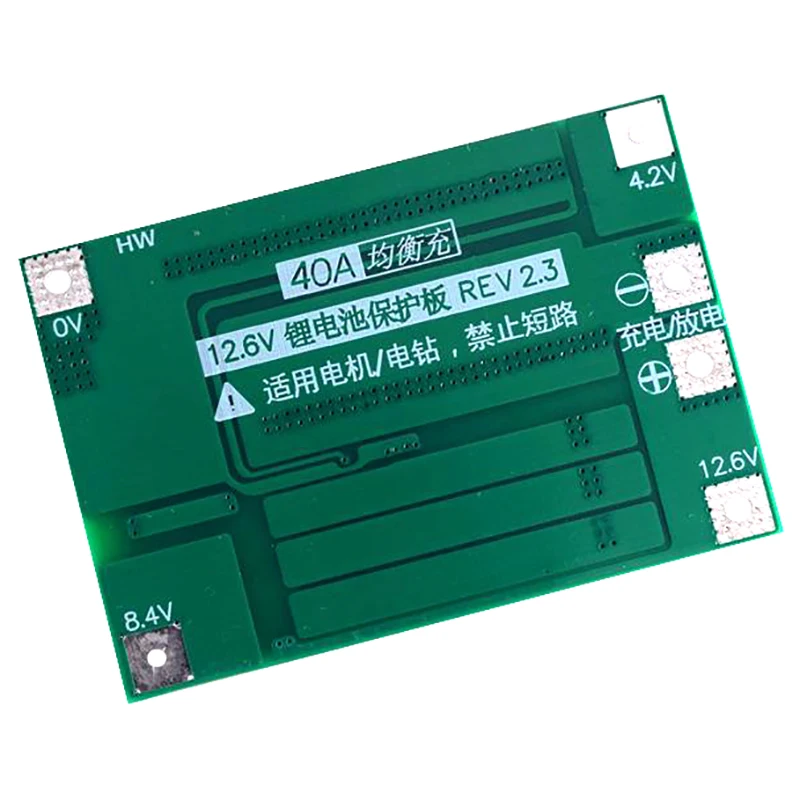

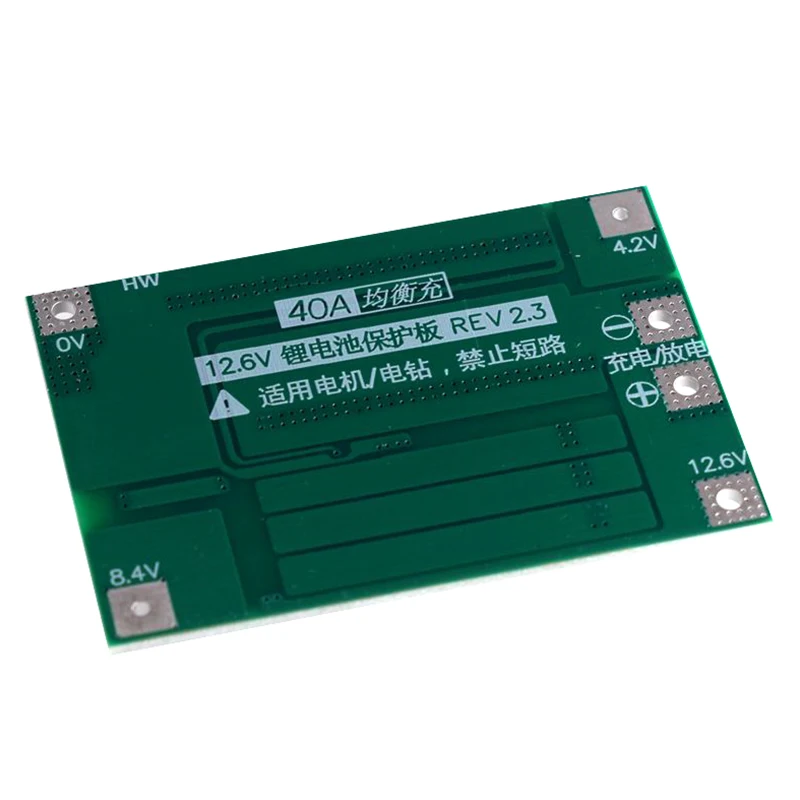

Note 2: strictly according to map wiring 0V, 4.2V, 8.4V, 12.6V, do not deliberately short circuit.
Note 3: When the load of the brush motor is used, try to connect a non-polar capacitor (withstand voltage above 25V, capacity 10uF-100uF) to the motor's positive and negative terminals to prevent the reverse spike from the motor. Break the MOS tube.
Note 4: 3 groups of batteries in series, please ensure that the voltage of each group of batteries, if not the same, please fill each battery separately and then use in series. The The Discharge test, the voltage drop faster battery that group is poor battery.
For some of the poor basis of electronic customers to explain: balanced charge is only auxiliary functions, try not to put a good battery and poor battery mixed together! 3 sets of battery capacity / resistance closer to the better! (2 good battery +1 Poor battery use effect = 3 poor battery use effect).
Color:Green + black
Material:Plastic + metal
Size:42 * 55 * 3.4mm
Package Contents:

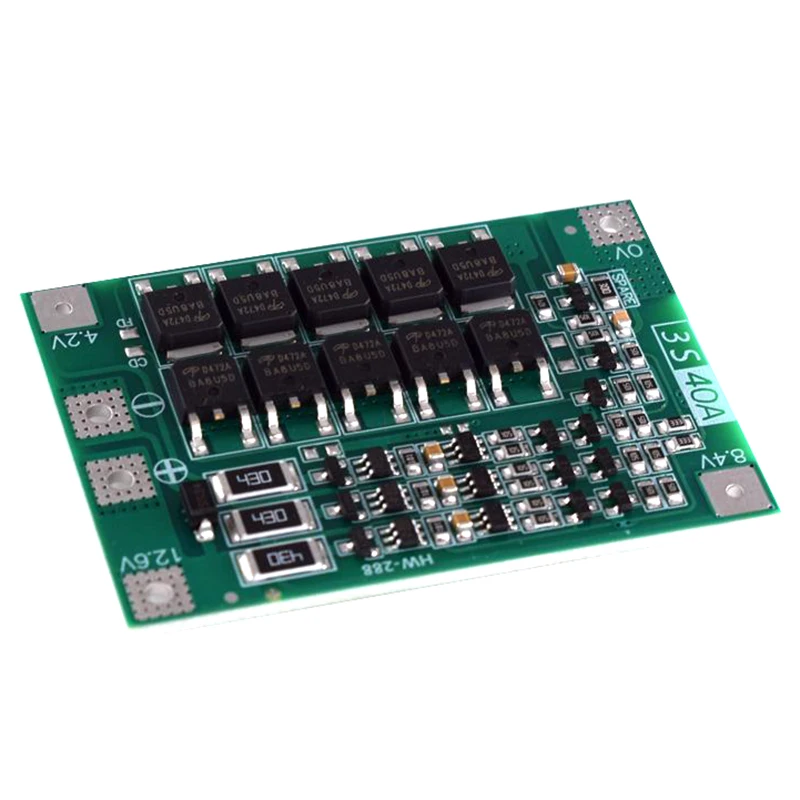

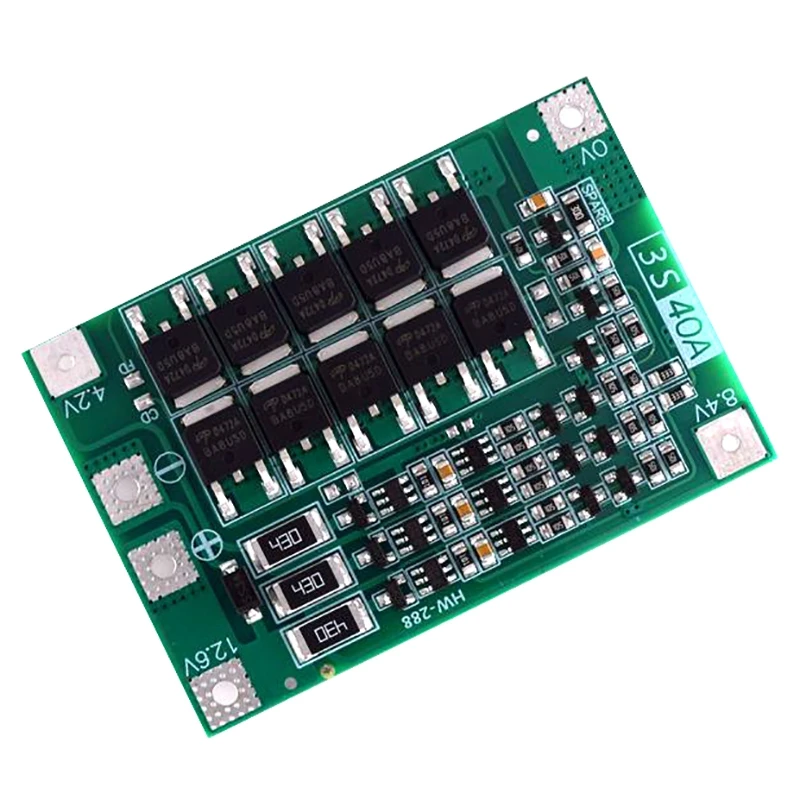

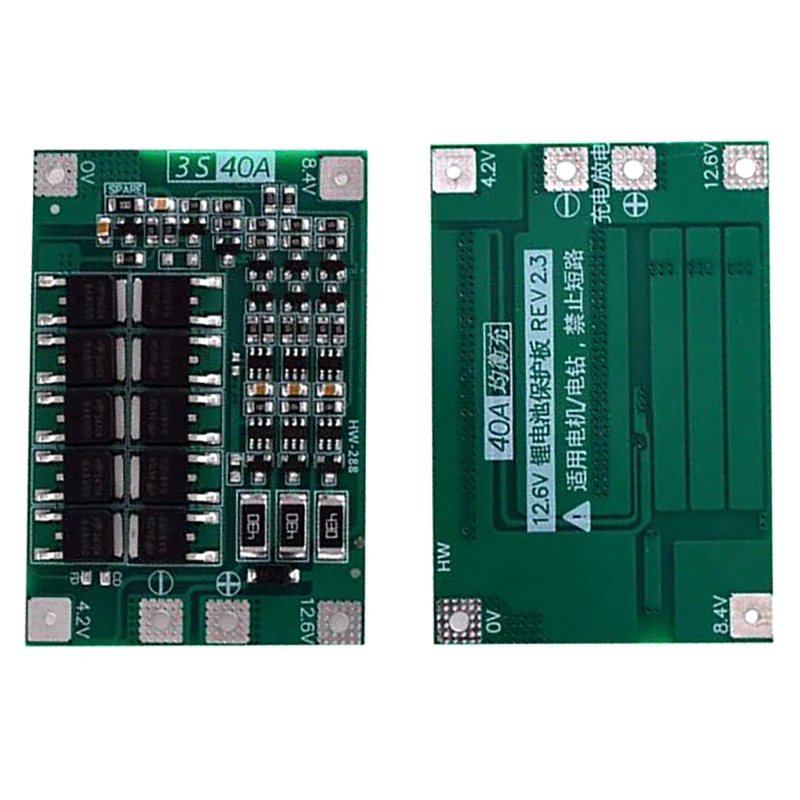

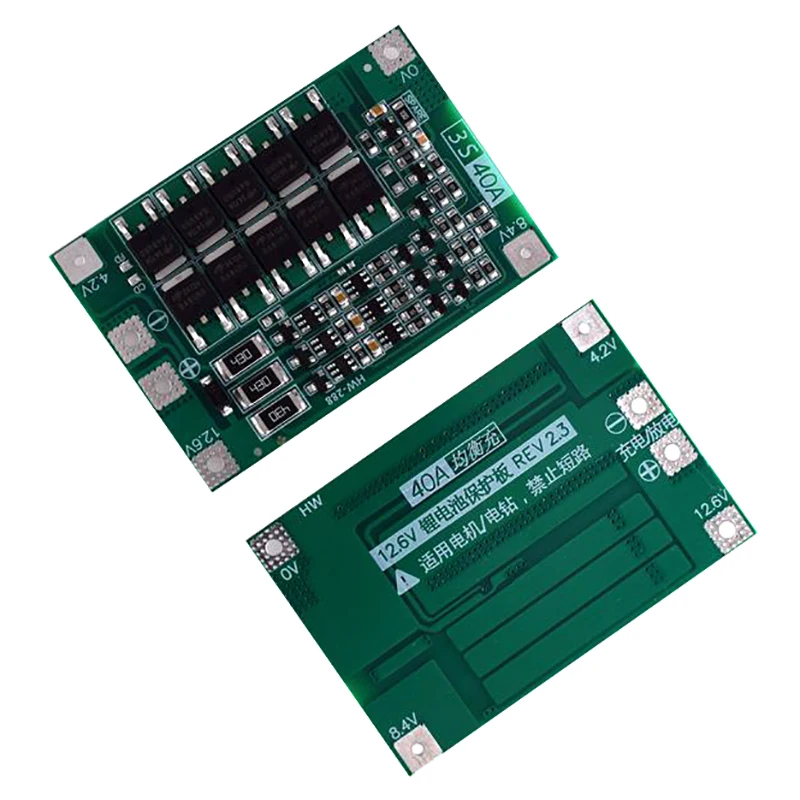

1* 3S 40A Lithium battery protection board
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
